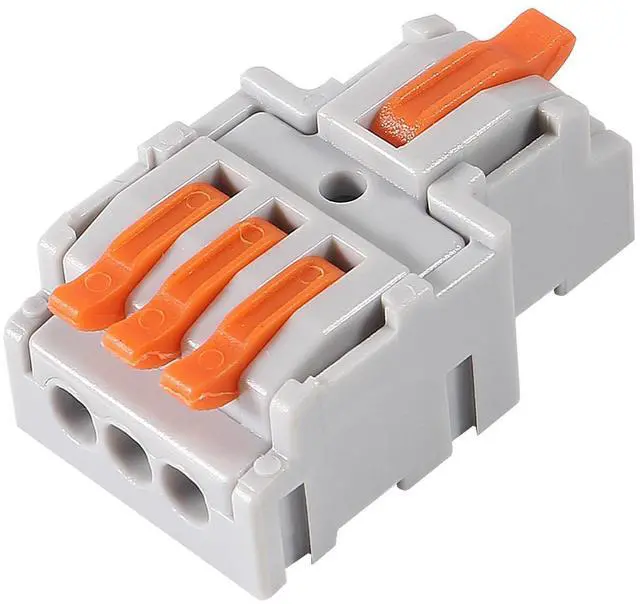

KEHIPI 10PCS Lever Wire ConnectorsLever Wire Connectors, Quick Wiring Cable Connector Push-in Conductor Terminal Block(1 in 3 Out)
- wire connectors can be used individually, perfect replacement for the traditional connectors PCT-212/213/214/215
- Compatibility: Easy operation, easy to insert. Electrical connector for joining braided and solid wire and wires of differing sizes. Suitable for wire size 0.2~4mm²/AWG24-12Imported stainless steel is used inside to lock the wires firmly without loosening, and because they can be reused, the wires can be disassembled or reconnected for multiple times.

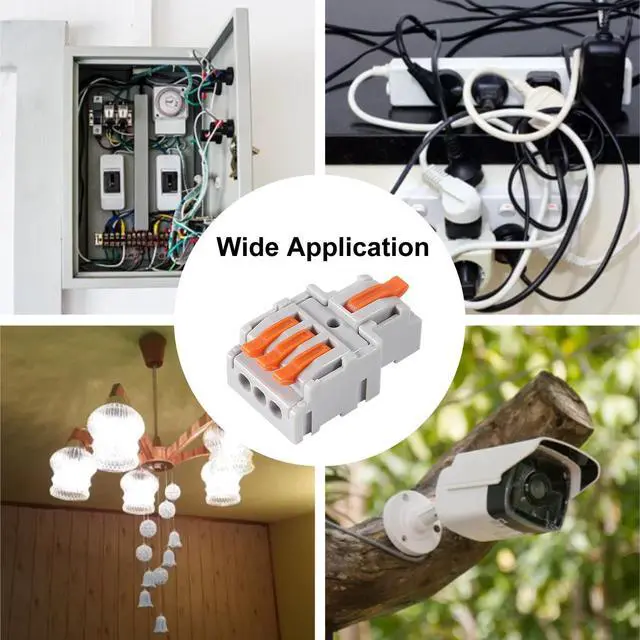

- Lever Wire Connectors, Quick Wiring Cable Connector Push-in Conductor Terminal Block Can be used for motor, electrical control, power supply, home appliance, lighting, machinery and other wire connection parts
- Lever Wire Connectors, Compact Splicing Wire Connector Push-in, 3 Port Electrical Connectors Assortment Kit, for Quick Connect 24-12 AWG
- 10Pcs Lever Wire Connectors, 1 in 3 Out DIY Mini Splice Compact Quick Electrical Connector, 24-12 AWG
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
AITRIP Lever Wire Connectors
Product Specifications
Rated Voltage: 250V/600V
Rated Current: 32A
Shell Material: Flame retardant PC
Internal material: Pure copper
Spring: Imported stainless steel

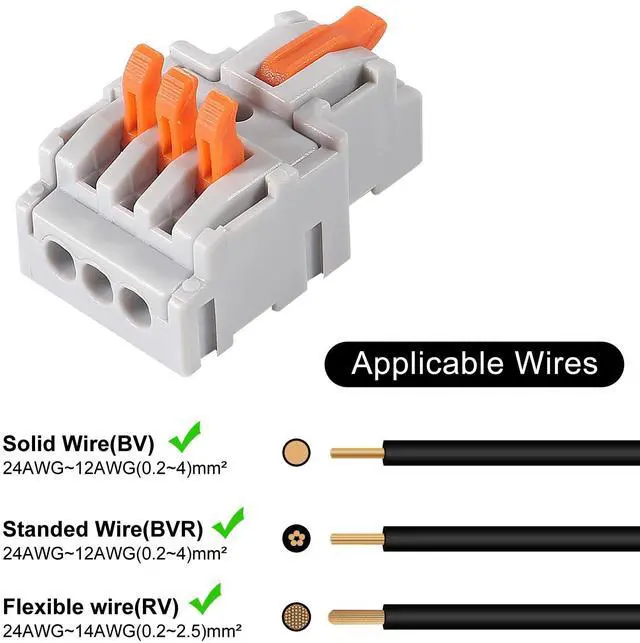

Solid Wires(BV): 0.2~4mm² (24-12AWG)
Stranded Wires(BVR): 0.2~2.5mm² (24-14AWG)
Flexible Wires(RV): 0.2~2.5mm² (24-14AWG)
Using
1Open the housing of wire to 0.39inch (10mm);
2Push the lever to 90° and insert the wire lead;
3Press the lever to close the clamp;
Package content: 10Pcs X (1 in 3 out) DIY Splicing Connectors.
