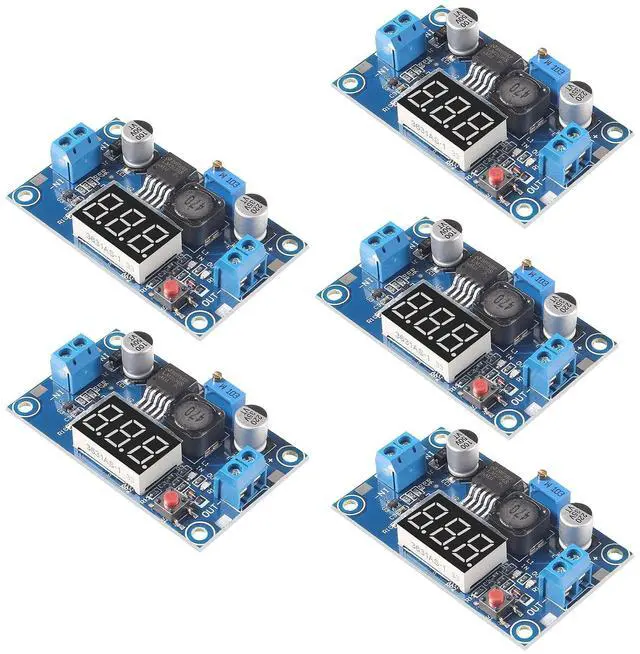

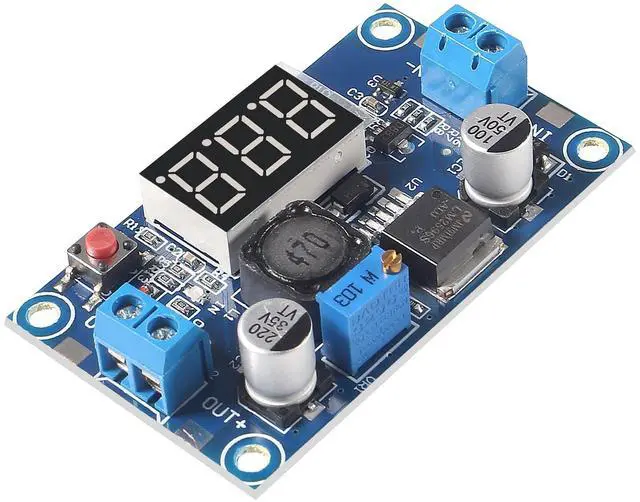

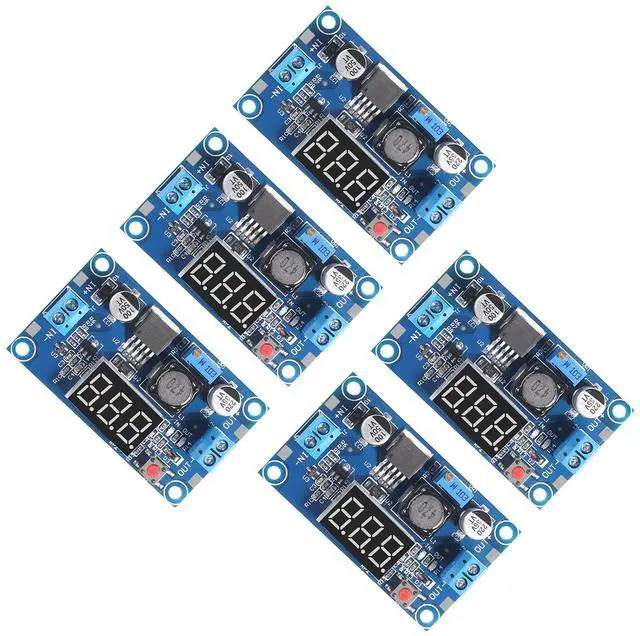

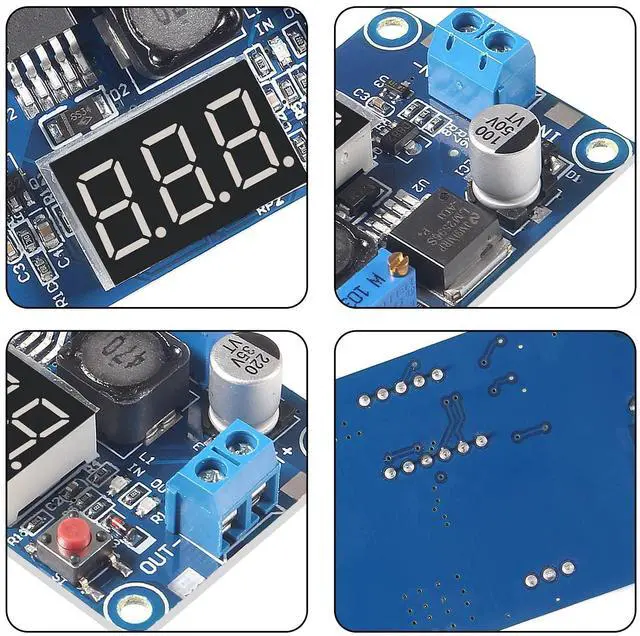

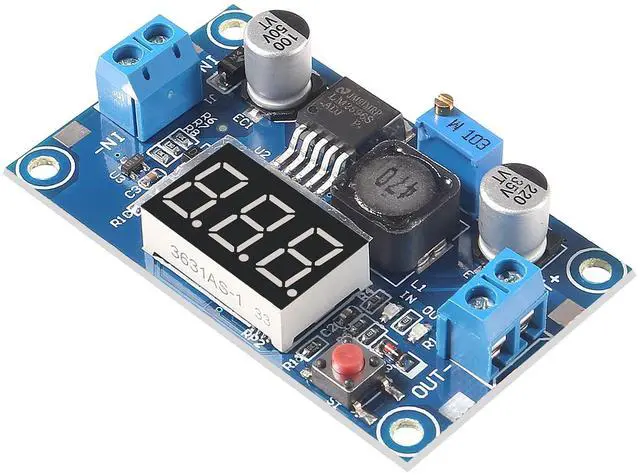

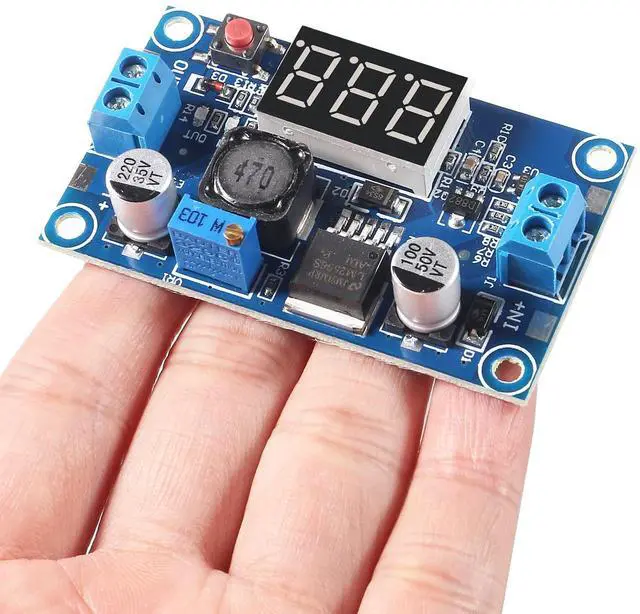

KEHIPI 5-Pack LM2596s Buck Converter DC to DC Step-Down Voltage Regulator Power Module 36V 24V 12V to 5V 2A Voltage Stabilizer with LED Display
- High conversion efficiency, on average 88% (efficiency and the input and output voltage, current, pressure related)
- Output current 3A, recommendations within 2.0A use, high current needed to enhance heat dissipation.
- This module can be applied to fields in the input voltage is higher than the step-down output voltage, such as batteries, power transformers, DIY adjustable power supply, 24V Car T of the power equipment industry buck, 12V switch 3.3V, 12V switch 5V, 24V switch 5V, 24V switch 12V, 36V 24V turn and so on.
- Input Voltage 4.5~ 40V. (Input voltage must be higher than the output voltage of 1.5v or more)
- Adjustable output voltage range of 1.25V ~ 37V continuously adjustable. (Input voltage must be higher than the output voltage of 1.5V)
- Output power 20W, 15W, please enhance heat dissipation over
- Fuction: Built in over-temperature protection function Built in current limit function Built in output short-circuit protection function
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications:
Model: LM2596 / Digital Tube Voltmeter
Input voltage: DC 4V - 40V
Output Voltage: DC 1.5V - 35V (adjustable)
Output Current: 3A (max.)
Conversion Efficiency: 92% (max.)
Switching Frequency : 150KHz
Operating Temperature: -45 to +85
Size: L x W x H =6.1*3.4*12 cm

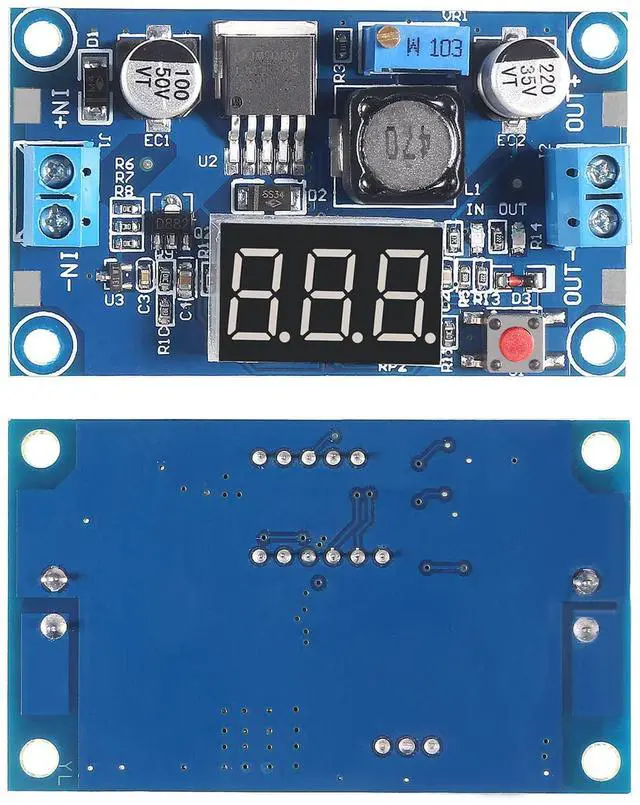

Wiring connection:
IN+: connect IN+ to your Input Positive
IN-: connect IN- to your Input Negative
Out+: connect OUT+ to your Output Positive
Out-: connect OUT- to your Output Negative
Package include:
5 x LM2596s buck converter DC to DC
