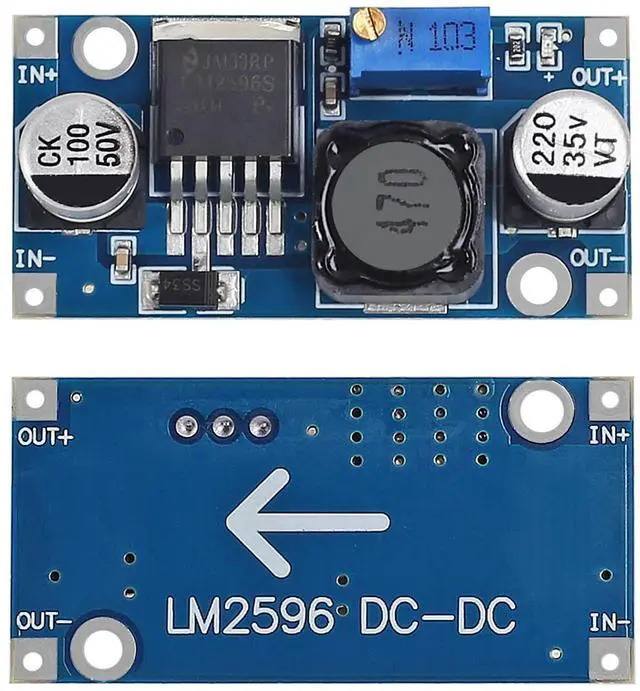

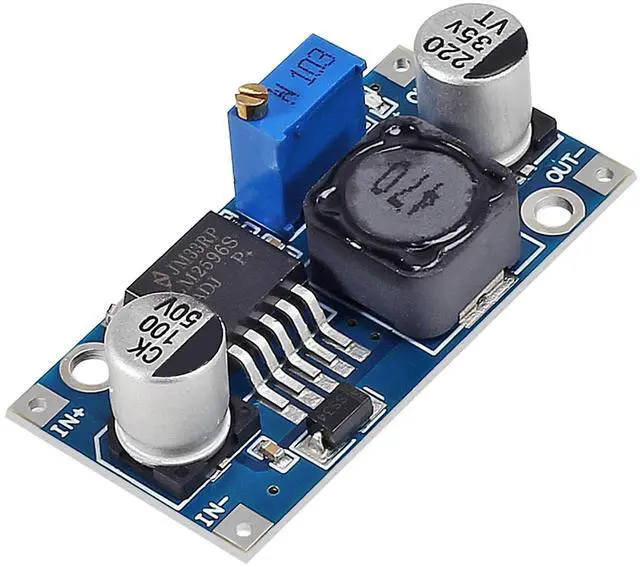

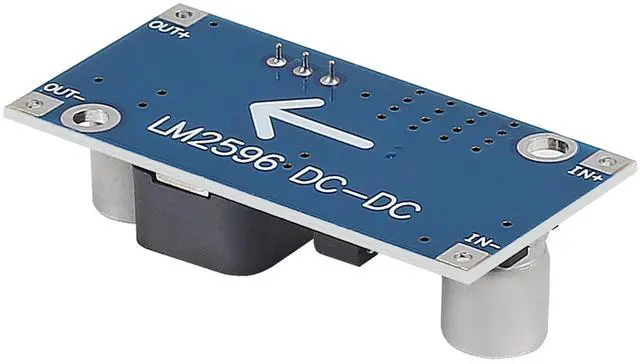

KEHIPI 20-Pack LM2596 LM2596S Buck Converter DC to DC Converter High Efficiency Voltage Regulator 3.0-40V to 1.5-35V DC-DC Buck Converter Step Down Module Power Supply
- Input Voltage Range DC 3V to 40V (The input voltage must be more than 1.5v higher than the output voltage. It cannot be boosted)
- Output Voltage Range DC 1.5V to 35V continuously adjustable voltage, high efficiency output current is 3A.

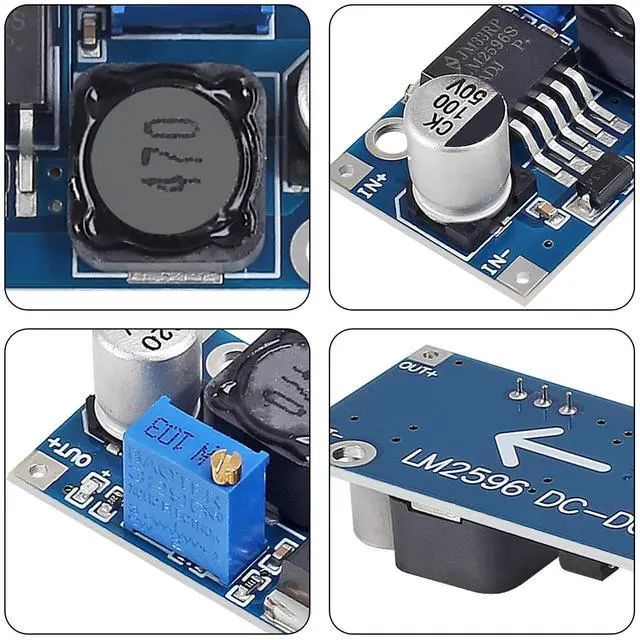

- All solid capacitors using SANYO36u thick circuit boardsHigh-Q inductors with high power output LED indicator
- Output with high power conversion efficiency up to 92%. Measured 12V input, 5V output current, 1A load regulation rate is less than 1%.
- 20 Pack LM2596 DC to DC High Efficiency Voltage Regulator 3.2-35V to 1.25-30V Buck Converter DIY Power Supply Step-Down Module for DIY
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
LM2596 LM2596S DC-DC Step Down Variable Volt Regulator Input 3.0-40V Output 1.5-35V Adjustable Buck Converter Electronic Voltage Stabilizer Power Supply Module
Kindly Note:

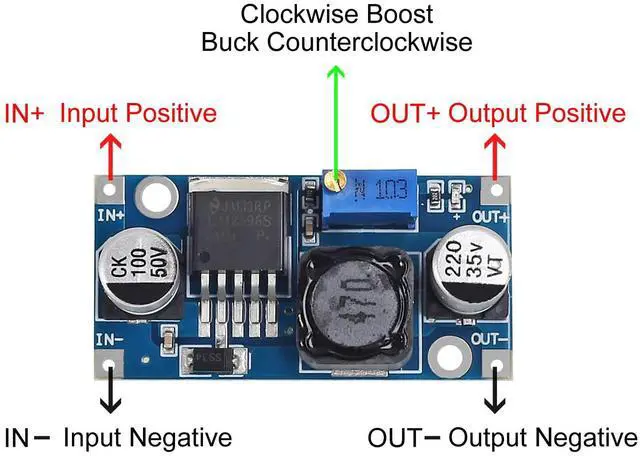

1. Input voltage must be 1.5 V higher than the output voltage, no boost
2. could you please dont reverse the input and output interface
3. Keep output under 2.5A and use a heat sink when for a long time working
Specifications:
Model: LM2596
Input voltage: DC 3V - 40V
Output Voltage: DC 1.5V - 35V (adjustable)
Output Current: 3A (max)
Conversion Efficiency: 92% (max)
Switching Frequency : 65KHz
Rectification: non-synchronous rectification
Module property: non-isolated buck module
Operating Temperature: -45 to +85
Load Regulation: ± 0.5%
Voltage Regulation: ± 2.5%
Package List:

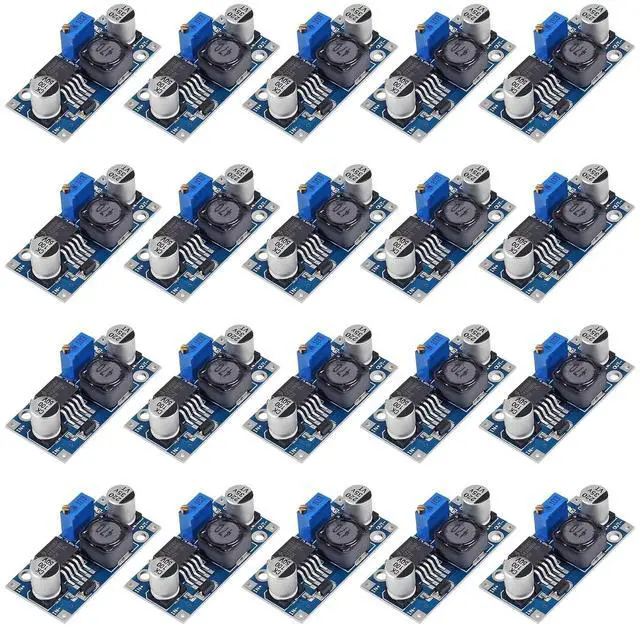

20 x LM2596 DC-DC Buck Converter Module.
