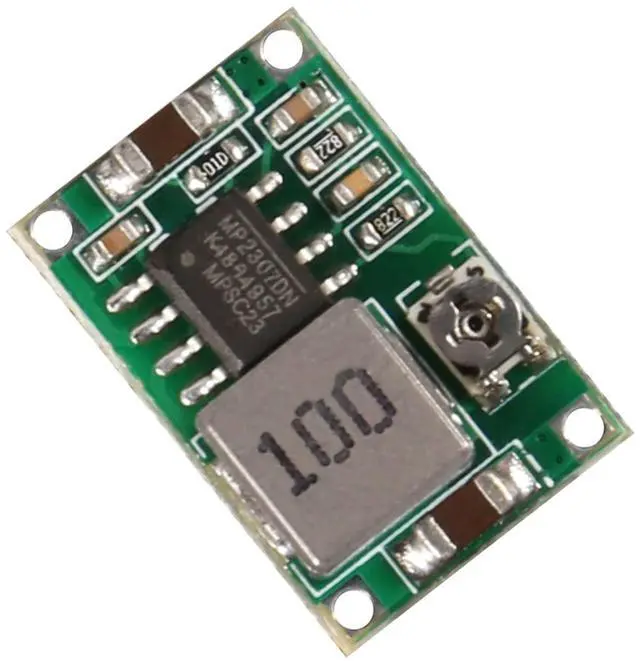

KEHIPI 20PCS Mini Reducer DC 4.75-23V 5V 12V Buck to 3.3V Buck Converter Board 1.8A Output Mini360 Small Size Power Module
- Input voltage: 4.75V-23V;Output voltage: 1.0V-17V
- Output Current: lowering the value of 3A, long 1.8A
- the size of these mini buck converter is 17.5 x 11.5 x 3.8 mm, the voltage range is DC- DC convert 4.75- 23 V to 1.0- 17 V; The output current can up to 3A, the no load current is 8mA, and the conversion efficiency up to 96 percent
- Conversion efficiency: 96% (maximum);Switching Frequency: 340KHz;Output ripple: 30mV (no-load)

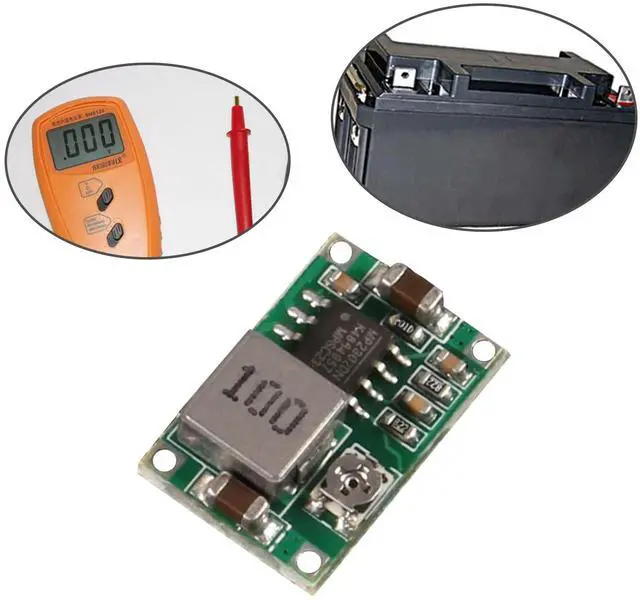

- Applied to DIY portable sourse, vehicle power supply, communication equipment power supply, aero model.etc
- Load regulation: ±0.5%;Voltage regulation: ±2.5%
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications:

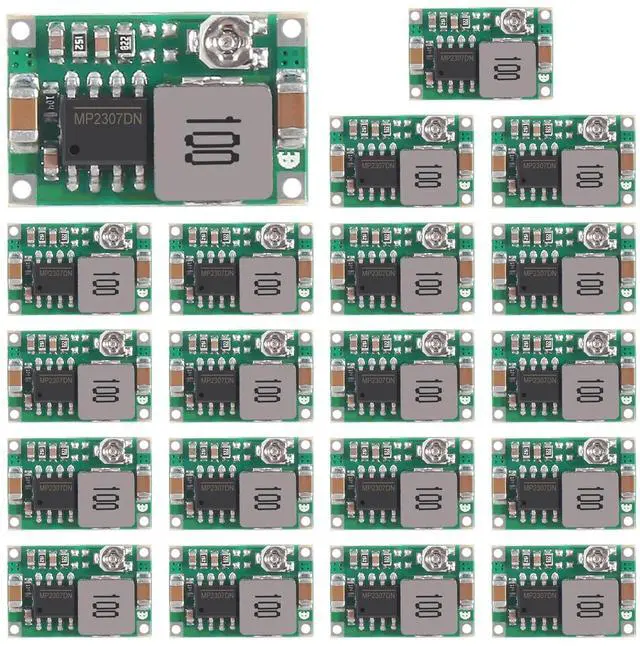

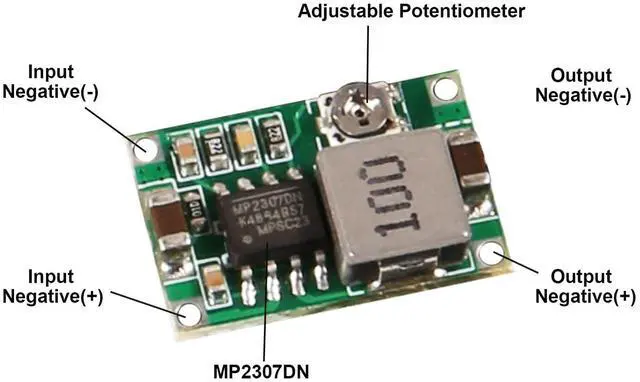

Model: MP2307DN
Nature: non-isolated decompression
Rectifier system: synchronous rectification
Input Range: 4.75- 23 V
Output Range: 1.0- 17 V
Input Current: 3 A
Operating temperature: -40 to 85 degree Centigrade
Output frequency: 30 mV (no load)

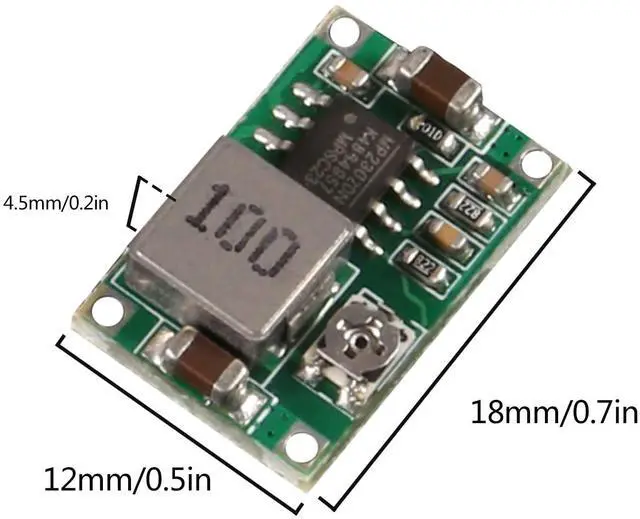

Size: approx. 18 x 12 x 4.5 mm
Package includes:

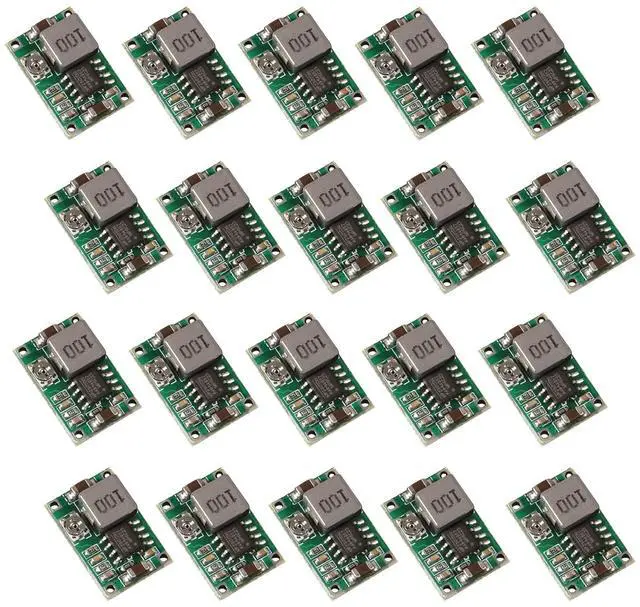

20 x Mini 360 buck converter
