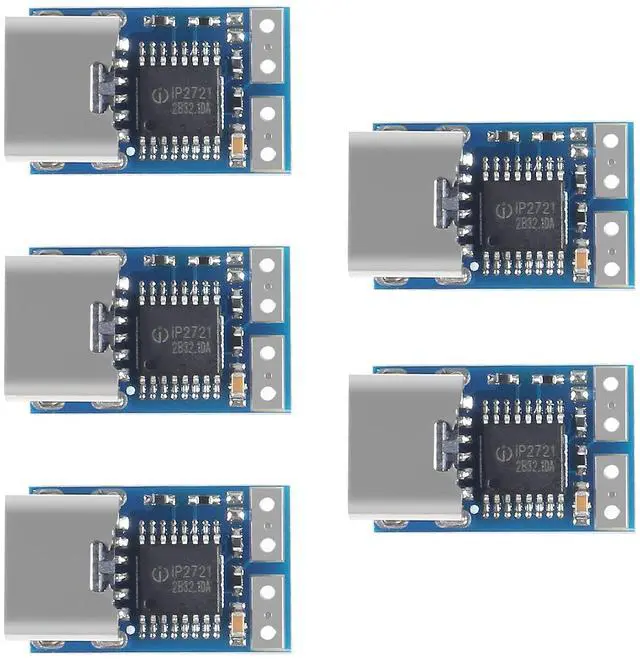

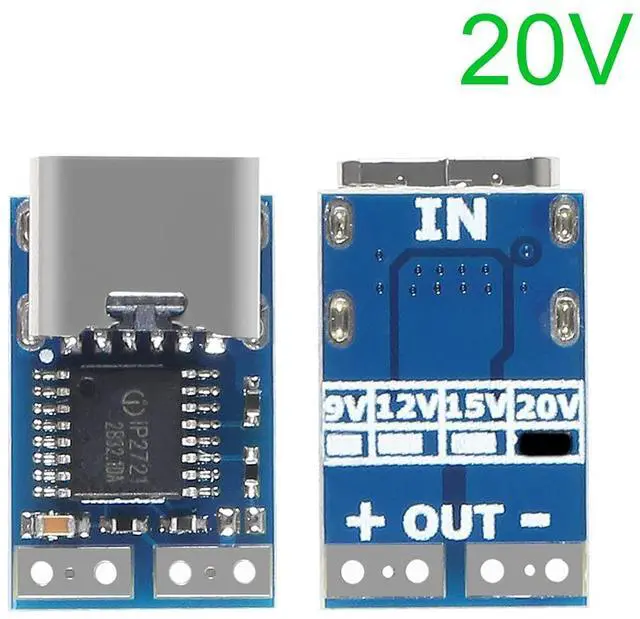

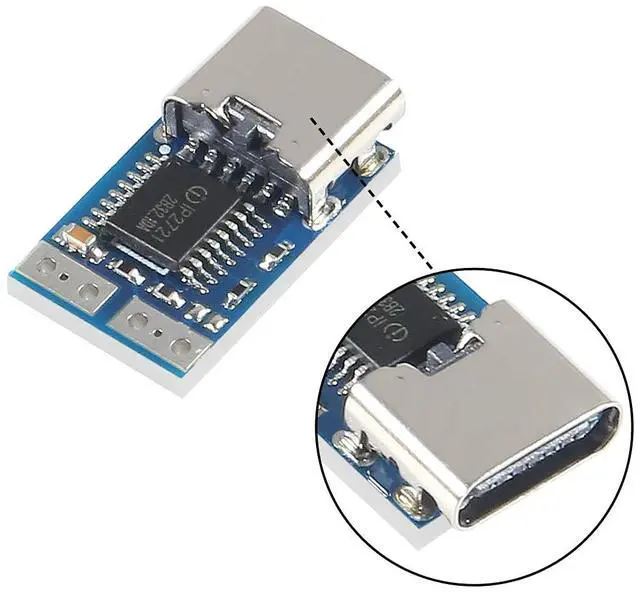

KEHIPI 5 PCS PDC004-PD PD Decoy Module, USB-C PD 20V DC Fixed Voltage Power Trigger Module 5A Type-C Female Input for Notebook
- Performs PD power negotiation Supports up to 5A
- It is a 20V PD decoy.It can induce the required voltage from the power supply or charger to power the product.

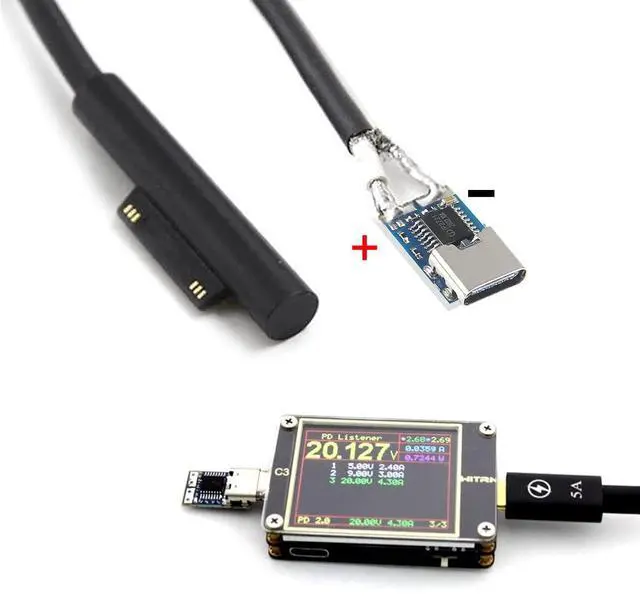

- Power an electronic project or convert old hardware to use USB-C power input
- It can effectively prevent problems such as VBUS short circuit to CC burn-in during the test.
- It is widely used in various product fields,such as small household appliances,electronic cigarettes,aging devices,smart homes,power tools,etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
PDC004 PD Decoy
1: This PD spoof uses the 2721 hardware PD chip, which cannot be upgraded, cannot change the voltage, and cannot be solved with compatibility problems.
2: Not all USB-C power supplies can support all voltages , If the power supply does not support the requested voltage then the next lowest voltage will be provided , The module just performs the PD negotiation and passes the output.
3:In order to use over 3A you will need to use an electronically marked Type-C cable , A real USB PD power source is required, will not work with QC-only chargers..
Parameter:
1).Product Name:12V PD Decoy.
2).Deception Voltage:9V
3).Product Chip:2721 hardware PD chip
4).Work Temperature:-25~85
5).Work Humidity:5%~95%RH
6).Size:17.6*10.2*4.2mm
Package:
20pcs 9V PD Decoy
