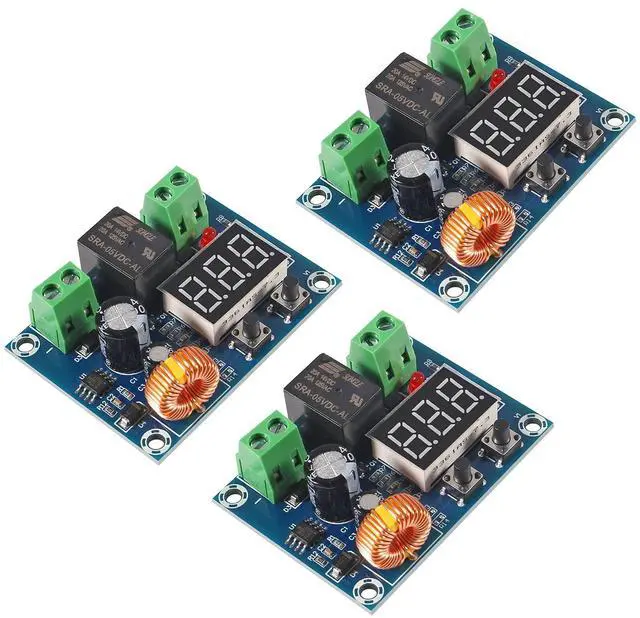

KEHIPI 3PCS DC 12V-36V Voltage Protection Module Digital Low Voltage Protector Disconnect Switch Over Discharge Protection Module Output 6-60V XH-M609
- AITRIP digital battery over-discharge protection switch is specially designed for 12-36V lithium and lead-acid battery. This is a low voltage protection module, not included any battery. When the battery voltage reaches the setting values, the module will disconnect load automatically to prevent the battery from over-discharging so as to prolong the battery lifetime.
- Low voltage disconnect 12V Main functions: over charge protection, over discharge protection function, short circuit protection function, over current protection function.
- Supply Voltage: DC 12-36V ,Output Voltage: Equal to supply voltage ,Control Precision: 0.1V Power: 1.5W;Instantaneous maximum current before circuit breaker trip: 20A.
- AITRIP low voltage disconnect Only suitable for a single battery, not for battery pack;Compatible with 12-36V lithium and lead acid battery
- On-board momentary push button to set the low voltage disconnect parameter and 3 digit red LED display the parameter easy to operation.When the battery voltage reach the setting values, the module will disconnect load automatically to aviod the battery from over discharging to prolong the battery lifetime. (Note:The relay does not contain a power cut-off switch,remember to cut off the power supply after disconnection, otherwise the module will continue to use the battery until the voltage is 0.)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Operation Instructions:
Press "+" the LED displays the low voltage protection parameter. Hold on the "+" to enter setting manual to set the protection parameter
Press "-" will display the difference value. Hold on the "-" to enter setting manual to set the difference value.
For example
if you want the battery to stop outputting when the battery voltage is lower than 11V and re-output when it is over 11.6V. What should you need to do?
Hold on "+" and set the value as 11. The LED starts flashing. After the flashing stops, hold on "-" and set the difference value as 0.6V
Is it lower than 12.5V and the voltage is higher than 14.8V? Long press + screen flashing to set the stop value to 12.5,wait for the screen to not flash,press and hold - the screen flashes,set the hysteresis voltage to 2.3V.
Specifications:
Input Voltage Range: DC12-36V
Control Accuracy: 0.1V
Compatible Battery: lead acid, lithium ion battery, solar panel battery

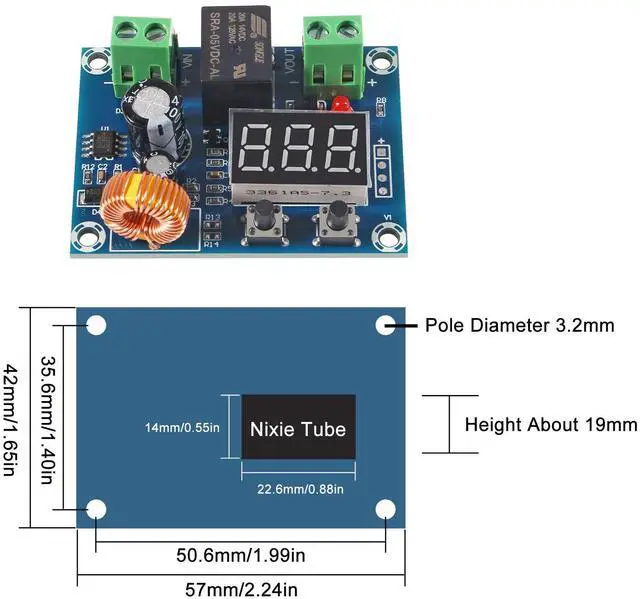

Board Size: 57 X 42 X 19mm/2.24 X 1.65 X 0.75inch(L*W*H)
Package:
3pcs XH-M609 DC 12V-36V Battery Low Voltage Disconnect Protection Module
