AKiTiO Thunder3 PCIe Box Model T3PB-T3DIS-AKTU

Name: AKiTiO Thunder3 PCIe Box Model T3PB-T3DIS-AKTU
Brand: AkiTiO
SKU: N82E16814988001
Rating: 5 (2 reviews)

Specs

Reviews (2)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the AkiTiO T3PB-T3DIS-AKTU

Model
Brand	AKiTiO
Model	T3PB-T3DIS-AKTU

Details

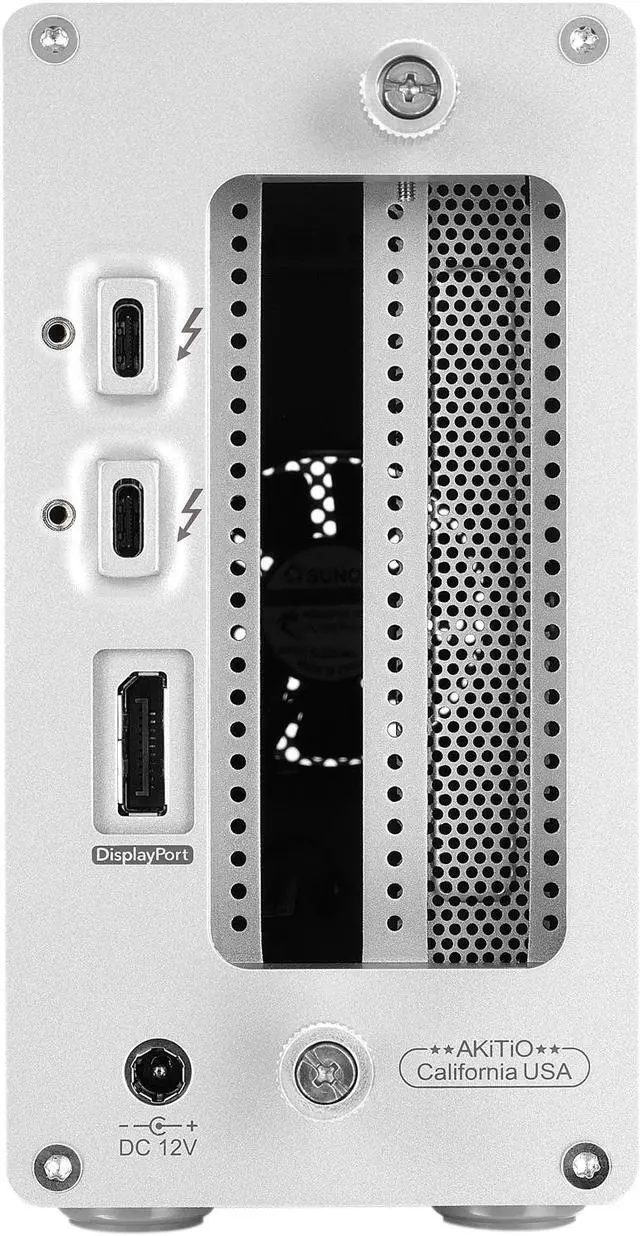

Specifications	Certifications - CE - FCC - VCCI - Thunderbolt technology Case material - High quality aluminum with metal chassis Application - 1 x PCIe card (see compatibility chart) - Supports half-length, full-height and double-width cards - PCIe (x16) slot provides a maximum of 25W - Not designed for graphics cards RAID mode - Not applicable Interface/Ports - 2 x Thunderbolt 3 (USB-C) ports - 1 x DisplayPort 1.1 - 1 x internal PCIe (x16) slot with 4 lane PCI Express 3.0 interface Data transfer - Thunderbolt 3 up to 40 Gbps - DisplayPort 1.1a (4K at 60 Hz) System requirements (PC) - Windows 7 and later - Computer with Thunderbolt 3 port System requirements (Mac) - Not supported System environment - Operating Temperature: 5°C ~ 35°C - Storage Temperature: -20°C ~ 60°C - Relative Humidity: 5% ~ 95% (non-condensing) Power supply - External power adapter (UL, cUL, CE, FCC, BSMI, TUV approved) - Input: AC 100-240V, 50Hz-60Hz - Output: DC +12V/6A Fan noise level - 23 dB(A) Dimensions - 2.99" x 5.87" x 9.17" Package contents - AKiTiO Thunder3 PCIe Box - Thunderbolt 3 USB-C cable - Power adapter - Setup guide Remarks - This Thunderbolt product is not compatible with Mac OS X or Apple's Boot Camp. - PCIe card (driver) must be compatible with requirements for Thunderbolt technology (e.g. hot-plug support, recovery from sleep). - This device is not designed for graphics cards.

Features

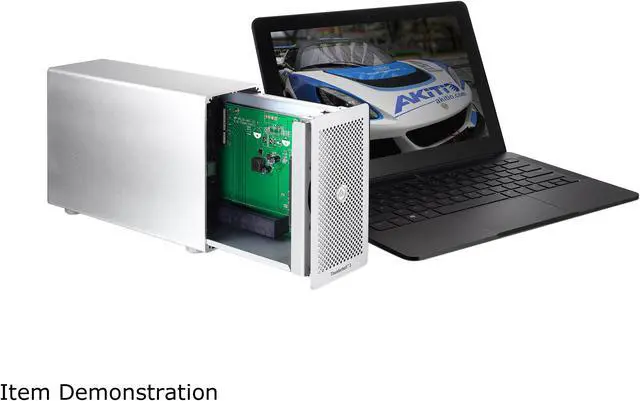

Features	The Thunderbolt 3 PCIe expansion box provides an additional PCIe slot for Thunderbolt 3 computers (e.g. laptop computers) where installing an internal expansion card is not an option and for systems where there is not enough space for more PCIe cards. The Thunderbolt 3 (USB-C) connection not only makes adding an external PCIe card easy but it also allows you to take the device with you to use on location and move it from one system to another. Installing and replacing the PCIe card is a simple matter of removing a few thumb screws and does not require any tools. Features - Thunderbolt 3 for lighting fast transfer speeds up to 40 Gbps - Dedicated DisplayPort for additional monitor to expand the workspace - 2nd Thunderbolt port supports Thunderbolt 3, USB 3.1, and DisplayPort devices - 1 PCIe (x16) slot supporting half-length, full-height, double-width cards - 4 lane PCI Express 3.0 compliant interface - Removable back panel for double-width cards - Daisy-chain up to 6 Thunderbolt devices - Durable and rugged aluminum casing - No tools required for installation

Additional Information
First Listed on Newegg	January 30, 2017
