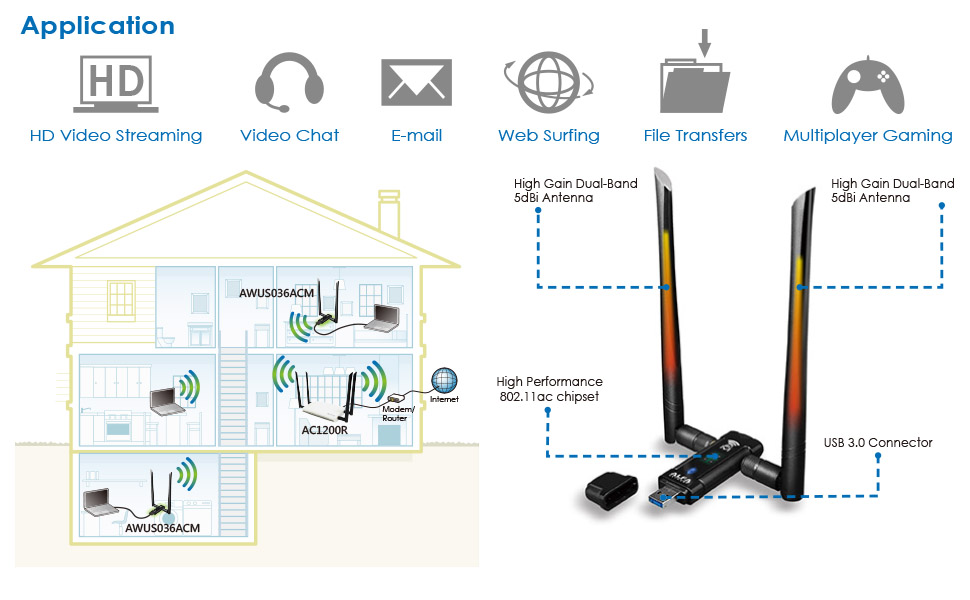

Superior Wi-Fi Performance
Equipped with lastest 802.11ac wireless standards, and years of field-proven experiences, ALFA AWUS036ACM provides 2.4GHz 300Mbps or 5GHz 867Mbps Wi-Fi data transfer speeds for outstanding peformance.

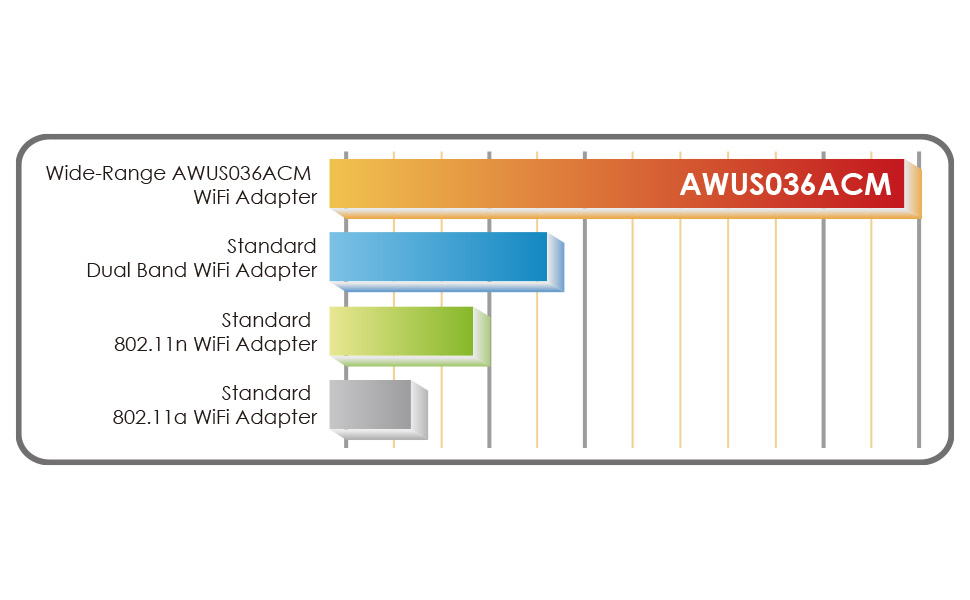

Giga-Fast 802.11ac Wireless, Better Range & Coverage

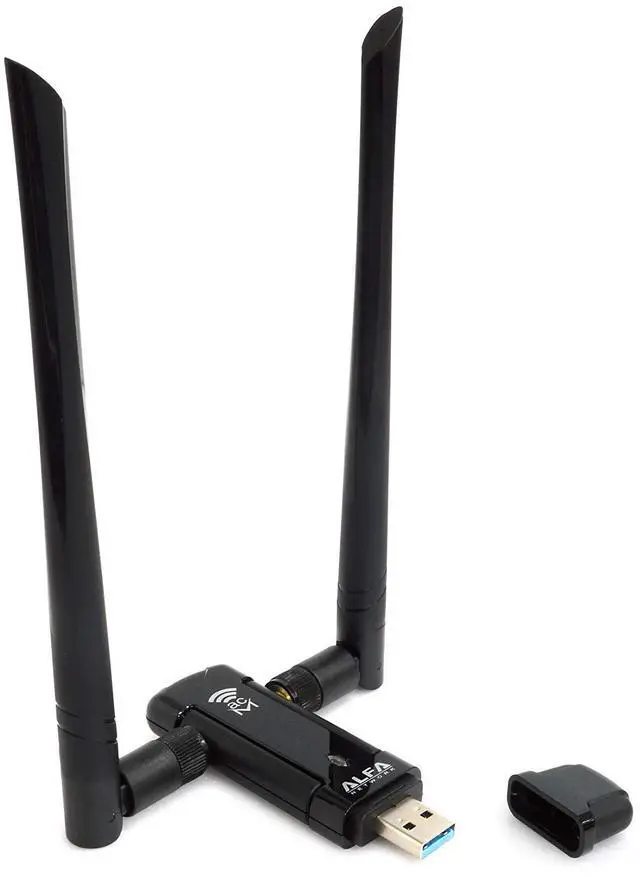

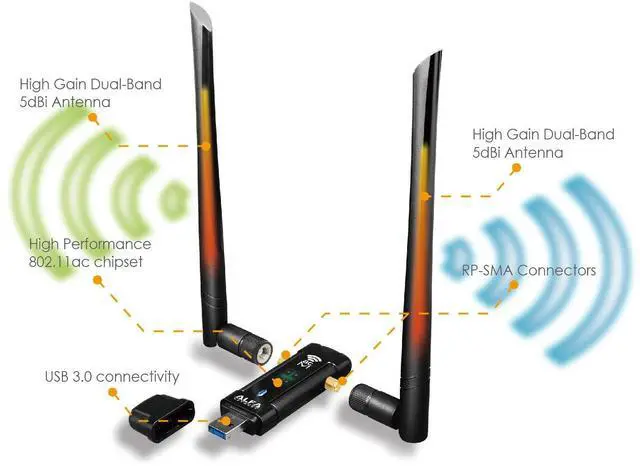

AWUS036ACM comes with lastest 802.11ac standards with hardware-based WiFi optimization, plus two external high gain antennas, resulting in extra-ordinary signal range.

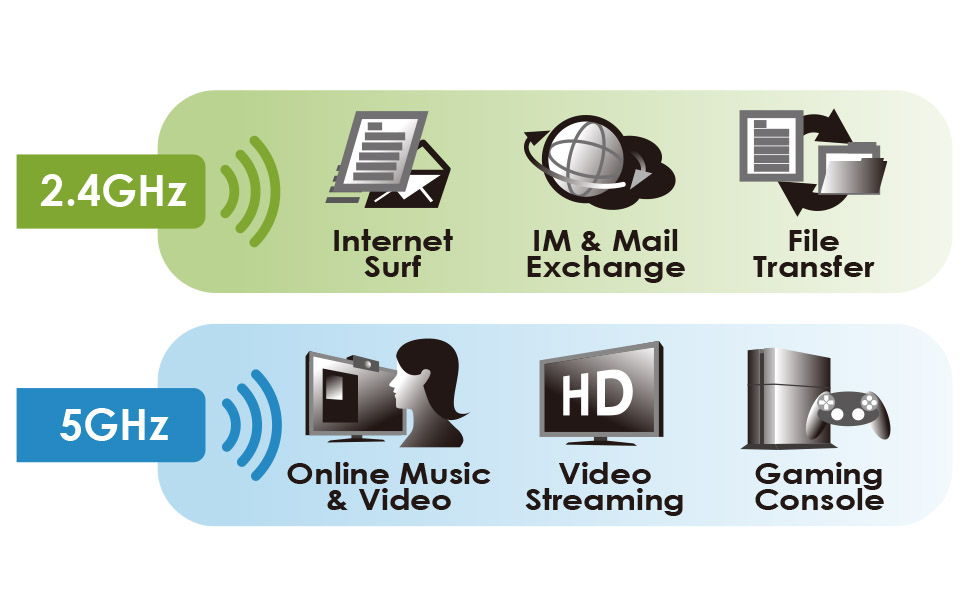

Increased Bandwidth, More Applications
AWUS036ACM supports Max. 300Mbps 2.4GHz or 867Mbps 5GHz wireless access. Making it ideal for large traffic and lag-free HD video streaming for more devices in your living space.

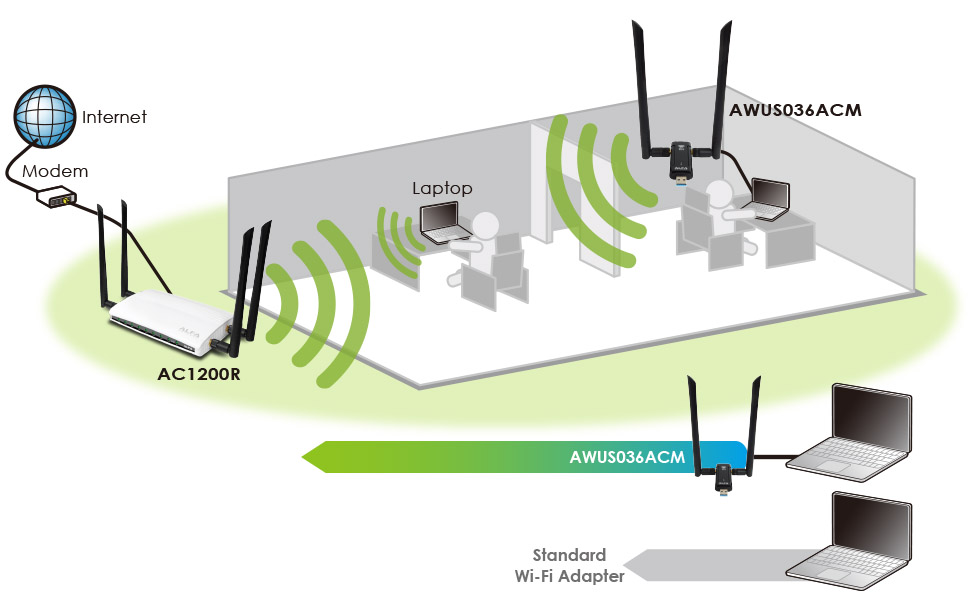

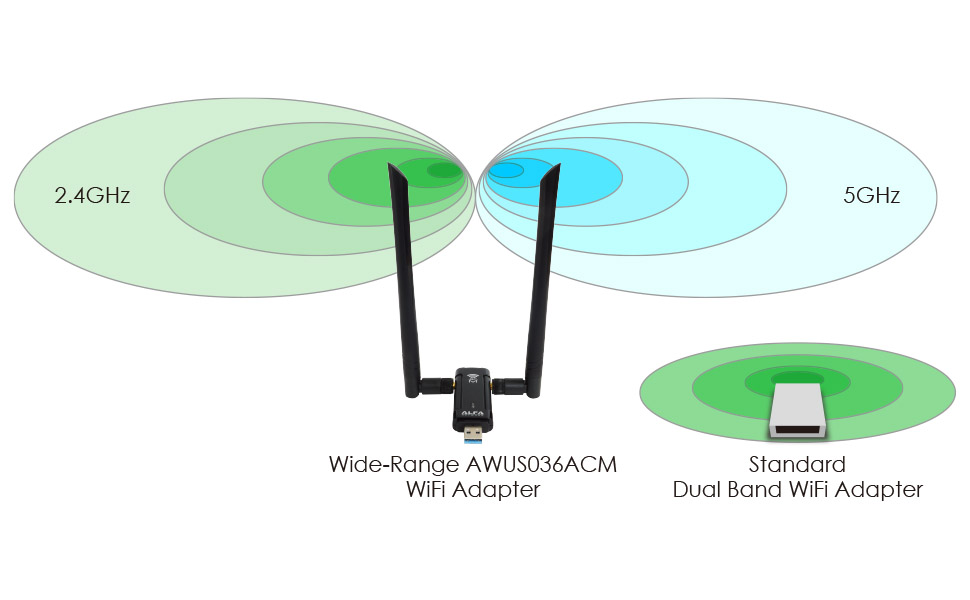

Increased Wireless Signal Penetration
With unmatched Wi-Fi signal strength and coverage. AWUS036ACM not only has maximum WiFi range, it helps to penetrate walls, and eliminate Wi-Fi dead spots in your living space easily.
Specifications
Superior Wi-Fi Performance
Equipped with lastest 802.11ac wireless standards, and years of field-proven experiences, ALFA AWUS036ACM provides 2.4GHz 300Mbps or 5GHz 867Mbps Wi-Fi data transfer speeds for outstanding peformance.
Giga-Fast 802.11ac Wireless, Better Range & Coverage
AWUS036ACM comes with lastest 802.11ac standards with hardware-based WiFi optimization, plus two external high gain antennas, resulting in extra-ordinary signal range.
Increased Bandwidth, More Applications
AWUS036ACM supports Max. 300Mbps 2.4GHz or 867Mbps 5GHz wireless access. Making it ideal for large traffic and lag-free HD video streaming for more devices in your living space.

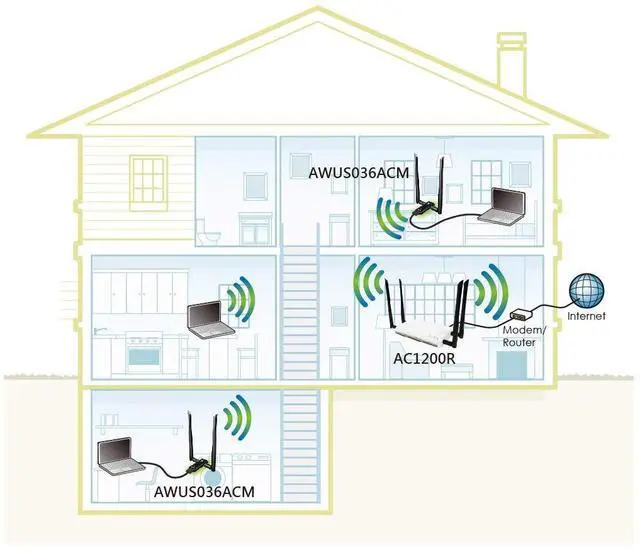

Increased Wireless Signal Penetration
With unmatched Wi-Fi signal strength and coverage. AWUS036ACM not only has maximum WiFi range, it helps to penetrate walls, and eliminate Wi-Fi dead spots in your living space easily.

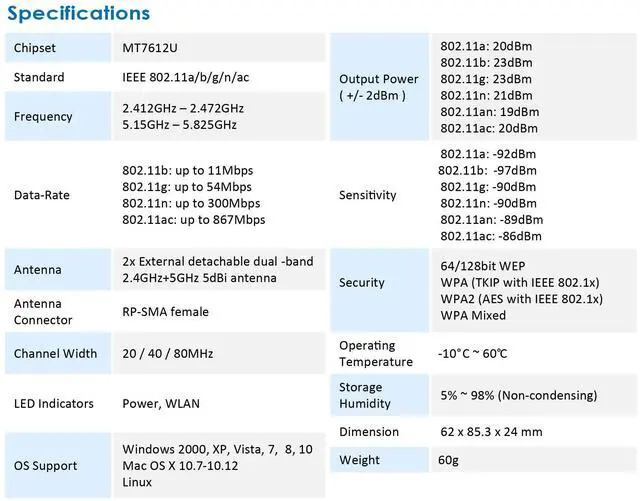

Specifications
| Chipset | MT7612U |
| Standard | IEEE 802.11a/b/g/n/ac |
| Frequency | 2.412GHz – 2.472GHz; 5.15GHz – 5.825GHz |
| Data-Rate | 802.11b: up to 11Mbps; 802.11g: up to 54Mbps; 802.11n: up to 300Mbps; 802.11ac: up to 867Mbps |
| Antenna | 2x External detachable dual-band 2.4GHz+5GHz 5dBi antenna |
| Antenna Connector | RP-SMA female |
| Channel Width | 20 / 40 / 80MHz |
| LED Indicators | Power, WLAN |
| OS Support | Windows 2000, XP, Vista, 7, 8, 10 Mac OS X 10.7-10.12 Linux |
| Output Power ( +/- 2dBm ) | 802.11a: 20dBm; 802.11b: 23dBm; 802.11g: 23dBm; 802.11n: 21dBm; 802.11an: 19dBm; 802.11ac: 20dBm |
| Sensitivity | 802.11a: -92dBm; 802.11b: -97dBm; 802.11g: -90dBm; 802.11n: -90dBm; 802.11an: -89dBm; 802.11ac: -86dBm |
| Security | 64/128bit WE; WPA (TKIP with IEEE 802.1x); WPA2 (AES with IEEE 802.1x); WPA Mixed |
| Operating Humidity | 5% ~ 98% (Non-condensing) |
| Dimension | 62 x 85.3 x 24 mm |
