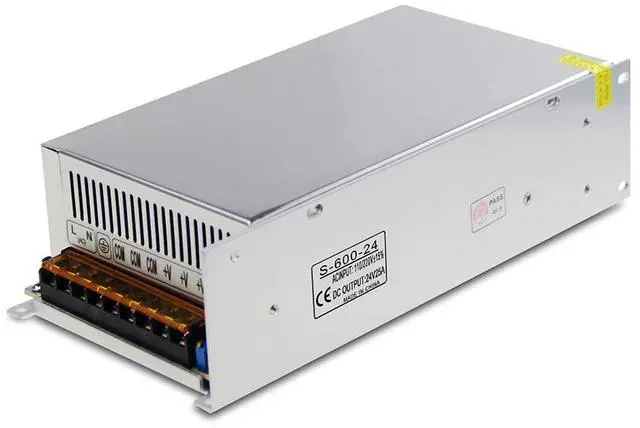

KEHIPI 24V 25A 600W Power Supply Adapter SMPS Switch Mode Power Supply LED Driver 110V 220V AC to DC 24 Volt 25 Amp 20A Converter Transformer for LED Light CCTV Camera Radio Speaker Amplifier Motor
- Input: 110V/220V AC; Output: DC 24V, 1A~25A 600W max. Output voltage is ±5% adjustable. Three sets of output channels.
- Works with devices that draws less than 25A @24V, such as 5A 10A 15A 18A 20A 22A 25A. Dont fit for motor devices higher than 15A 360W.
- Safe and stable, long service life. Built in automatic over-voltage protection, over-current protection, over-temperature protection, short circuit protection.
- It comes with built-in cooling fan, which makes heat dissipation more efficient. The fan will start running once powered to prevent it from overheating.
- Suitable for LED lighting projects, radio transceiver, CCTV cameras, audio amplifier, industrial automation, electronic communications,etc. Indoor use only!
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Parameter
Input: AC110V/220V 50/60Hz
Output Voltage : DC 24V (±5% adjustable)
Output current: 1A~25A, 600W max
Efficiency Level: 85%
Working temperature: 59~131 ( -15~55)
Ambient Humidity: 0~85% Non-Condensation
Fix Screw Hole Diameter: 2.5mm (0.1inch)
Safety Compliance: FCC / CE/CCC/
Weight: 3.5 lb / 1600g

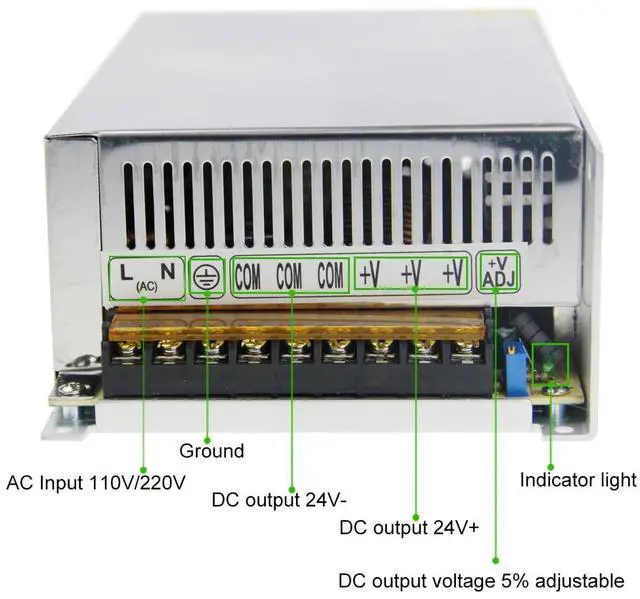

Connection instruction
L/N: AC power input
: Ground
+V: DC power output +
COM: DC power output -
+V ADJ: Adjust the output voltage (±10%)
Kindly note

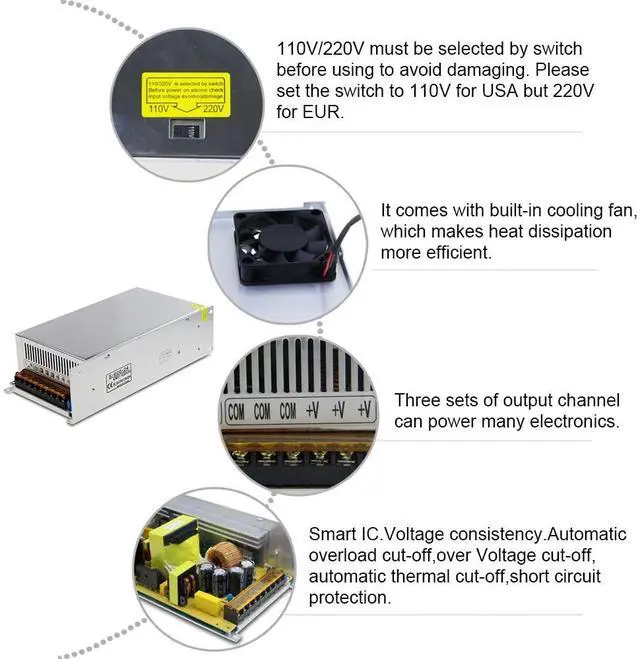

1) 110V/220V must be selected by switch before using to avoid damaging. Please set the switch to 110V for USA.
2) Once it is powered, the fan will run. It does make a noise and the speed of the fan is load based. So the higher the load, the louder the noise.
3) Professional licensed electrician suggests that the max use should be no more than 80% of the full loads. We recommend to use this 24V 25A 600W power supply to power devices less than 480W.
4)For motor devices, the start current is much higher that rate power. Please dont use this SMPS to power motor devices higher than 15A 360W.
5) High Voltage inside, do not remove the cover.
6) It comes without installation instruction, wiring cable, on/off switch and screws. Professional Installation of qualified electrician is highly recommended.
7) Indoor use only!
Package included
1 x 24V 25A 600W Switch Mode Power Supply
