Low-profile brackets attached. Standard Height Included in packaging
Vista, 7, 8, 10, and Linux
+
+
Overview
Specs
Reviews
MAIN OVERVIEW FEATURES:
Host Interface: PCI Express x1
Media Type Supported: Optical Fiber
Network Technology: 1000Base-SX
Form Factor: Plug-in Card
Environmentally Friendly: Yes
Environmental Certification:
WEEE
RoHS
REACH
TAA Compliant: Yes

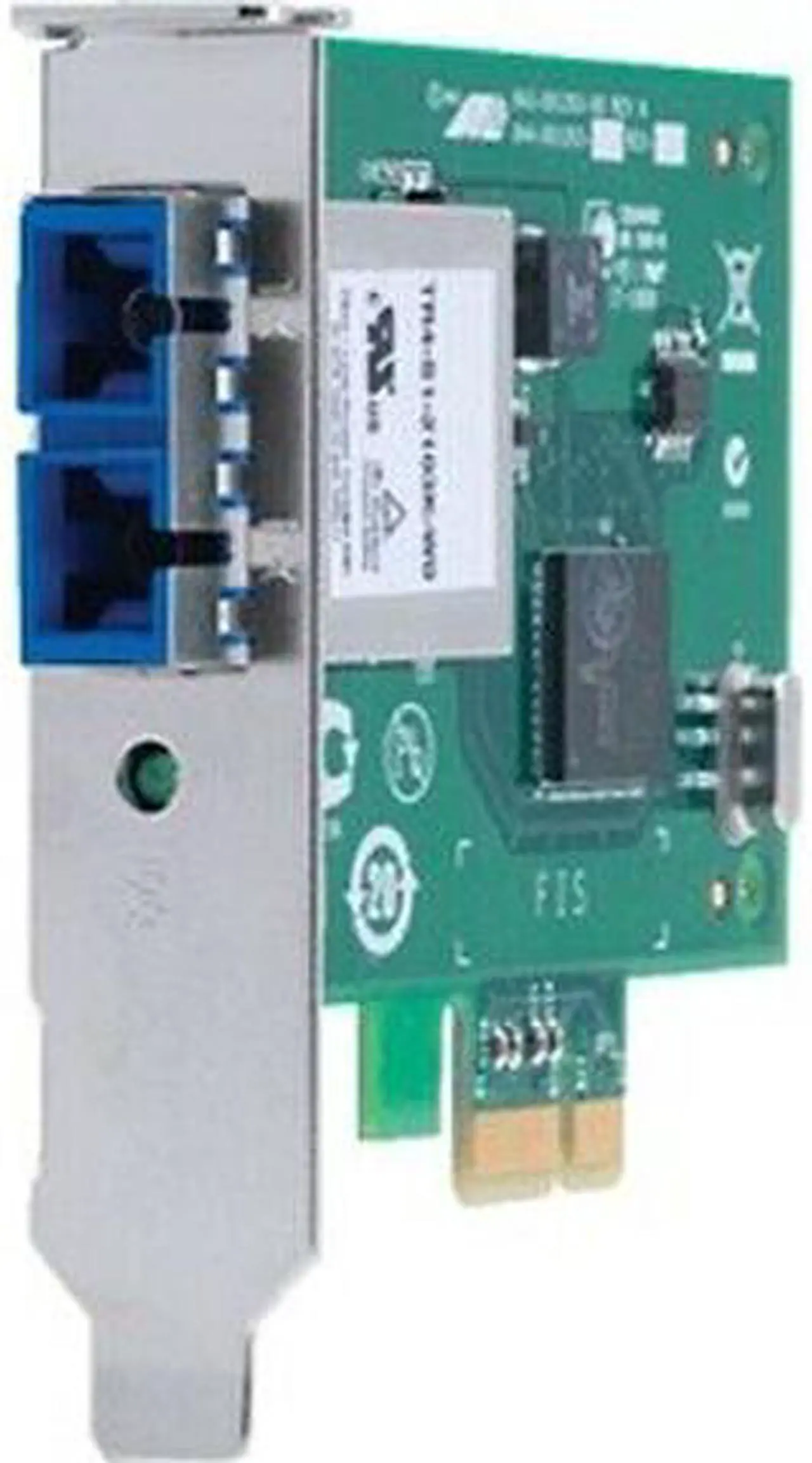

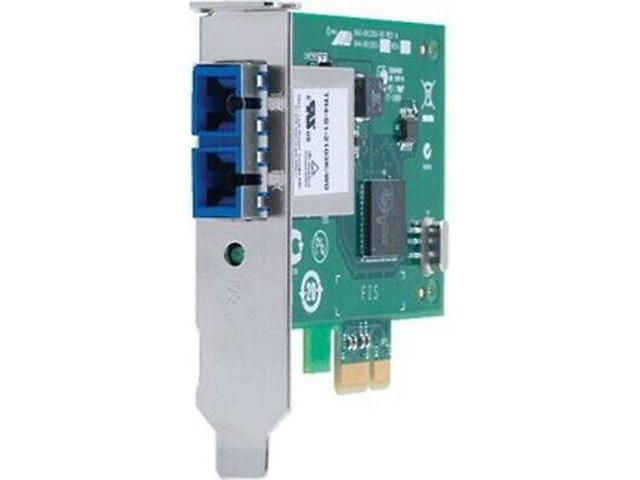

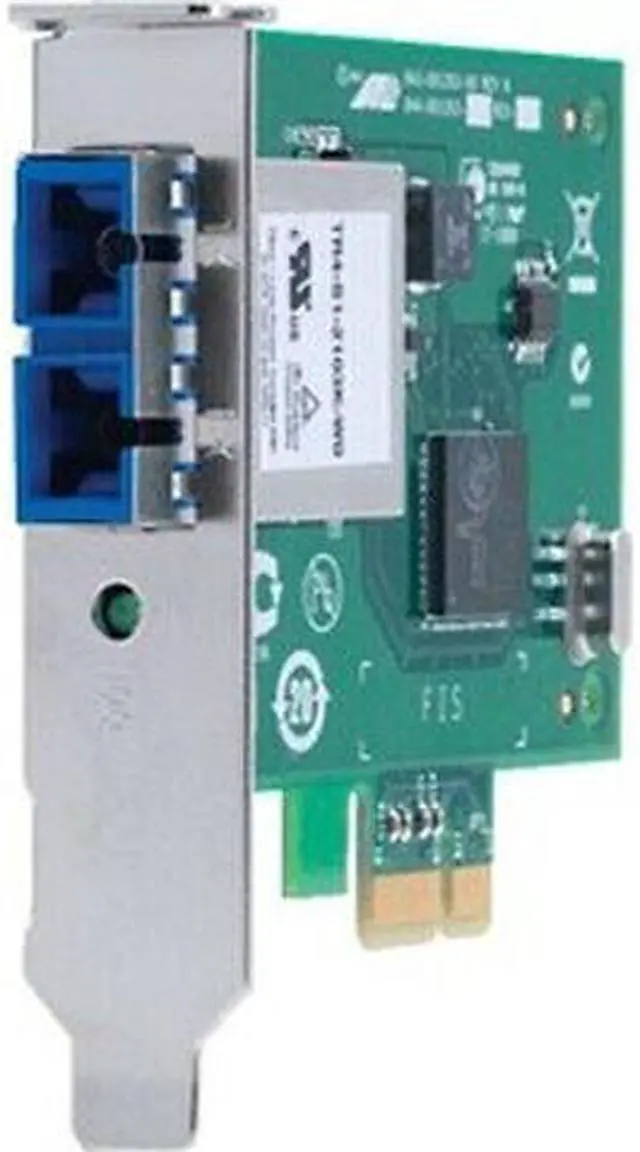

Learn more about the Allied Telesis AT-2914SX/SC-901
Model
Brand
Allied Telesis
Model
AT-2914SX/SC-901
Details
Standards
IEEE 802.1p Quality of Service IEEE 802.1Q VLANs IEEE 802.2 LLC IEEE 802.3ac MAC IEEE 802.3x Flow control auto-negotiation IEEE 802.3z 1000 Base-X IEEE 802.3ad Link aggregation
Speed
10/100/1000Mbps
Connectors
1 x SC
Interface
PCIe x1
BUS
PCI bus
LEDs
On: Link up Off: Link down Blinking: Activity
Drivers
Windows 7 Windows 10 Windows Server 2019 Windows Server 2016 Linux
Wake On LAN
Yes
Temperature
0°C to 50°C (32°F to 122°F)
Humidity
5% to 90% (non-condensing)
Features
Features
VLAN support Link aggregation LACP Link aggregation smart switch Failover WoL support Jumbo frames up to 9.6KB Secure transmissions PCI Express (PCIe x 1) Smart Load Balancing (SLB) and failover Link aggregation (IEEE 802.3ad) Generic trunking (FEC/GEC) / IEEE 802.3ad-draft static UEFI network boot IEEE 802.1x flow control SNMP IPv6 Low-profile brackets attached. Standard Height Included in packaging Vista, 7, 8, 10, and Linux
Dimensions & Weight
Dimensions
3.5" x 2.7"
Weight
0.13 lbs.
Additional Information
Date First Available
January 03, 2019
