Alphacool Eiszapfen 1/2" ID x 3/4" OD G1/4 Compression Fitting - Chrome Sixpack, Brass (17241)

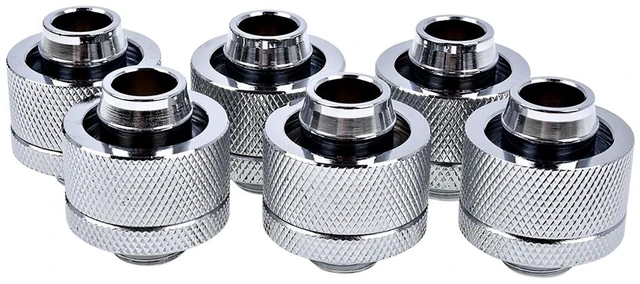

The Alphacool Eiszapfen 1/2" ID x 3/4" OD G1/4 Compression Fitting - Chrome Sixpack is a set of six straight compression fittings with a G1/4 thread for 19/13 mm soft tube. That is tube with a 1/2" inner and 3/4" outer diameter. Alphacool lists it as the Eiszapfen 19/13mm screw-on nozzle. O-rings in three colors (red, green and yellow) come in the box as well.

Properties

• Thread: G1/4
• Tube size: 19/13 mm (1/2" ID x 3/4" OD)
• Angle: Straight
• Color: Chrome
• Material: Brass
• Pieces in the pack: 6

Model: Straight Socket 19/13mm

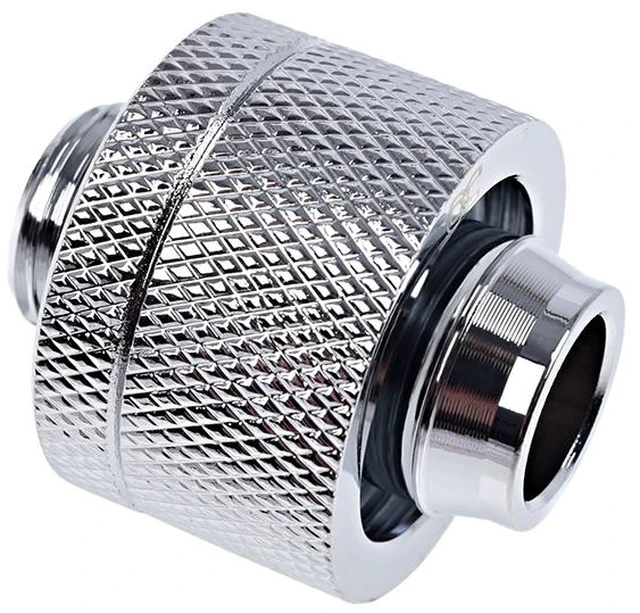

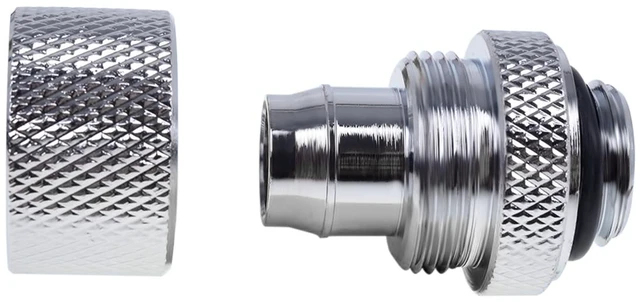

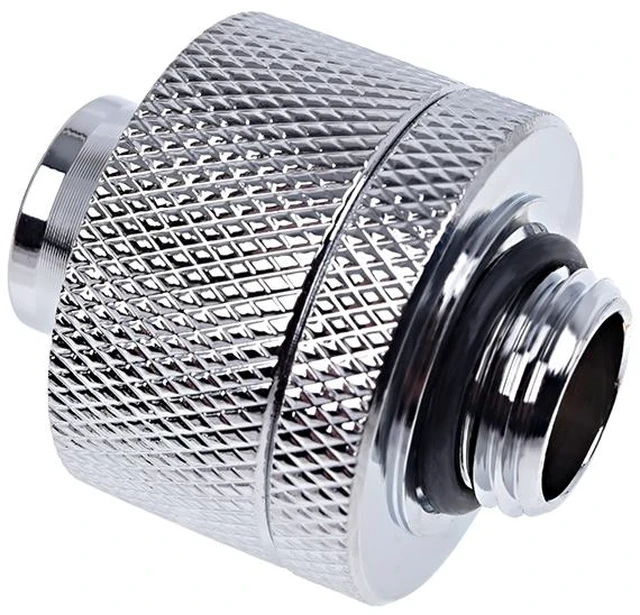

This connector has a G1/4 thread on one side, and Alphacool says it is thereby compatible with 95% of components. The other side fits a 19/13mm hose. Each fitting measures 26 mm in diameter and 29.5 mm in height.

Sixpack

Since six connectors of one type are frequently required in a loop, Alphacool now offers sixpacks. Alphacool says this has many advantages to your benefit.

The Eiszapfen Connector Series

Alphacool calls its Eiszapfen Connector Series the high-end execution of these tried-and-true connectors. It says every requirement you could have of a connector is met with this series: highflow, form, processing and color. In Alphacool's words, a refusal to compromise in development and production has made the series into what it is. Components are available in the brilliant chrome of this set or a deep, matte black, and Alphacool says both will fit excellently into any system. Of these two color options, this set is the chrome option.

A special procedure binds the outer coating firmly to the surface. Alphacool says this is improving the longevity of the intense colors and preventing any chipping or peeling of the coating. Every connector now has the Alphacool logo, which along with their distinctive shape makes them unmistakable.

On the HardTube connectors of the series, the slanted corners of each connecting nut allow the O-rings to be pressed firmly against the HardTube, ensuring that an O-ring sits even more securely than before. Alphacool says this allows for greater safety in transport.

What a run needs

The thread screws into any G1/4 port, and the hose side takes soft tube. Setting up a tube run takes two fittings, one at each end, so the six in this pack cover three runs.

Notes

• Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.

In the box

• 6x 1/2" ID x 3/4" OD G1/4 Compression Fittings
• O-rings in three colors (red, green, yellow)
