Alphacool NexXxoS HPE-60 Full Copper X-Flow 80mm Quad Radiator, G1/4, 60mm, Black (14374)

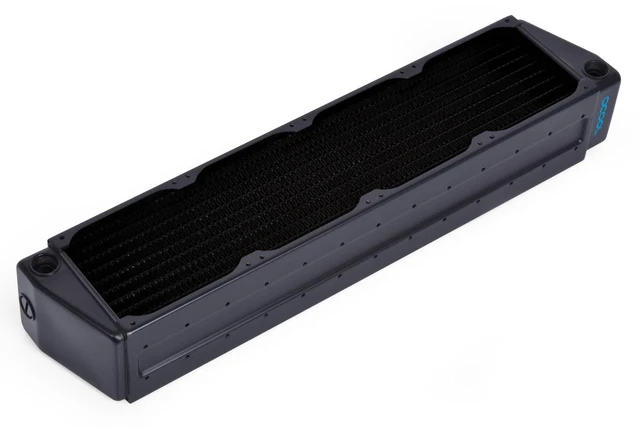

The Alphacool NexXxoS HPE-60 Full Copper X-Flow 80mm Quad Radiator is a radiator for four 80 mm fans in a row, 60 mm thick, with the water inlet and outlet on opposite sides. Its pre-chambers, cooling fins and cooling channels are all made of pure copper.

Properties

• Fans: 4x 80 mm one-sided / 8x both-sided
• Size (L x W x H): 367 x 80 x 60 mm (+/- 3% tolerance in the range of the prechamber)
• Thickness: 60 mm
• Ports: 6x G1/4 IN/OUT
• Material: copper fins, pre-chambers and channels, brass threads, stainless steel outer housing

Full Copper

Alphacool calls itself uncompromising in its choice of materials and says it is the only manufacturer in the world that uses only copper for all water-bearing parts in the radiator. Other materials appear in two places only: the fitting threads are made of brass and the outer casing of the radiator is made of stainless sheet steel.

HPE = High Performance

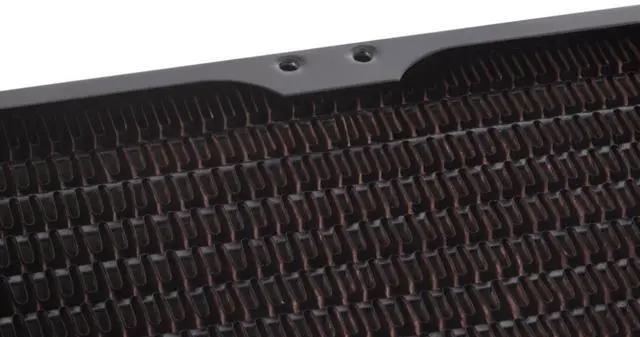

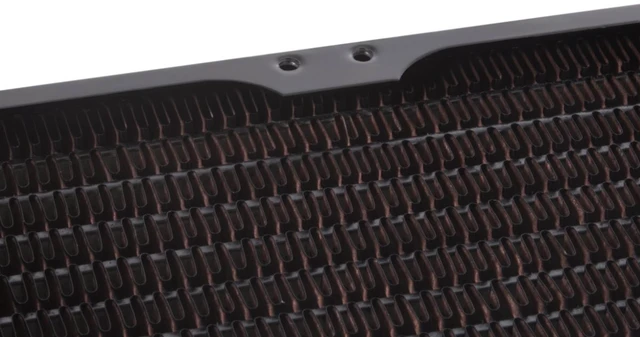

HPE radiators are based on the NexXxoS series, but what is new in this variant is the additional cooling channels and a very high fin density. Due to the technical design, Alphacool says, the cooling capacity increases significantly without restricting the water flow within the radiator. If the radiator is equipped with fans on both sides in push/pull operation, Alphacool says it is possible to achieve a significant temperature reduction compared to standard radiators.

What the loop needs

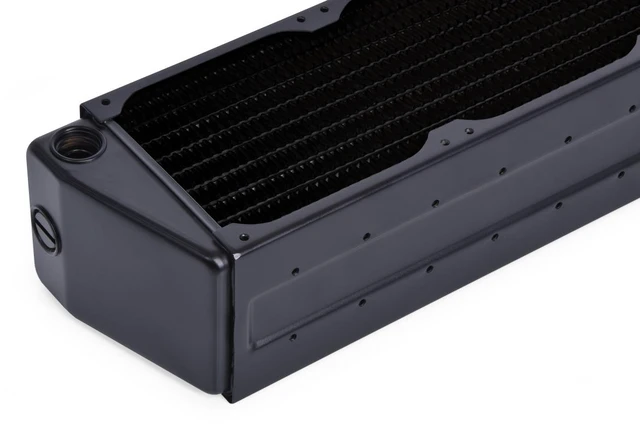

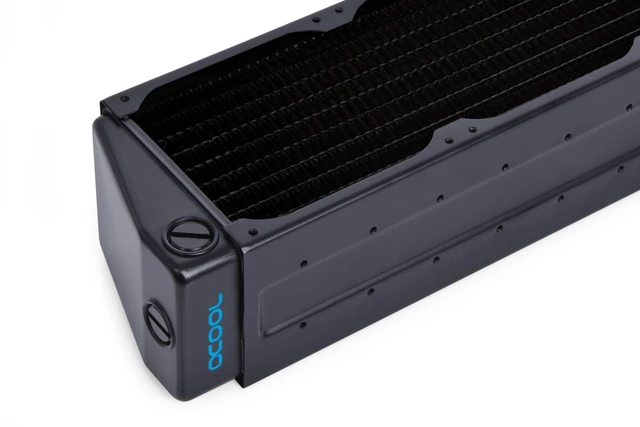

A loop runs in through a port on one side and out through a port on the other, so the radiator takes two G1/4 fittings, with a thread length of 5 mm at most. The fan size is 80 mm: its fan slots hold four 80 mm fans one-sided or eight double-sided, on M3 threads. All screws for mounting in the case and for mounting the fans are included with the radiator: 16x M3x30 with 16x M3 washers. Additional screws are usually not required.

Technical data radiator

• L x W x H: 367 x 80 x 60 mm (+/- 3% tolerance in the range of the prechamber)
• Quantity of cooling channels: 24
• Material cooling fins, pre-chambers & channels: copper
• Material threads: brass
• Material outer housing: stainless steel
• Threads: 6x G1/4 IN/OUT (max. 5 mm thread length)
• Possible fan size: 80 mm
• Possible fan assembly: 4x one-sided / 8x both-sided
• Thread size fan mounting: M3
• Pressure tested: 0.8 Bar
• Maximum working temperature: 60 °C
• Fin density: 15 FPI
• Weight: 1003 g
• Color: black

Notes

• Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses, which can result in voiding the manufacturer's warranty as well.

In the box

• 1x Alphacool NexXxoS HPE-60 Full Copper X-Flow 80mm Quad Radiator, black
• 16x M3x30 Screws
• 16x M3 Washers
• 1x Allen Key
• 1x plug tool
