Alphacool NexXxoS HPE-30 Full Copper 420mm Radiator (14379)

The Alphacool NexXxoS HPE-30 Full Copper 420mm Radiator is a 420 mm radiator for three 140 mm fans on one side, or six with fans on both sides, and it is 30 mm thick. The next thickness up in the same size is the HPE-45 Full Copper 420mm radiator.

Properties

• Fans: 3x 140 mm one-sided / 6x both-sided
• Size (L x W x H): 455.5 x 144 x 30 mm (+/- 3%)
• Thickness: 30 mm
• Ports: 4x G1/4 IN/OUT, 1x fill and drain port G1/4
• Material: copper fins, pre-chambers and channels, brass threads, stainless steel outer housing
• Fin density: 18 FPI

NexXxoS Full Copper

Alphacool says it has dominated the market with the NexXxoS Full Copper radiator series for more than a decade, and calls its extensive portfolio of radiator variants unique in the world. It says the same of what it describes as "our manufacturing process, which allows us to produce all water-carrying parts and the cooling fins out of pure copper". Just like every NexXxoS, the radiator offers, as a result, what Alphacool claims is the highest thermal conductivity of any radiator on the market. Thanks to what Alphacool calls exceptional performance, the radiators can easily dissipate even extremely high waste heat. By its account they have become essential in many areas of the cooling industry.

What the loop needs

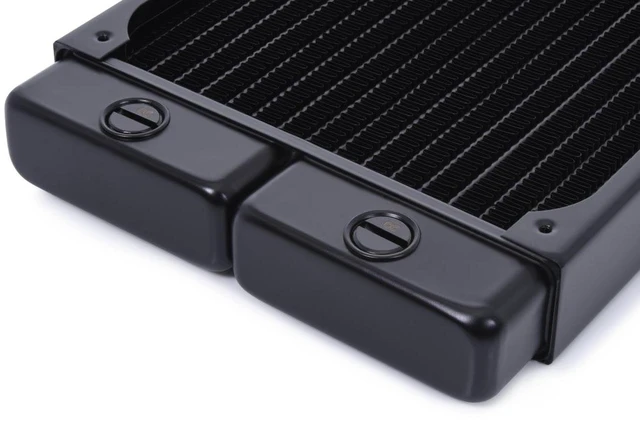

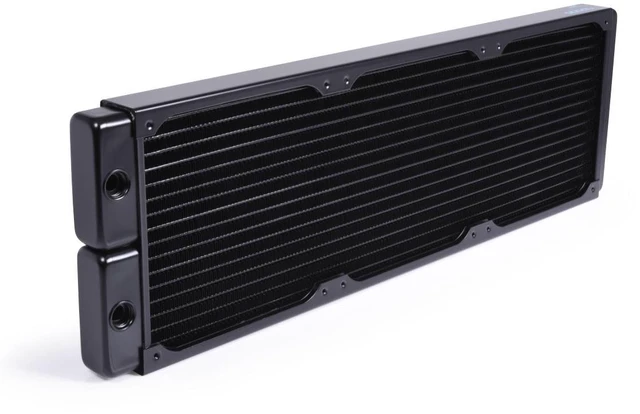

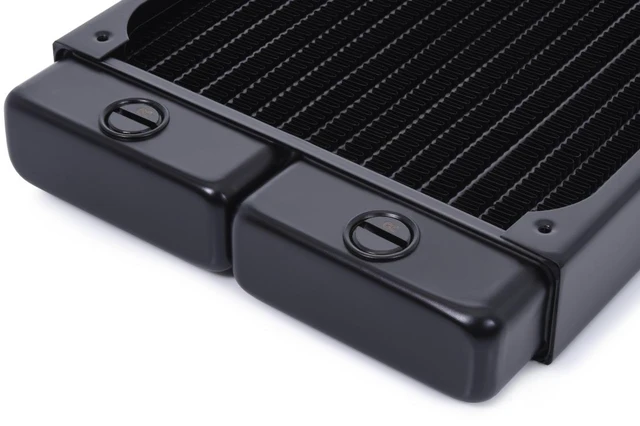

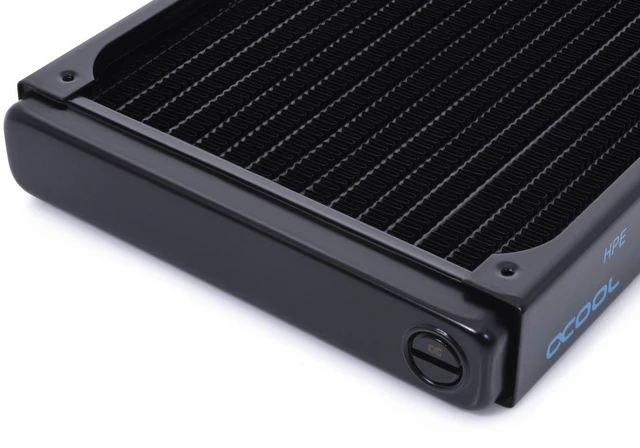

Under "Connection options & mounting", Alphacool's text gives the radiator two IN or OUT connections with G1/4 threads in the pre-chamber area, while its table lists 4x G1/4 IN/OUT. A loop uses two of them, so the radiator takes two fittings. On the opposite side is a fill or drain port, which can be used for filling and draining the water circuit. The table names it the fill and drain port, and thread length in every port is 5 mm at most.

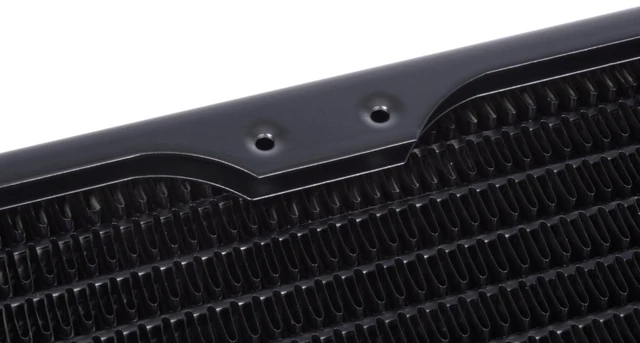

The radiator takes 140 mm fans on M3 threads, and the possible fan assignment is three on one side or six on both sides. All screws for mounting in the case and for mounting the fans are included with the radiator: twelve M3x5 case mounting screws and twelve M3x30 fan screws. Alphacool says additional screws are not usually required.

Technical data radiator

• L x W x H: 455.5 x 144 x 30 mm (+/- 3%)
• Quantity of cooling channels: 16
• Material cooling fins, pre-chambers & channels: copper
• Material threads: brass
• Material outer housing: stainless steel
• Threads: 4x G1/4 IN/OUT & 1x Fill-/Drainport G1/4 (max. 5 mm thread length)
• Possible fan size: 140 mm
• Possible fan assembly: 3x one-sided / 6x both-sided
• Thread size fan mounting: M3
• Pressure tested: 0.8 Bar
• Maximum working temperature: 60 °C
• Fin density: 18 FPI
• Weight: 984 g
• Color: black

Notes

• Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.

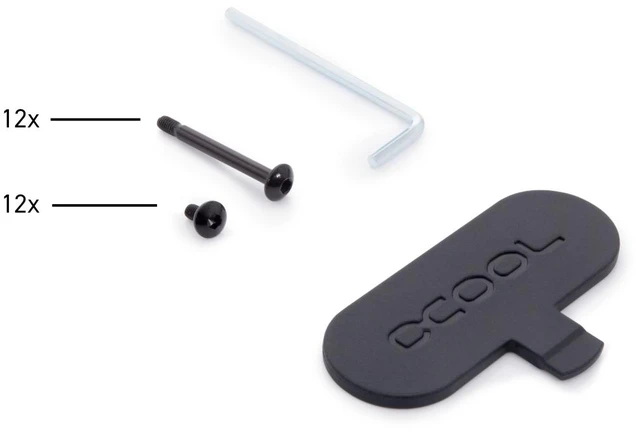

In the box

• 1x NexXxoS HPE-30 Full Copper 420mm Radiator, black
• 12x M3x5 case mounting screws
• 12x M3x30 fan screws
• 1x Allen key
• 1x plug tool
