Alphacool Eisblock Aurora Acryl GPX-N RTX 3070TI SG with Backplate GPU Water Block, G1/4, Nickel Plated Copper (13032)

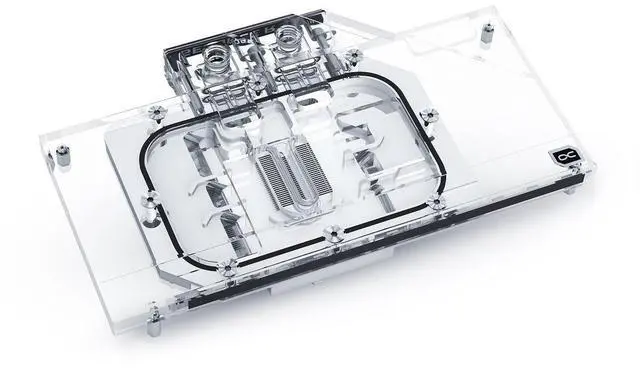

The Alphacool Eisblock Aurora Acryl GPX-N RTX 3070TI SG with Backplate is a GPU water block for the KFA² GeForce RTX 3070 Ti SG (1-Click OC), an Nvidia graphics card. It cools the card with a nickel-plated copper block under an acrylic top, and the black aluminum backplate is in the box.

Properties

• Fits: KFA² GeForce RTX 3070 Ti SG (1-Click OC)
• Cold plate: Nickel-plated copper
• Top: Acrylic
• Ports: 4 x G1/4
• Backplate: Aluminum, black, included

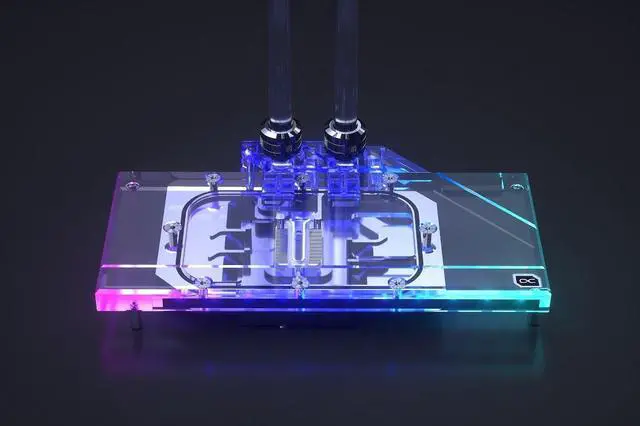

• Lighting: 11 digital aRGB LEDs, 5V

Compatibility

Alphacool lists these cards for this block:

• KFA² GeForce RTX 3070 Ti SG (1-Click OC), 8GB GDDR6X (37ISM6MD4BSK)

The block was built for one PCB layout, and Alphacool's manual warns that card makers occasionally revise a design so that the cooler no longer fits later models. That is the KFA² card with HDMI and 3x DP outputs. Before ordering, compare your card and its PCB number with the pictures in Alphacool's GPU Configurator, or look it up in its Compatibility List for Nvidia cards.

What the loop needs

The block has four G1/4 threads. Two take the compression fittings for your tube size, which are not in the box, and the other two take the two screw plugs that are, fitted with the enclosed plug tool. The lighting connects through a 3-Pin JST plug: the included digital-RGB adapter goes between the block's 3-pin female connector and a digital RGB controller, which is not included. Additional digital RGB LEDs can be connected to the adapter's remaining 3-pin male connector. Thermal pads, thermal grease, screws and washers also come with the block.

Technical data cooler

• L x W x H: 214.59 x 123.23 x 24.35 mm
• Material cooler: Nickel-plated copper
• Material cooler top: acrylic
• Threads: 4 x G1/4
• Thickness cooling fins: 0.6 mm
• Illumination: digital aRGB LEDs
• Power connector digital aRGB LEDs: 3-Pin JST
• Power digital aRGB LEDs: 5V
• Number of digital aRGB LEDs: 11

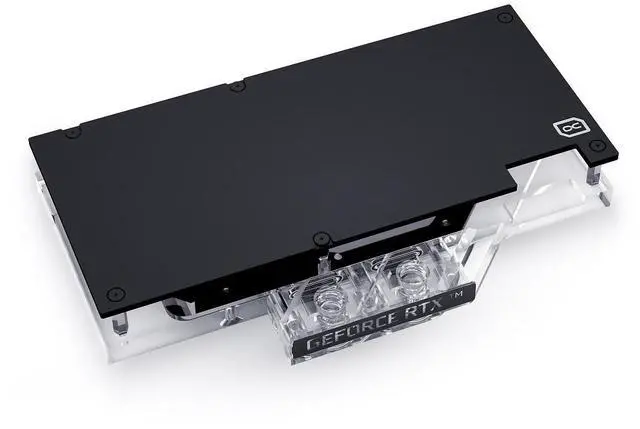

Technical data backplate

• L x W x H: 214.59 x 98.83 x 6 mm
• Material: aluminum
• Color: black

Notes

• Alphacool's note on application: please use the block only in conjunction with clear transparent water cooling fluids. Pastel liquids carry particles and additives that can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. Alphacool adds that this can result in voiding the manufacturer's warranty as well.
• Remove the original cooler on an antistatic mat, then clean the card of thermal paste or pad residues with a solvent such as isopropanol alcohol before fitting the block.
• Hand-tighten the card's screws crosswise, one turn at a time.

In the box

• 1x Eisblock Aurora Acryl GPX-N cooler
• 1x 8x77x1mm thermal pad
• 1x 8x66x1mm thermal pad
• 1x 8x55x1mm thermal pad
• 1x 15x51x1mm thermal pad
• 1x 15x28x1mm thermal pad
• 1x 15x40x1mm thermal pad
• 2x 8x8x1mm thermal pad
• 1x 30x30x2mm thermal pad
• 1x 8x77x3mm thermal pad
• 1x 8x74x3mm thermal pad
• 1x 15x51x3mm thermal pad
• 1x 15x28x3mm thermal pad
• 1x 15x40x3mm thermal pad
• 1x 15x15x3mm thermal pad
• 1x plug tool
• 1x Thermal grease
• 6x M2x5 screws
• 8x M2 washers
• 6x M2x11 screws
• 2x Screw plugs
• 1x digital-RGB adapter
• 1x backplate
