Alphacool Core Push Mounting 17mm M3/M4/UNC 6-32 Set 4x (15724)

The Alphacool Core Push Mounting 17mm M3/M4/UNC 6-32 Set 4x is a mounting kit of four metal pins with matching sockets, 17 mm in total height. It holds an Alphacool Distro Plate on a radiator or in a PC case, with screws in M3, M4 and UNC 6-32 for mounting. The same set comes in 25 mm and 50 mm heights.

Properties

• For: Alphacool Distro Plate, on a radiator or in a PC case
• Total height: 17 mm
• Diameter metal pins: 11 mm
• Weight per metal pin: 4 g
• Screws: M3x6, M4x6 and UNC 6-32 x 6, four of each
• Color: black/silver

How the Core Push Mounting System works

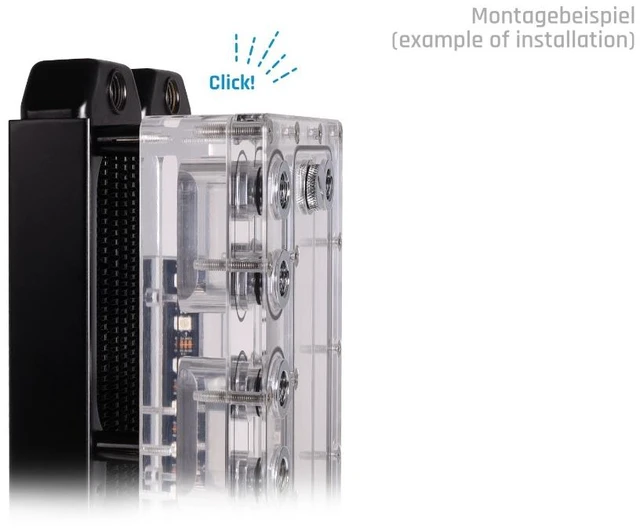

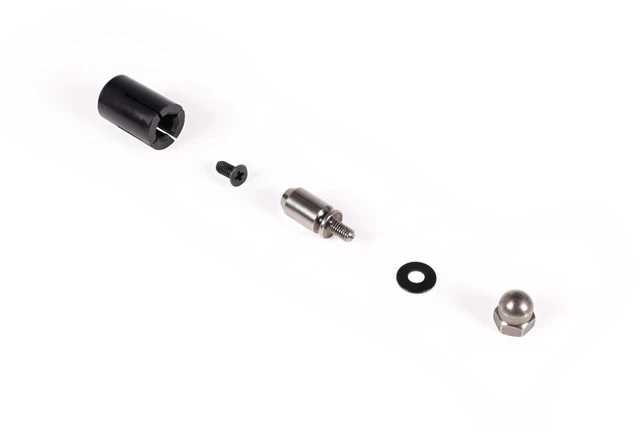

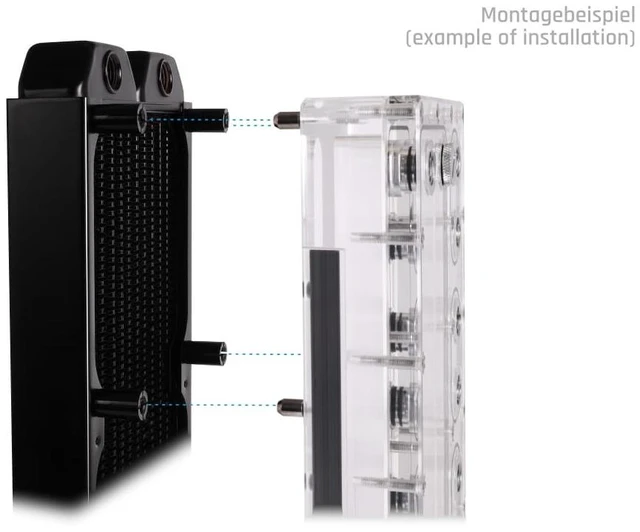

Alphacool says the kit offers an easy and secure way to mount the plate. The metal pins are screwed to the Distro Plate. The matching sockets are attached to the radiator or to the PC case. As the next mounting step you plug the Distro Plate onto the pins, without the need for tools. According to Alphacool the system enables a tight and stable fit of the plate.

What the mount needs

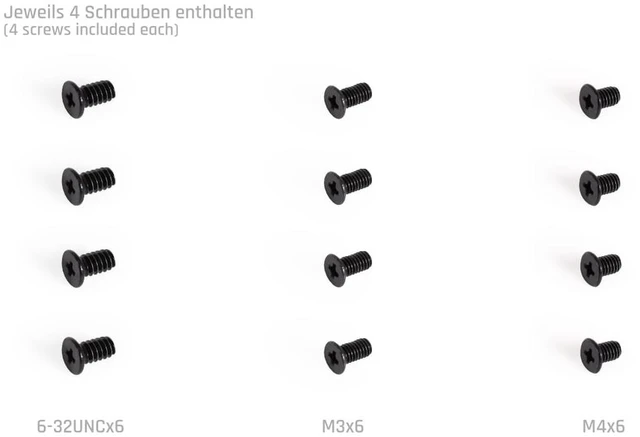

The set is an accessory, so the plate itself comes from our distribution plate reservoirs. The included screws cover three threads: 4x M3x6 screw, 4x M4x6 screw and 4x UNC 6-32 x 6 screw. Pick the thread that the radiator or the case panel takes.

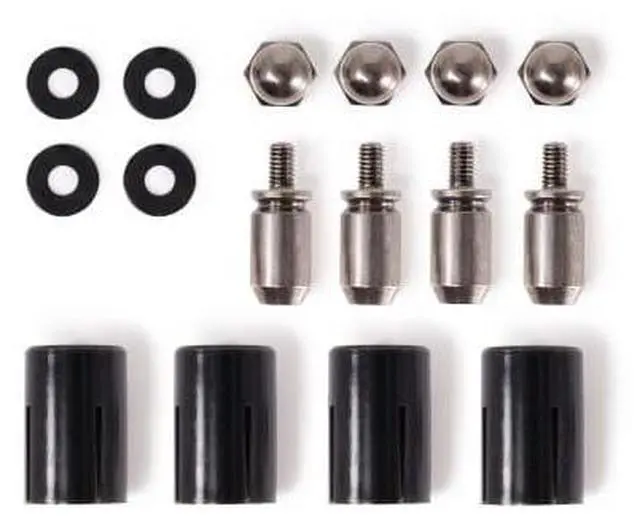

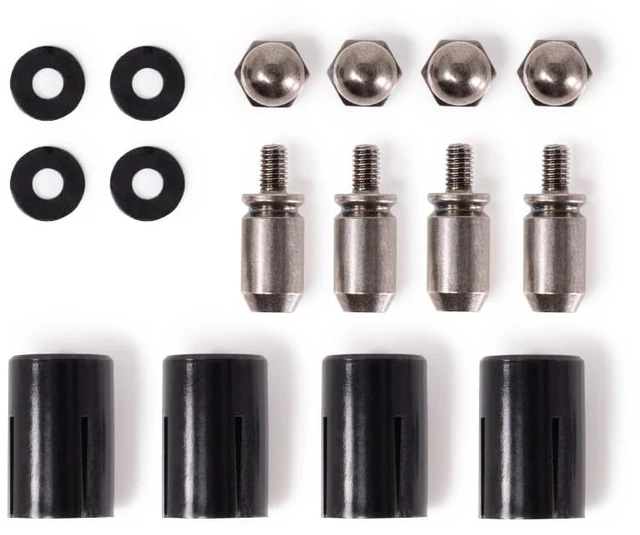

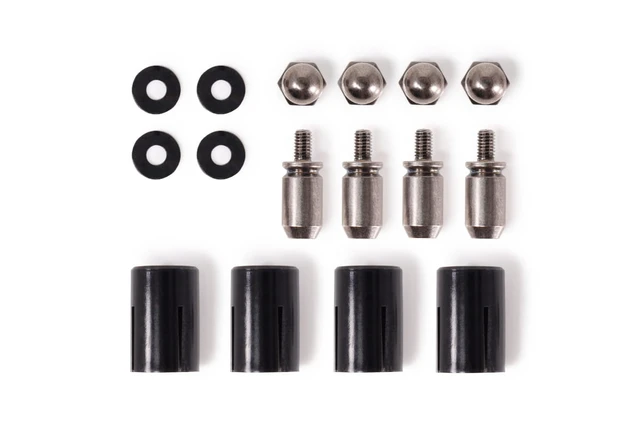

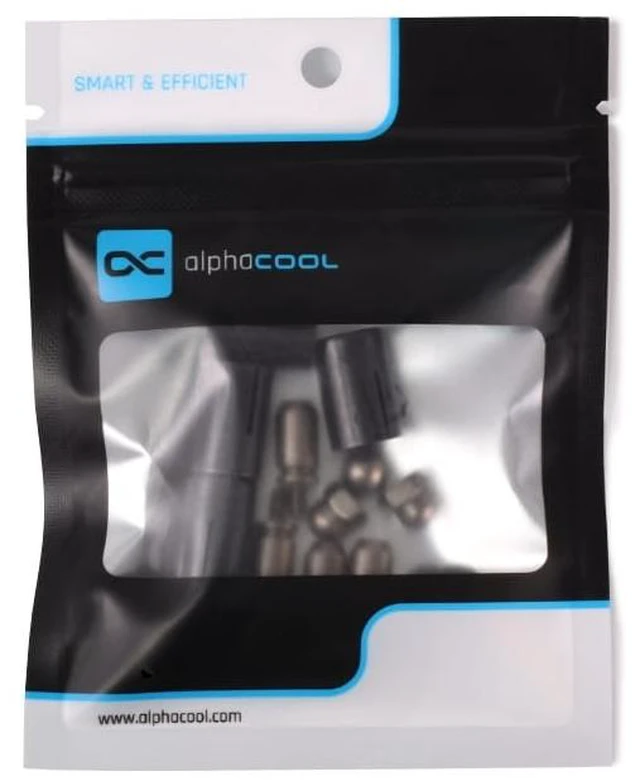

In the box

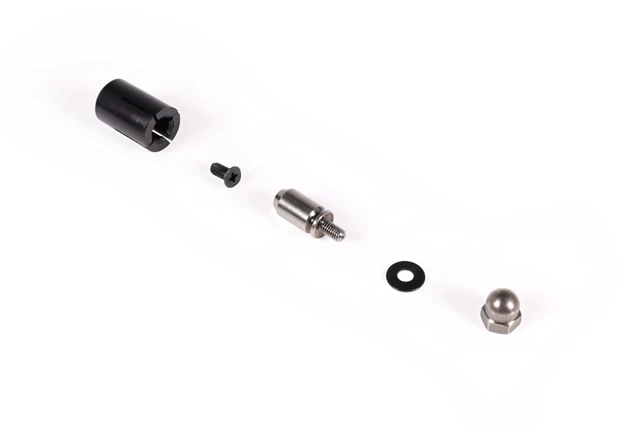

• 1x Core Push Mounting 17mm M3/M4/UNC 6-32 Set 4x
• 4x metal pin
• 4x sockets
• 4x washer
• 4x nut
• 4x M3x6 screw
• 4x M4x6 screw
• 4x UNC 6-32 x 6 screw
