Alphacool Core 60W PSU External - Black (15734)

The Alphacool Core 60W PSU External is a universal external 12V power supply with a 12V 5.0A output, for 12V devices that take a Molex or Sata connection. Alphacool describes it as suitable for directly connecting pumps, which makes it possible to fill loops without an additional power supply unit.

Properties

• Output: 12V 5.0A 60Watt
• Input: 100-240V ~1.5A Max / 50-60Hz
• Connections: Molex adapter, Sata adapter
• Size (L x W x H): 100 x 55 x 34 mm
• Weight: 230 g
• Color: black

What it is for

It can be used for various applications. One example is as a spare part for Alphacool's ES Orbiter 360 TS external cooling system. Alphacool calls the unit quiet and efficient, and its data sheet lists 12V voltage, safety and stability, noise reduction and energy-saving as its points.

What it needs

Both a Molex and a Sata adapter are included in the scope of delivery, so a device with either plug runs from it. The appliance connector in the box is 60 cm long. Alphacool also gives the measurements of the unit's Lumberg connector, in the second table below.

Technical data

• Dimensions (L x W x H): 100 x 55 x 34 mm
• Input: 100-240V ~1.5A Max / 50-60Hz
• Output: 12V 5.0A 60Watt
• Efficiency level: 6
• Weight: 230 g
• Color: black

Technical Specifications - Lumberg Connector

• Outer Diameter: 5.45 mm
• Inner Diameter: 2.6 mm
• Connector contact length: 12 mm

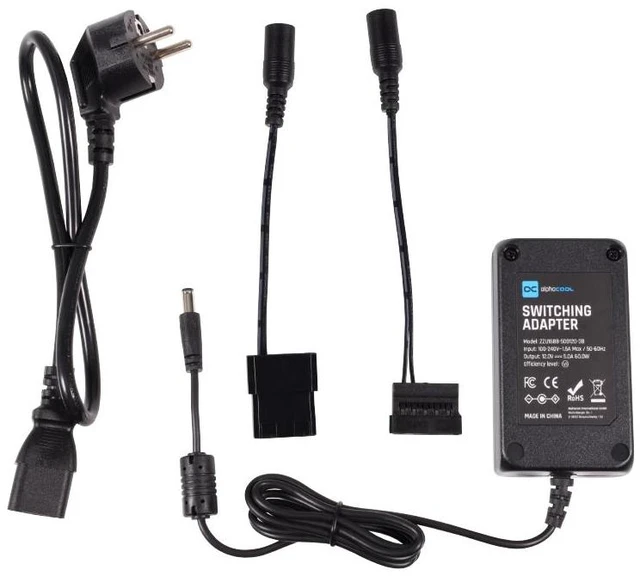

In the box

• 1x 60W PSU Extern (power supply)
• 1x Appliance connector (60cm)
• 1x Molex Adapter
• 1x Sata Adapter
