Alphacool Core 1 - Black CPU Water Block, G1/4, Nickel Plated Copper (13443)

The Alphacool Core 1 - Black is a CPU water block for AMD AM4 and AM5 and for Intel LGA 1700 and LGA 1851. It is made entirely of metal: a nickel-plated copper base sits under a housing milled from brass, here in black.

Properties

• Intel sockets: LGA 1700, 1851
• AMD sockets: AM4, AM5
• Cold plate: Nickel-plated copper
• Top: Brass housing, black
• Ports: 2 x G1/4
• Size: 72 x 72 x 26.50 mm

Fit

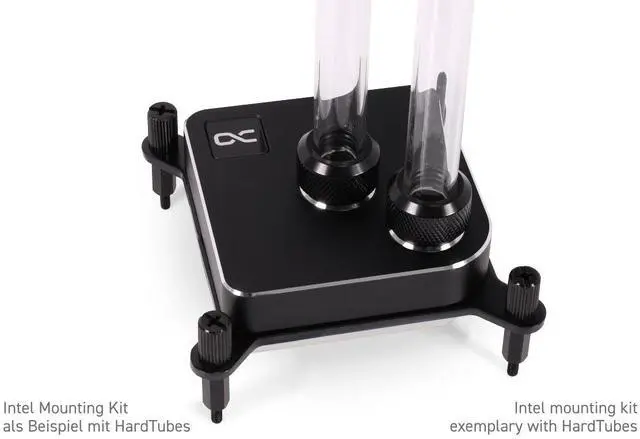

Two mounting sets are in the box. The CPU Brackets AMD Set and the four AMD threaded bolts are for AM4 and AM5. The CPU Brackets INTEL Set, the Core Backplate and the four INTEL threaded bolts are for the Intel sockets, and Alphacool's compatibility list gives those as LGA 1700 and LGA 1851. Neither side needs a separately sold bracket.

The mounting system has also been revised: compared to the previous Alphacool models, it requires fewer screws, which simplifies installation. On an Intel board, the backplate (Intel) is pre-assembled with four spacers first. Then the thermal paste is applied to the CPU. After that, the appropriate mounting frame is placed on the CPU cooler and fastened to the spacers with four nuts. On an AMD board, the manual has you remove the two-piece retention frame and use the original backplate of the motherboard, because the Core Backplate is only required for the Intel socket. Its instruction for the threaded bolts on both platforms is to hand tighten only.

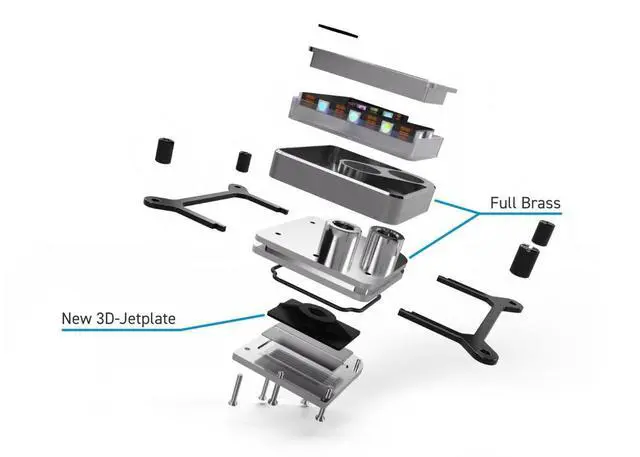

3D jet plate and cross slot

With the Core 1, Alphacool presents what it calls a new generation of CPU water cooling. Its reasoning is that the latest desktop processors are constantly becoming more powerful, but they also produce more and more waste heat. Alphacool says the Core 1 reliably solves this problem with the help of its completely newly developed 3D jet plate, a kind of plate that is also used in industry.

Under the heading of the best of old and new, Alphacool says the block brings the best of both worlds together. In addition to the new 3D jetplate, it returns to its roots by evenly distributing the coolant on the revised base using a proven cross slot technique. Inside the cooler, O-rings ensure precise water flow and thus effective cooling.

What the loop needs

The block has two G1/4 threads. Both take the compression fittings for your tube size, which are not in the box. There is no lighting to connect on this version. To run, the block needs a pump and a radiator in the same loop, and the coolant has to stay under the maximum working temperature of 60 °C.

Technical data

• Dimensions (L x W x H): 72 x 72 x 26.50 mm
• Material cooler: nickel plated copper
• Material cooler top: Brass
• Material threads: nickel plated Brass
• Threads: 2 x G1/4
• Fin thickness: 0.4 mm
• Fin distance: 0.4 mm
• Pressure tested: 0.8 bar
• Max working temperature: 60 °C
• Weight: 540 g
• Color: black

Notes

• Alphacool asks that the block be used only with clear transparent water cooling fluids. It warns that the particles and additives in Pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, and that this can void the manufacturer's warranty.

In the box

• 1x Core 1 CPU Cooler
• 1x Thermal Grease
• 1x Putty tool
• 1x CPU Brackets AMD Set
• 4x Threaded bolt AMD
• 4x Screw sleeve
• 1x CPU Brackets INTEL Set
• 1x Core Backplate
• 4x Threaded bolt INTEL
• 4x EVA Washer
