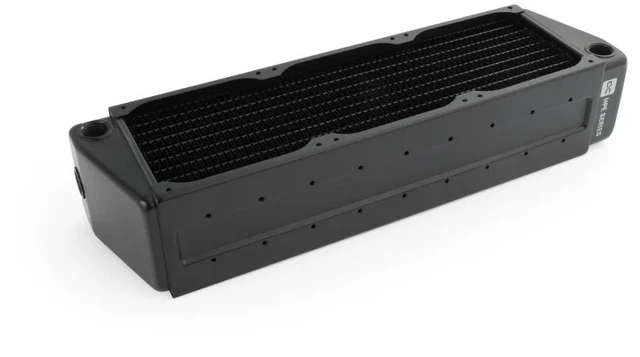

Alphacool ES HPE-60 Full Copper X-Flow 80mm Triple Radiator 5 Bar, G1/4, 60mm, Black (10234)

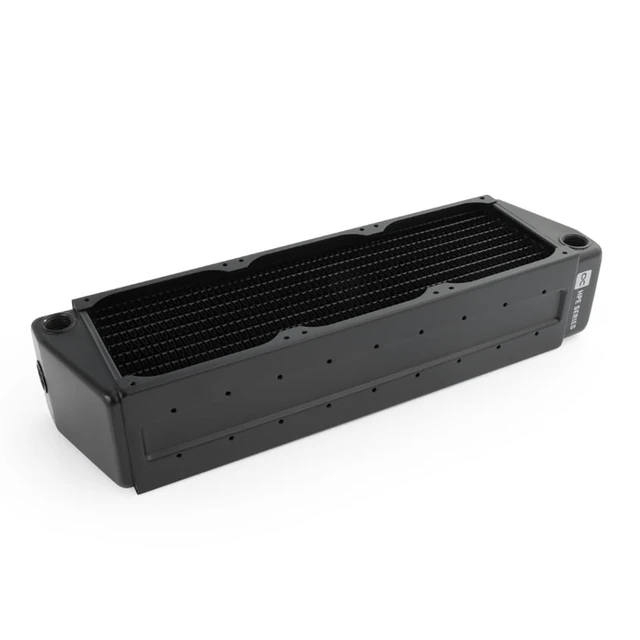

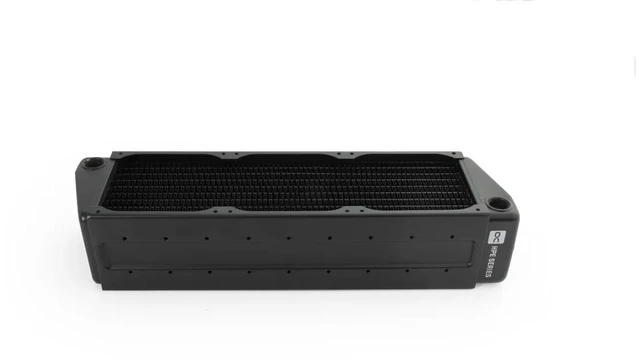

The Alphacool ES HPE-60 Full Copper X-Flow 80mm Triple Radiator 5 Bar is a radiator for three 80 mm fans on one side, 60 mm thick. Its inlet and outlet sit on opposite sides (X-Flow), and it is pressure tested to 5.0 Bar for industrial and server use.

Properties

• Fans: 3x 80 mm one-sided / 6x both-sided
• Size (L x W x H): 287 x 80 x 60 mm (+/- 3% tolerance in the range of the prechamber)
• Thickness: 60 mm
• Ports: 6x G1/4 IN/OUT, three on each side
• Material: copper fins, pre-chambers and channels, brass threads, steel outer housing
• Pressure tested: 5.0 Bar

What the loop needs

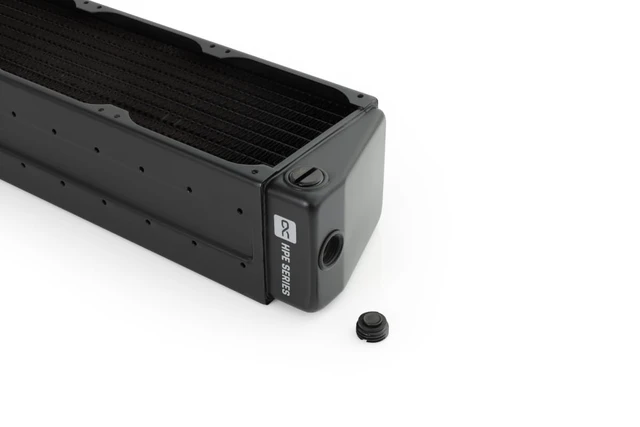

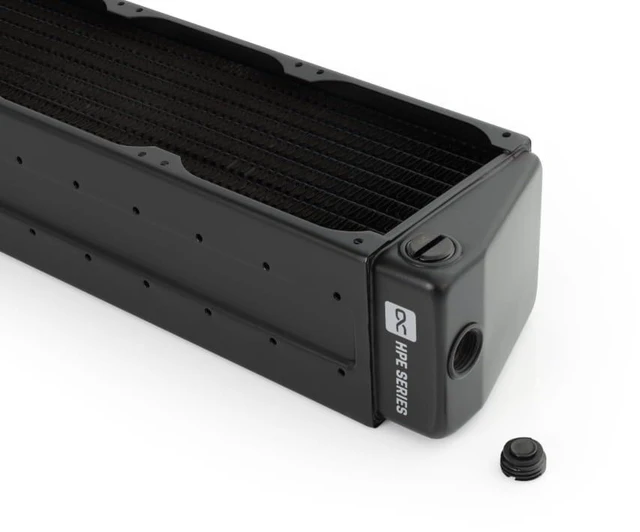

In the area of the pre-chambers, each side features three IN or OUT ports with G1/4 threads, six in all. Two are used, one per side, so the radiator takes two fittings, and the other four take the 4x plugs in the box. Thread length in the ports is 5 mm at most. All NexXxoS HPE X-Flow radiators use Alphacool's patented sealing plugs. Anyone who has ever mounted a radiator to the front or top of a case knows the problem: protruding sealing plugs can prevent the radiator from sitting flush. With these plugs Alphacool considers the issue solved, because they are completely recessed and sit flush with the surface of the radiator. This ensures a clean installation. Alphacool adds that, of course, the radiators also look significantly more refined with these flat plugs.

The radiator takes three 80 mm fans on one side or six on both, on M3 threads. All screws required for mounting the radiator in a case and for attaching the fans are included: 12x M3x28 and 12x M3. Additional screws are usually not necessary. A special protective feature ensures that fan or mounting screws cannot be driven in too deeply. Protective plates have been placed beneath all mounting holes to prevent over-tightening, which protects the cooling fins and water channels underneath from damage.

Technical data radiator

• L x W x H: 287 x 80 x 60 mm (+/- 3% tolerance in the range of the prechamber)
• Quantity of cooling channels: 24
• Material cooling fins, pre-chambers & channels: copper
• Material threads: brass
• Material outer housing: stainless steel
• Threads: 6x G1/4 IN/OUT (max. 5 mm thread length)
• Possible fan size: 80 mm
• Possible fan assembly: 3x one-sided / 6x both-sided
• Thread size fan mounting: M3
• Pressure tested: 5.0 Bar
• Maximum working temperature: 60 °C
• Fin density: 15 FPI
• Weight: 1035 g
• Color: black

Notes

• Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses, which can result in voiding the manufacturer's warranty as well.

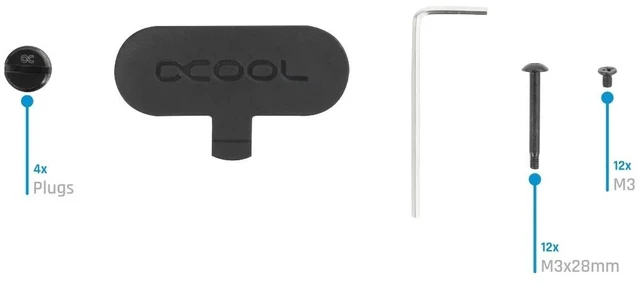

In the box

• 1x Alphacool NexXxoS HPE-60 Full Copper X-Flow 80mm Triple Radiator 5 Bar, black
• 12x M3x28 Screws
• 12x M3 Screws
• 1x Allen Key
• 1x Plug tool
• 4x Plugs
