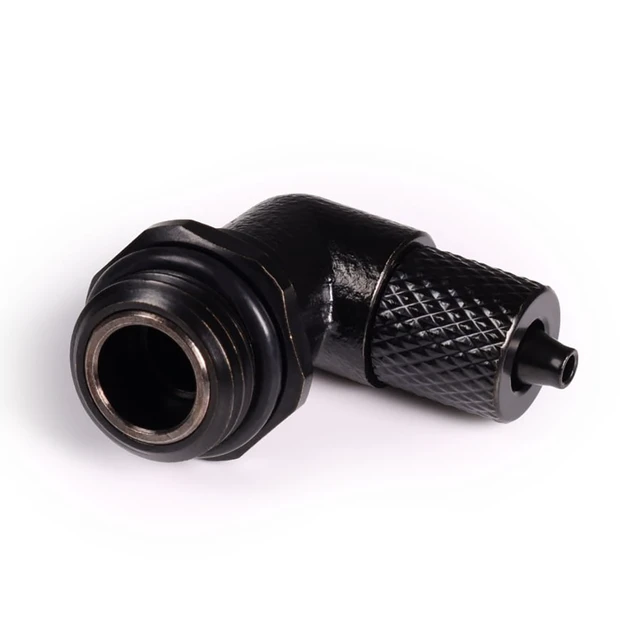

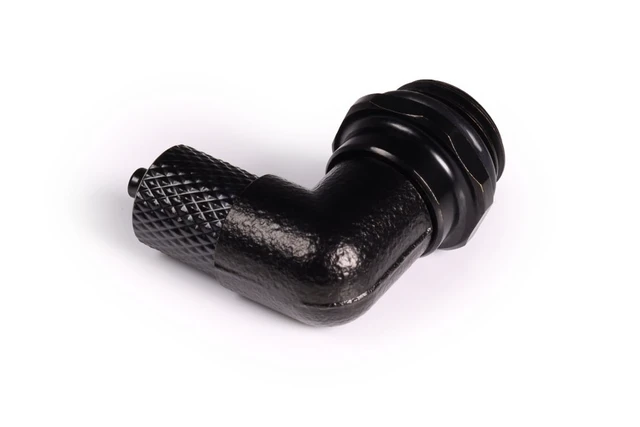

Alphacool ES 5/3mm Compression Fitting 90° Rotatable G1/4 - Deep Black (17648)

The Alphacool ES 5/3mm Compression Fitting 90° Rotatable G1/4 - Deep Black is a brass compression fitting at a 90° angle with a G1/4 thread for 5/3 mm hose, one fitting per pack. It is rotatable, and Alphacool has optimized it for server and workstation systems.

Properties

• Thread: G1/4
• Tube size: 5/3 mm hose
• Angle: 90°, rotatable
• Color: Black
• Pieces in the pack: 1

Product information

Alphacool describes this ES part as a screw-on sleeve made of brass: a 1/4" thread on one side, a hose thickness of 5/3 mm on the other. Its data sheet lists two points, that the angle is rotatable and that the fitting is meant for tight spaces. The technical specifications follow in the table.

What a run needs

A hose run takes two fittings, one at each end.

Technical data

• Dimensions (L x W x H): 30 x 16 x 28 mm
• Material: Brass
• Weight: 27 g
• Thread: G1/4
• Hose thickness: 5/3 mm
• Color: black

Notes

• Alphacool's note on application: please use this fitting only in conjunction with clear, transparent water cooling fluids. The particles and additives in Pastel liquids can clog water cooling products such as radiators, pumps, coolers and hoses, and permanently damage them. Voiding the manufacturer's warranty can be the result as well.
