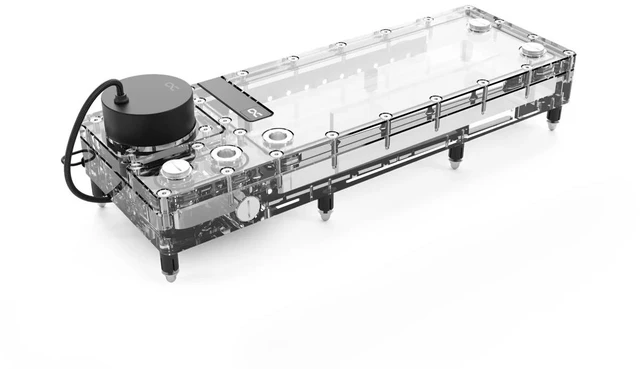

Alphacool Core Flat Reservoir 360 Right with VPP Pump, G1/4, 500 ml, Acrylic, Clear (15488)

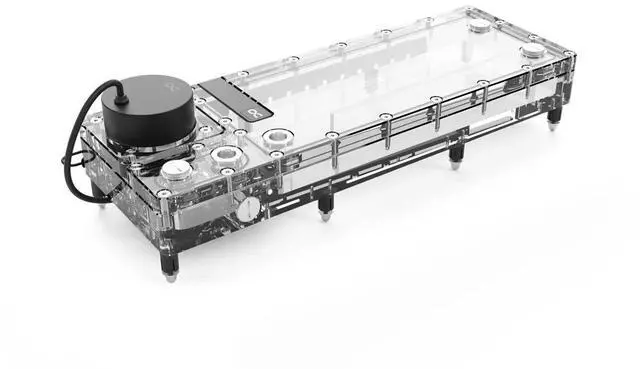

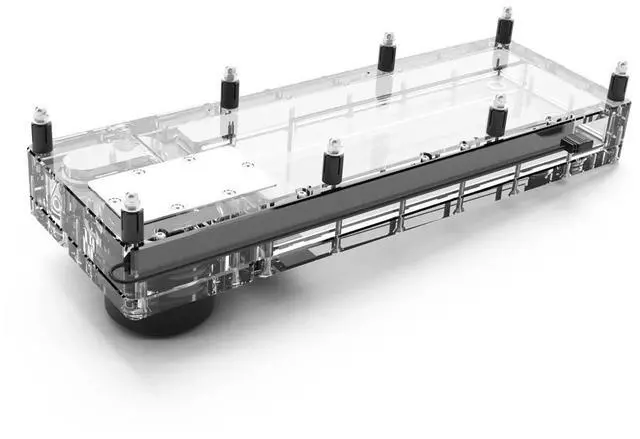

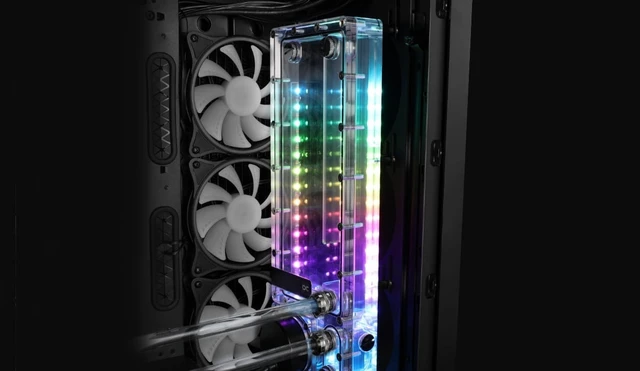

The Alphacool Core Flat Reservoir 360 Right with VPP Pump is a flat 360 mm reservoir made entirely of acrylic, with a VPP pump already pre-mounted. The reservoir itself measures 360.00 x 125.00 x 45.14 mm and holds 500ml. The same reservoir without a pump is the Core Flat Reservoir 360 Right D5/VPP.

Properties

• Pump: VPP, pre-mounted, 2500 - 4500 RPM
• Capacity: 500ml
• Ports: 5x G1/4, 1x drain port
• Size (L x W x H): 360.00 x 125.00 x 45.14 mm, 360.00 x 125.00 x 91.79 mm with pump
• Maximum flow rate: 340L/h

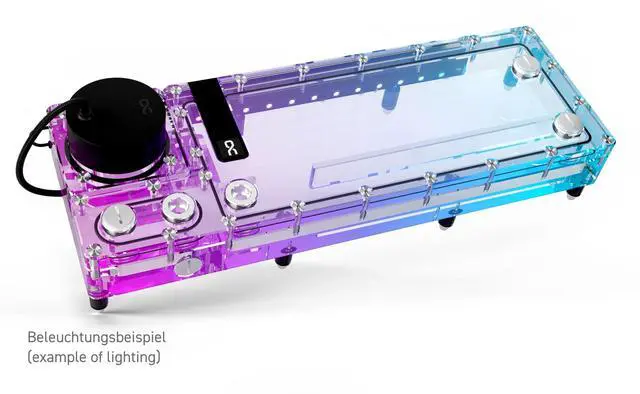

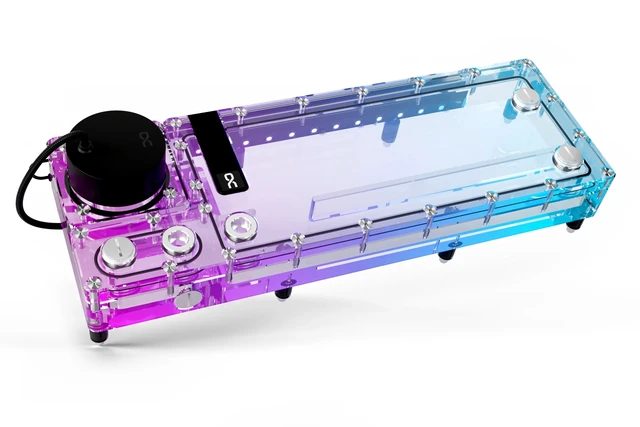

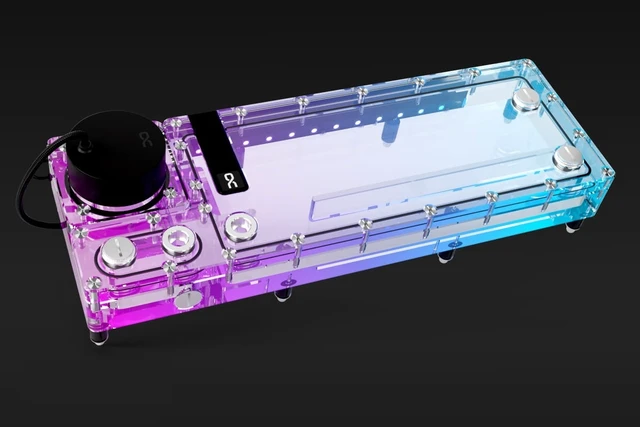

• Lighting: 17 digital aRGB LEDs, 5V

Core Design

The chrome-plated G1/4 connections made of brass are a key element of Alphacool's Core Design series. In this reservoir the connections are recessed rather than screwed into a thread. That is Alphacool's way of bypassing the problem of possible leaks due to cracking from the direct screwing of connections into the acrylic. Each connection is in two parts, fitted with an O-ring, and the parts counter each other when mounted in the acrylic. According to Alphacool this not only ensures absolute sealing of each connection but also allows for the clear and functional appearance of the series.

What the loop needs

The pump is pre-mounted and has two cables, 4-Pin PWM and SATA, each 48 cm long. The manual shows the configuration of inlet and outlet, and connections you leave unused take the four G1/4 plugs in the box. For pump installation, the manual says to tighten the four M4x22 pump screws with 1.5Nm.

Technical data

• Dimensions (L x W x H): 360.00 x 125.00 x 45.14 mm
• Volume (reservoir): 500ml
• Material: Acryl
• Pump compatibility: D5/VPP
• Threads: 5x G1/4 inner thread / 1x drain port
• Maximum working temperature: 60 °C
• Pressure tested: 0.8 Bar
• Quantity digital aRGB LEDs: 17
• Voltage digital aRGB LEDs: 5V
• Power connection digital aRGB LEDs: 3-Pin JST + 3-Pin 5V
• Color: transparent

Technical data pump

• Dimensions (Flat Reservoir with pump) (L x W x H): 360.00 x 125.00 x 91.79 mm
• Material pump: synthetic material
• Material pump cover: aluminum
• Material axle: ceramics
• Connections: 4-Pin PWM | SATA
• Rotational speed: 2500 - 4500 RPM
• Cable lengths: 4-Pin PWM - 48 cm | SATA - 48 cm
• Operating voltage: 8-13V DC / 14W IP32
• Starting voltage: 12V DC
• Maximum pumping head: 4.25 m
• Maximum flow rate: 340L/h
• Maximum working temperature: 60 °C
• Weight: 276g
• Color: black

Notes

• Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.

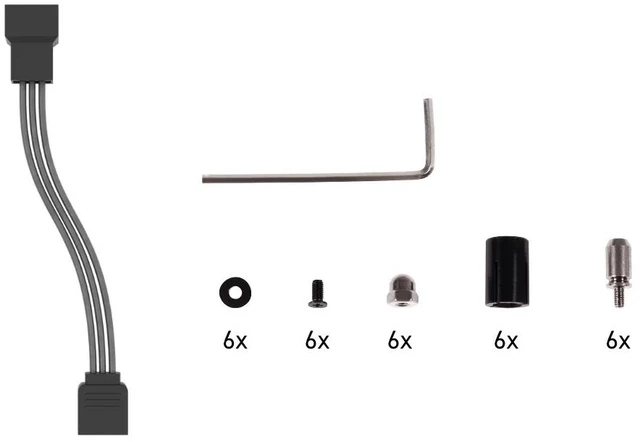

In the box

• 1x Core Flat Reservoir 360 Right
• 1x O-Ring
• 1x VPP-D5 Pump
• 1x Allen Key
• 4x M4x22 Pump Screw
• 6x Core Push Mount Set
• 4x G1/4 Plug
• 1x ARGB Adapter
