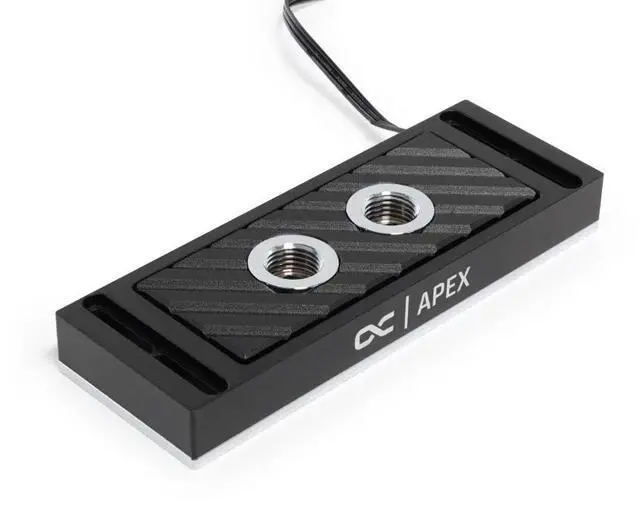

Alphacool Apex RAM X4 Water Cooler - Black (14000)

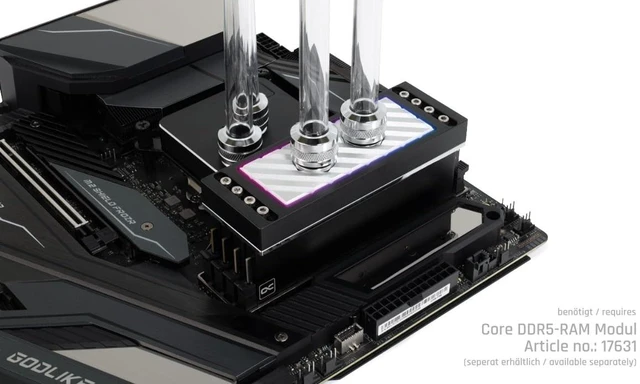

The Alphacool Apex RAM X4 Water Cooler - Black is a RAM water cooler with two G1/4 threads, and up to four RAM slots can be covered by this X4 cooler. Alphacool adds a note: additional Alphacool D-RAM modules are required for the RAM on which the cooler is mounted, and they are not in the box.

Properties

• Fits: Up to four RAM slots, on Alphacool D-RAM modules

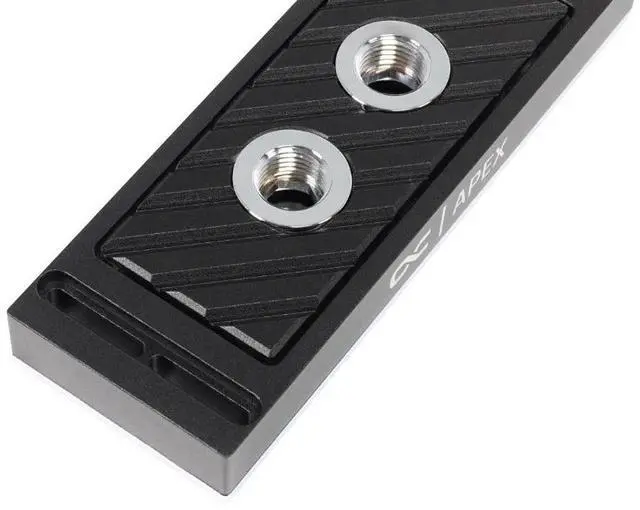

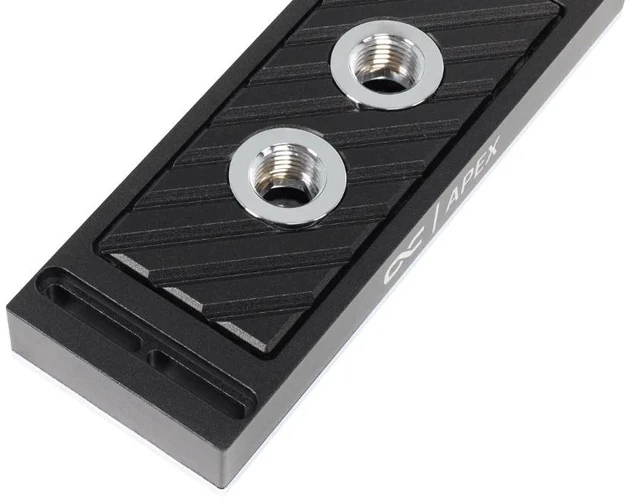

• Ports: 2 x G1/4

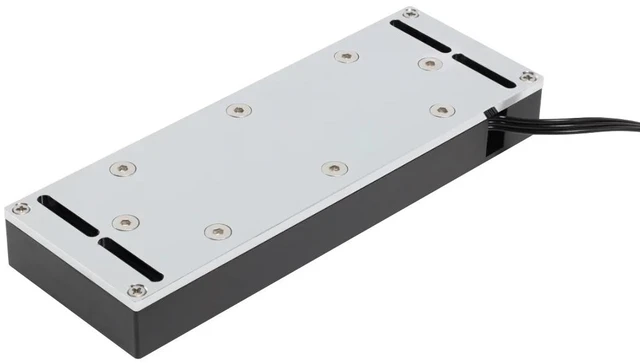

• Cooler base: Nickel-plated copper, 3 mm thick
• Cooler top: Aluminum, black
• Size (L x W x H): 127.50 x 45.00 x 17.30 mm

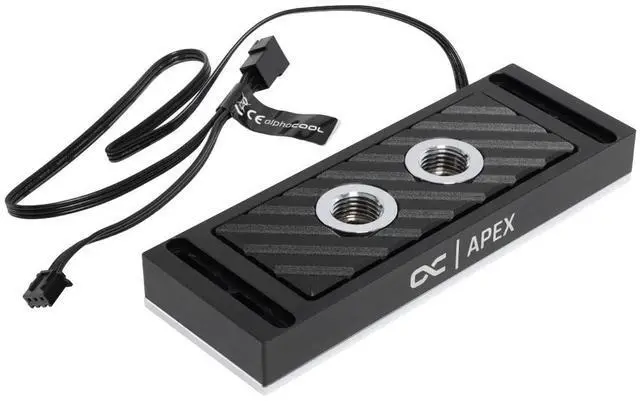

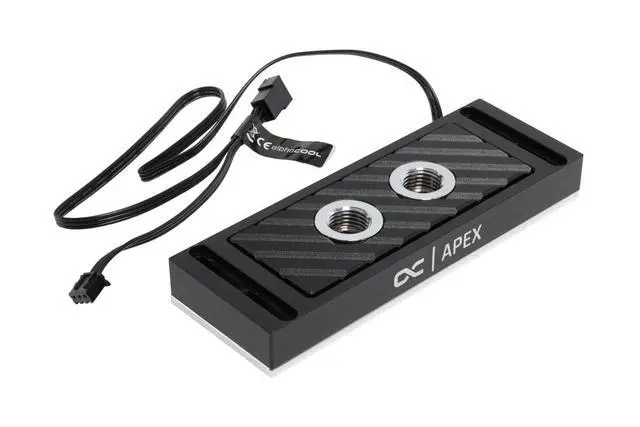

• Lighting: 5 digital aRGB LEDs, 3-Pin 5V

High-quality RAM cooler

As RAM is becoming more and more powerful, Alphacool finds it advisable to reliably dissipate the resulting waste heat with a water cooler. Modern hardware produces more and more of that heat, which is why Alphacool calls powerful and reliable cooling essential. The X4 with its 3 mm thick nickel-plated copper cooler base offers precisely these features, in its words. It is optimized specifically for the latest RAM generation. In combination with the D-RAM modules, Alphacool says the cooler offers maximum cooling performance for your memory.

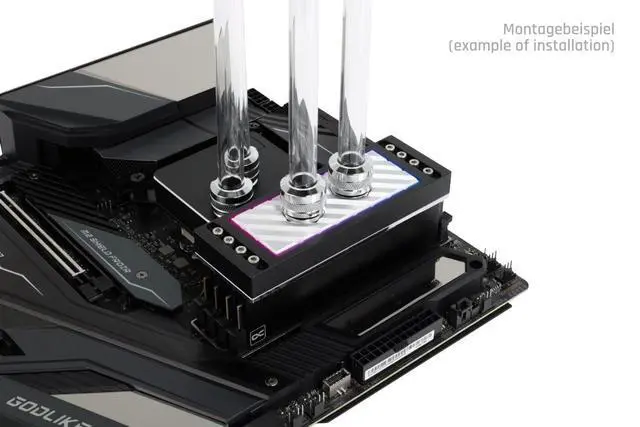

Installation

Alphacool describes installation as straightforward. The manual has the RAM modules placed in an upright position, with a thermal pad on each. Place the pads with a little distance to the mounting holes, to keep the holes free on both sides. Then place the cooler on top and fasten it with the M3x18mm screws and the Allen key.

Apex Design

Alphacool says the Apex product line represents its highest level of perfection. It adds that first-class materials and innovative technologies guarantee a unique premium product. The design language harmonizes perfectly with other Apex products, creating what Alphacool calls an impressive overall picture. The Apex optics and the lighting ensure a stylish appearance.

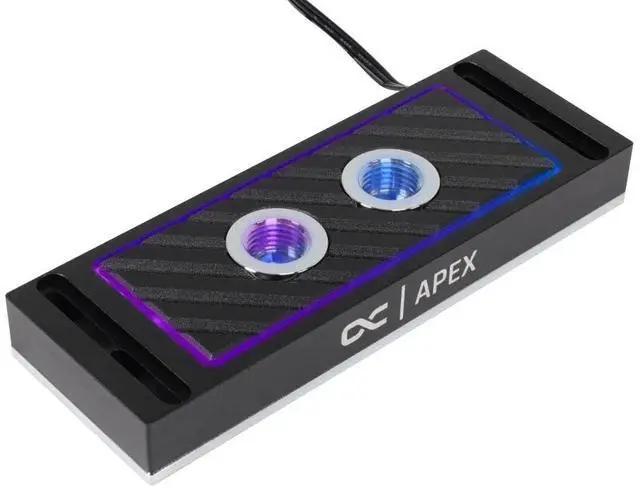

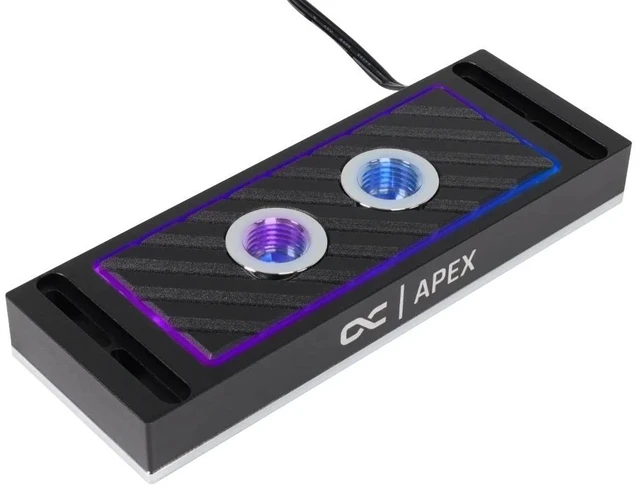

Digital aRGB lighting

A total of five aRGB LEDs provide lighting that Alphacool describes as discreet but impressive. Each LED is individually controllable, via a corresponding controller or via the mainboard, which opens up many creative possibilities. The ARGB adapter in the box makes the connection.

What the loop needs

The cooler has two ports, so it takes two G1/4 compression fittings.

Technical data

• Dimensions (L x W x H): 127.50 x 45.00 x 17.30 mm
• Material cooler top: Aluminum
• Material water-bearing components: PMMA (plastic)
• Material cooler base: Nickel-plated copper
• Threads: 2 x G1/4
• Power supply Digital aRGB: 3-Pin 5V
• Quantity digital aRGB LEDs: 5
• Pressure tested: 8 bar
• Max working temperature: 60 °C
• Weight: 270 g
• Color: black

Notes

• Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.

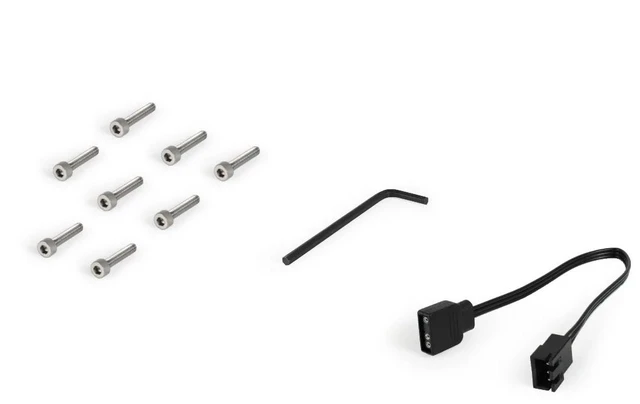

In the box

• 1x Apex RAM X4 Water Cooler
• 4x 105x7x0.5mm Pad
• 8x M3x18mm Screw
• 1x Allen Key
• 1x ARGB Adapter
