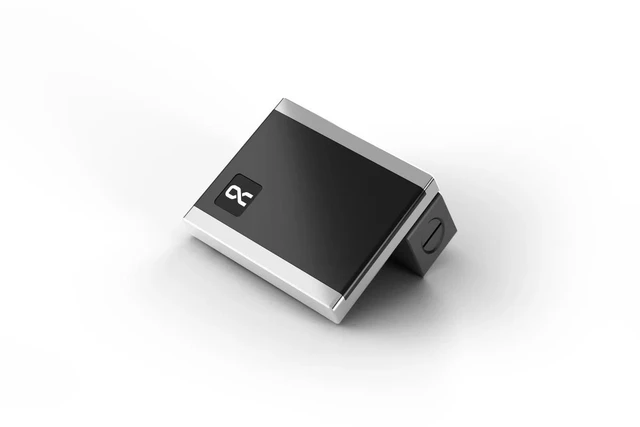

Alphacool Eisblock Aurora 180° Terminal (13763)

The Alphacool Eisblock Aurora 180° Terminal is a replacement terminal for Alphacool GPU water blocks, with three G1/4 threads for the input and three for the output. Alphacool lists it for all Eisblock Aurora coolers and for all Core coolers of the RTX 5XXX and AMD RX 9XXX series. It is not compatible with the Core coolers of the RTX 4XXX and RX 7XXX series.

Properties

• Fits: Eisblock Aurora coolers, Core coolers for RTX 5XXX and RX 9XXX
• Threads: 3x G1/4 In, 3x G1/4 Out
• Size (L x W x H): 84.00 x 31.00 x 61.60 mm
• Material: Chrome-plated brass and acetal, aluminum cover
• Color: Black, chrome

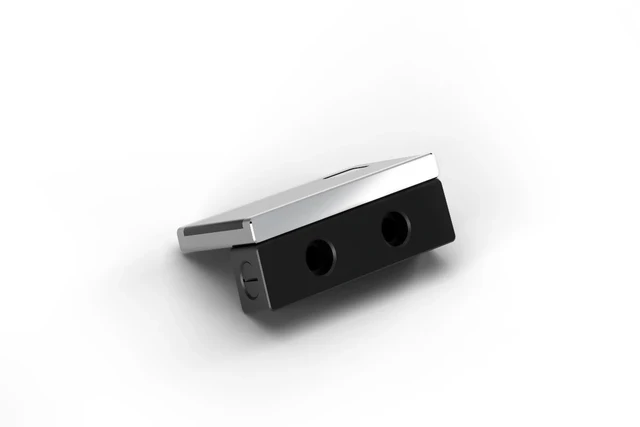

Flexible connections

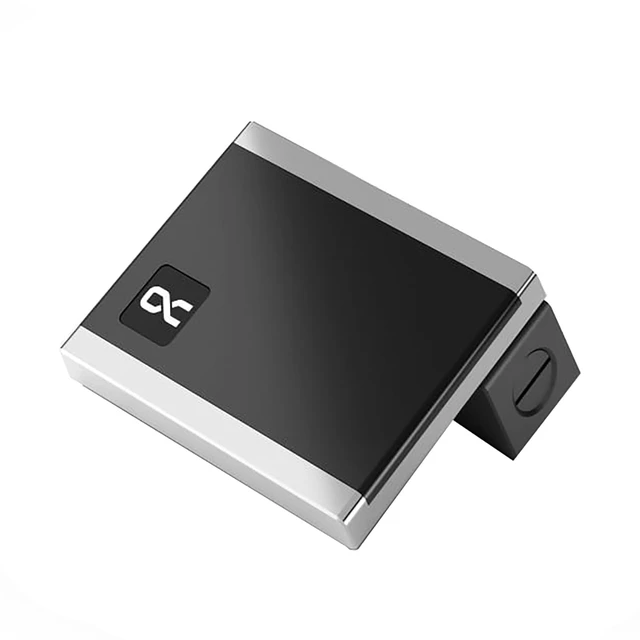

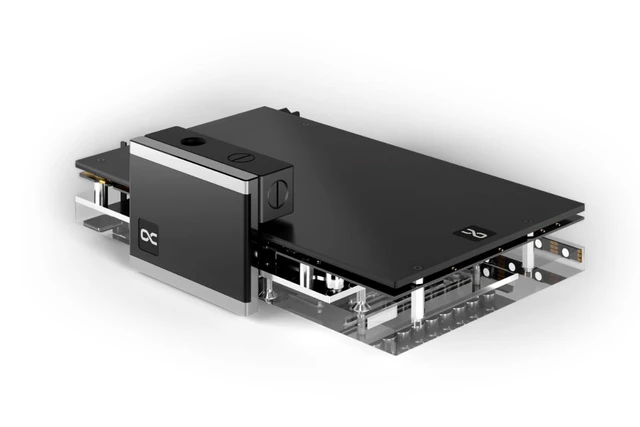

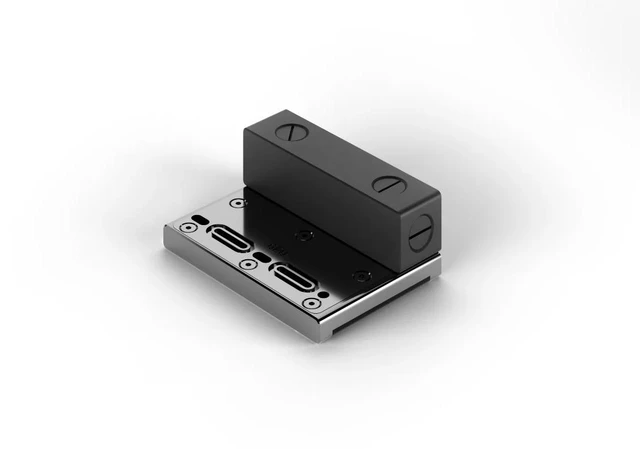

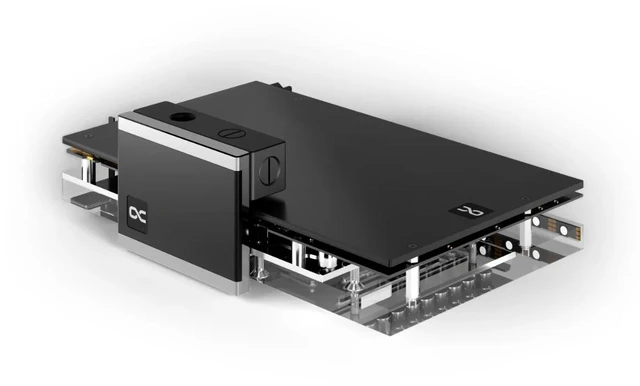

This part replaces the standard terminal of the GPU cooler and allows flexible connection options. It positions the connections above the backplate, significantly reducing the depth of the cooling block. Each input and output has three possible positions: top, side and rear. Alphacool says the terminal offers maximum flexibility and suits extensive modding projects or systems with limited space. It also says the elegant design is perfected by a magnetic cover, which is aluminum and not water-bearing.

What the loop needs

Two of the six threads are used, one in and one out, each with a compression fitting for your tube size, which is not in the box. The manual says the terminal has two separate chambers, so one port on side 1 and one port on side 2 must serve as inlet and outlet to ensure that the cooler is cooled. Close the unused inlets and outlets with the four G1/4 plugs that come with it. Alphacool's note: please follow the manual for the correct flow direction of the water.

Installation

The manual shows the swap in a few steps. Remove the cover with a slotted screwdriver, loosen the three screws, take off the standard terminal and remove the old O-rings. The new terminal goes on with the two O-rings and the three M4x14mm screws from the box.

Technical data

• Dimensions (L x W x H): 84.00 x 31.00 x 61.60 mm
• Material (water-bearing elements): Chrome-plated brass, acetal
• Material magnetic cover (not water-bearing): Aluminum
• Threads: 3x G1/4 In | 3x G1/4 Out
• Pressure tested: 0.8 bar
• Max working temperature: 60 °C
• Weight: 320 g
• Color: black, chrome

Notes

• Alphacool asks that the terminal be used only with clear transparent water cooling fluids. It warns that the particles and additives in Pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, and that this can void the manufacturer's warranty.

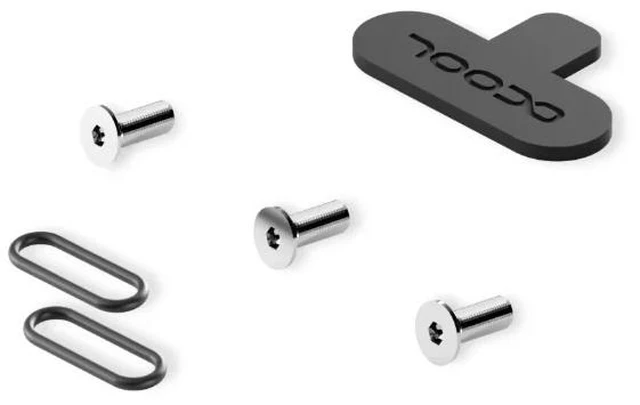

In the box

• 1x GPU 180° Terminal
• 3x M4x14mm Screw
• 4x G1/4 Plug
• 1x Plug tool
• 2x O-Ring
