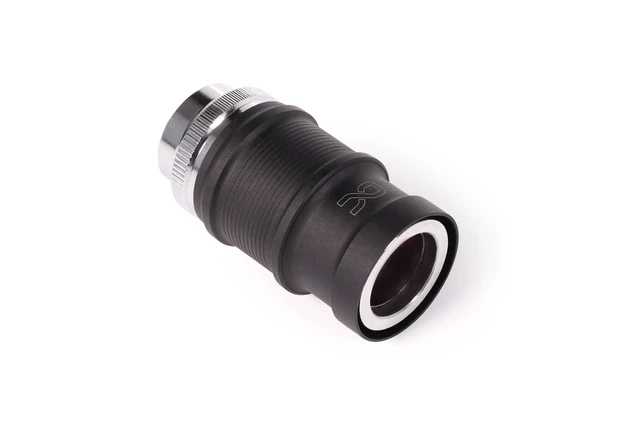

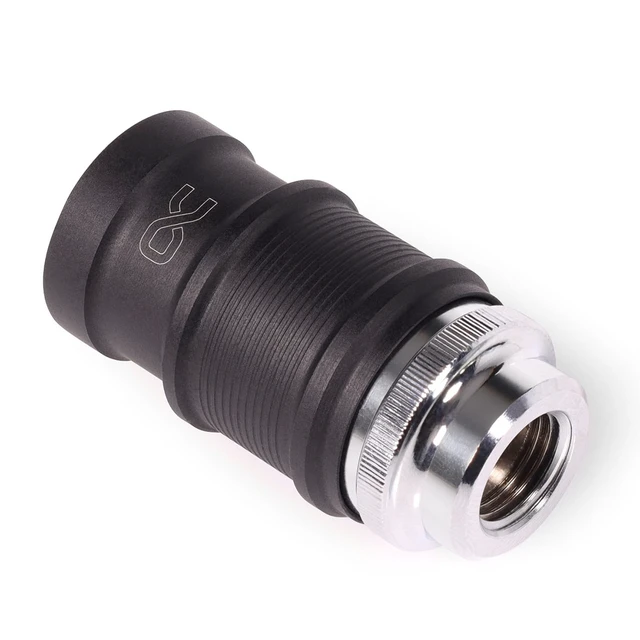

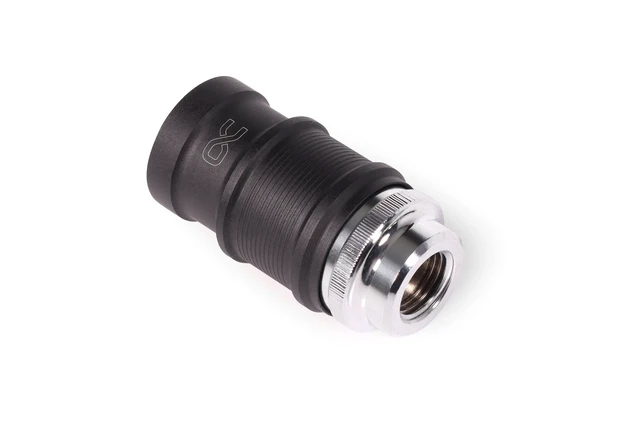

Alphacool ES Quick Release BLH1A PushIn Female IT Fitting, Nickel Plated Brass (13883)

The Alphacool ES Quick Release BLH1A PushIn Female IT is the female half of a quick-release connector with one G1/4 inner thread (IT), one fitting per pack. With this product you only get 1 half of the quick-release fastener, so a male half has to be ordered with it. The ES connector is optimized for use in server and workstation systems.

Properties

• Thread: 1x G1/4 IT
• Size (L x D): 52 x 28 mm
• Material: Nickel-plated brass, plastic
• Color: Chrome, black
• Pieces in the pack: 1

Maximum flow rate

Other quick couplings can negatively affect the flow of water, Alphacool says. This quick coupling has therefore been fundamentally redesigned so that the water flow is hardly disrupted, and particular emphasis was placed on minimal processing tolerances. Alphacool says the connector is characterized by precise manufacturing quality, excellent water flow and a secure click mechanism for sealing. Its data sheet adds a high-quality finish.

Quick and easy

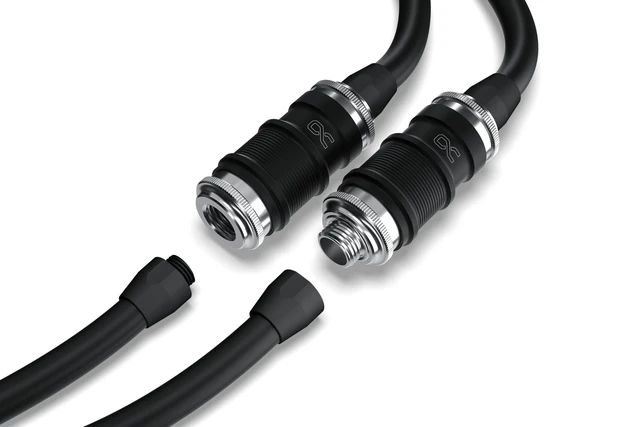

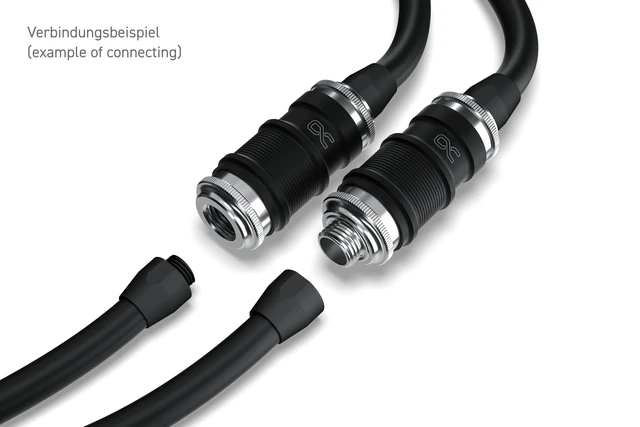

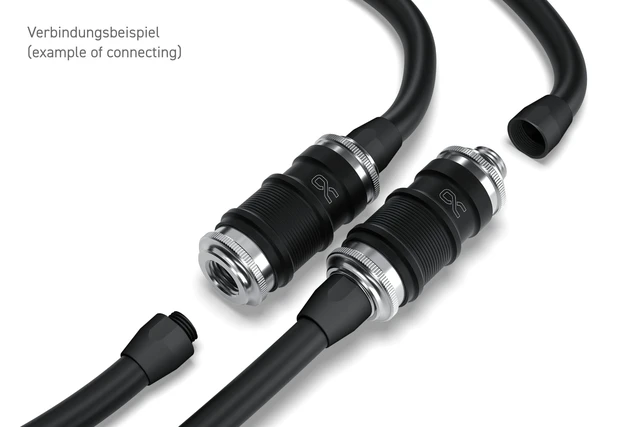

Alphacool's ES quick connectors simplify the assembly of server and workstation systems: thanks to the convenient handling, complex systems can be connected quickly and easily. The outer ring is pulled back to open the quick-release fastener. Its seal closes immediately and prevents coolant from escaping. To lock the quick-release fasteners, simply push them into each other until a clicking noise confirms secure locking.

What a run needs

A quick-release fastener always consists of two fittings, and you always need the right counterpart to create a complete quick release fastener. The male halves of the BLH1A PushIn series we stock are the Male IT and the Male OT. The inner thread takes a fitting with a G1/4 outer thread, such as the compression fittings.

Technical data

• Dimensions (L x D): 52 x 28 mm
• Weight: 95 g
• Material: nickel-plated brass, plastic
• Thread: 1x G1/4 IT
• Color: chrome, black

Notes

• Note: to avoid damaging the O-ring, do not open or close the quick-release fastener when it is dry.
• Alphacool's note on application: use the connector only with clear, transparent water cooling fluids. The particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses.

In the box

• 1x Alphacool ES Quick Release BLH1A PushIn Female IT
