Alphacool Eisbaer Aurora 360 CPU - Digital RGB V1.1, 360mm, Copper (10231)

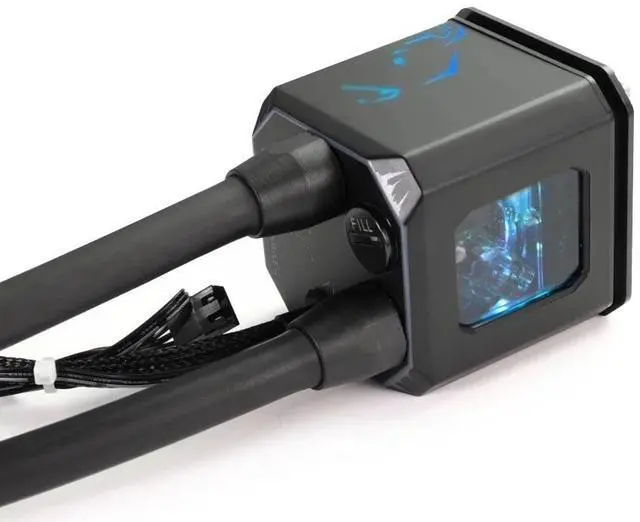

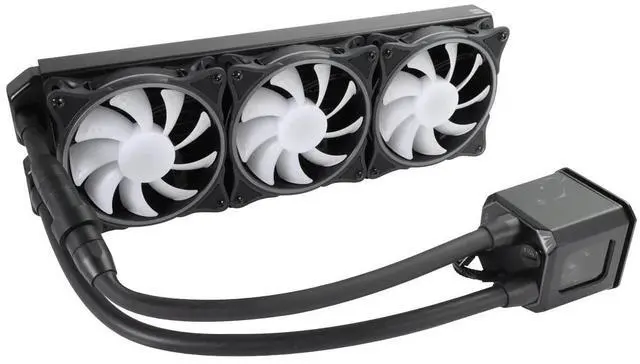

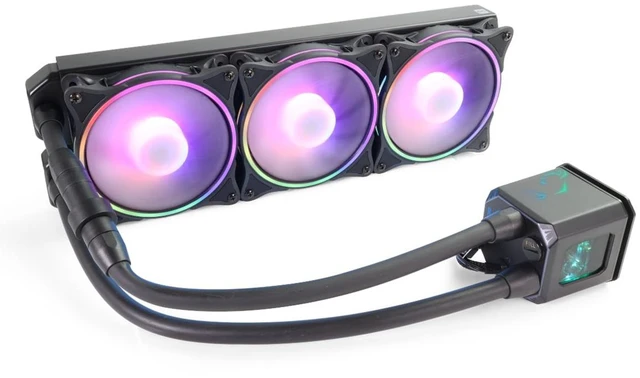

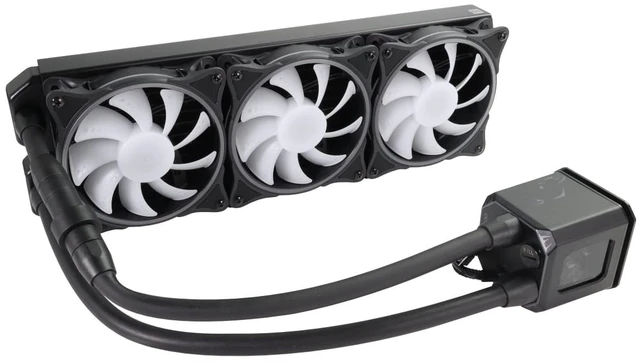

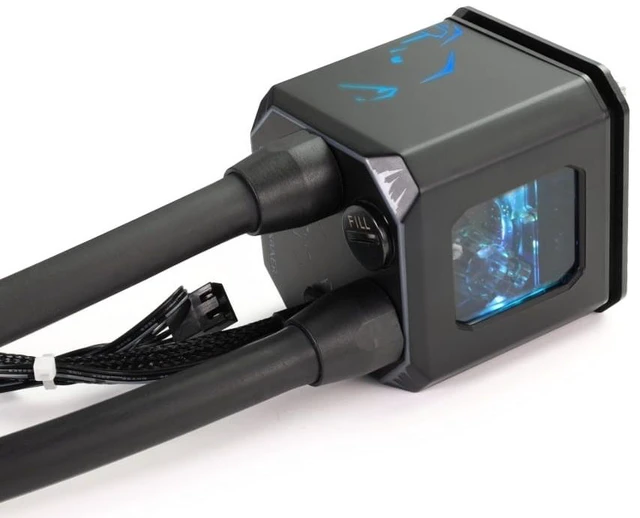

The Alphacool Eisbaer Aurora 360 CPU - Digital RGB V1.1 is an AIO liquid cooler with a 360 mm copper radiator for AMD AM4, AM5 and TR4 and Intel LGA 1200, 1700 and 1851. The complete socket list is below. It arrives prefilled, can be refilled through a fill port and can be expanded via quick-release fasteners. The 240 mm cooler of the series is the Eisbaer Aurora 240 CPU - Digital RGB.

Properties

• Intel sockets: LGA 1150, 1151, 1155, 1156, 1200, 1700, 1851, 2011, 2011-3, 2066, 755
• AMD sockets: AM2, AM2+, AM3, AM3+, AM4, AM5, FM1, FM2, FM2+, sTRX4, TR4
• Radiator: 360 mm, 397 x 124 x 30 mm, copper
• Fans in the box: Rise Aurora 120 mm, 0 - 2500 RPM
• Pump: DC-LT, 2600 RPM

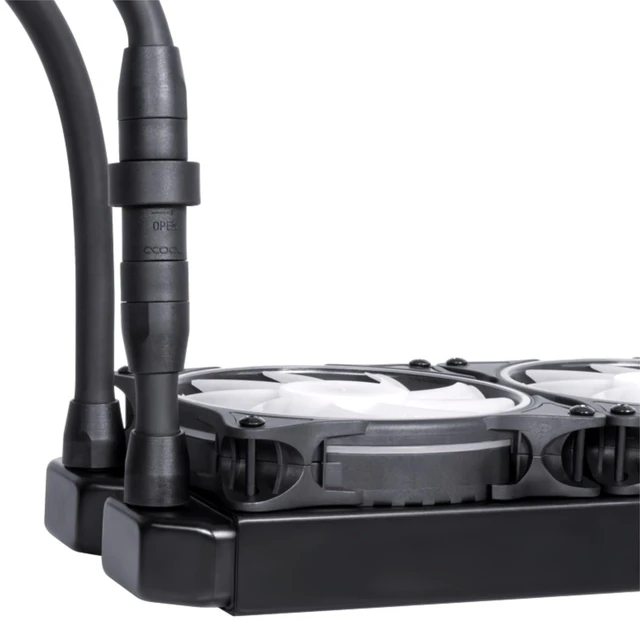

• Tubes: TPV, expandable by quick release

Technical data radiator

• L x W x H: 397 x 124 x 30 mm
• Material: full copper (solid copper)
• Threads (connections): 2x G1/4
• Max working temperature: 60 °C
• Pressure tested: 0.8 bar

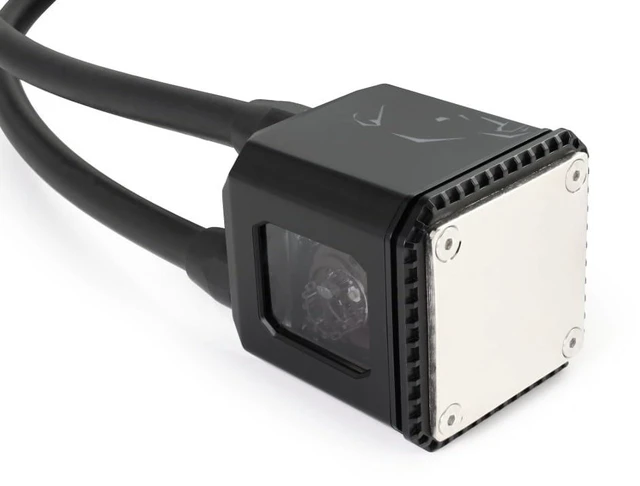

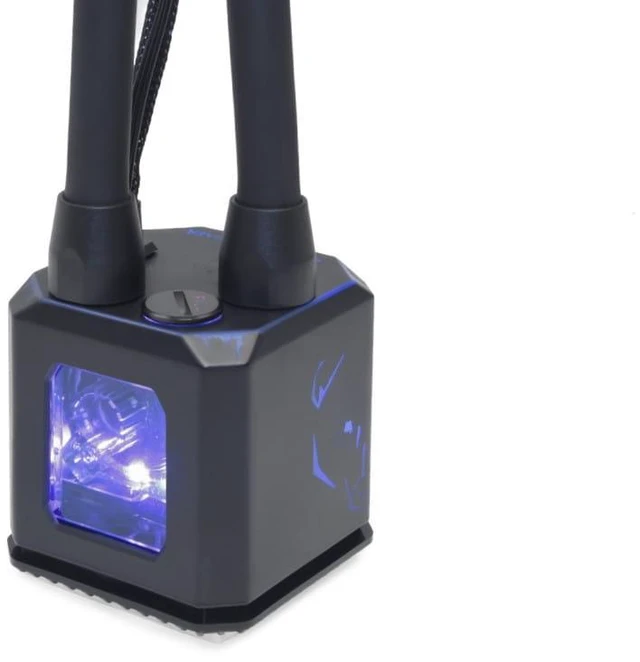

Technical data pump housing

• L x W x H: 66 x 66 x 69 mm
• Material reservoir (expansion tank): transparent nylon
• Threads (connections): 2x G1/4
• Connection Digital aRGB: 3-Pin JST + 3-Pin 5V
• Quantity Digital aRGB LED: 10

Technical data pump

• Speed: 2600 RPM
• Voltage (tension): 6-13.5V DC
• Power consumption: 3.2 W
• Maximum flow rate: 72 L/h
• Maximum head (delivery head): 1 m

Technical data fans

• Speed: 0 - 2500 RPM (+/- 10%)
• Static pressure: 3.17 mm H2O
• Air flow rate: 118.9 m³/h
• Volume max: max. 31.5 dB(A)

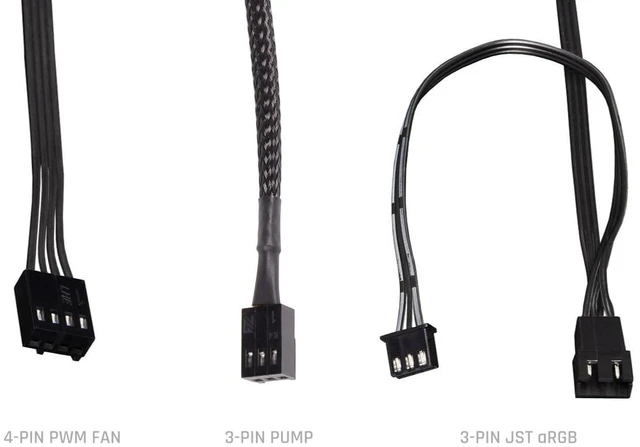

• Fan connector: 4-Pin PWM
• Connection Digital aRGB: 3-Pin JST + 3-Pin 5V

Notes

• Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.
• The manual says topping up is normally not necessary, and advises checking the water level after expanding the circuit. For topping up it recommends Alphacool's own clear coolants (CKC or Eiswasser Crystal, no UV) or pure distilled or osmosis filtered water.
• If the pump is unusually loud at first start, the manual blames air bubbles from transport and suggests tipping the case back and forth a little. After around 12 hours of operation the air should be gone.

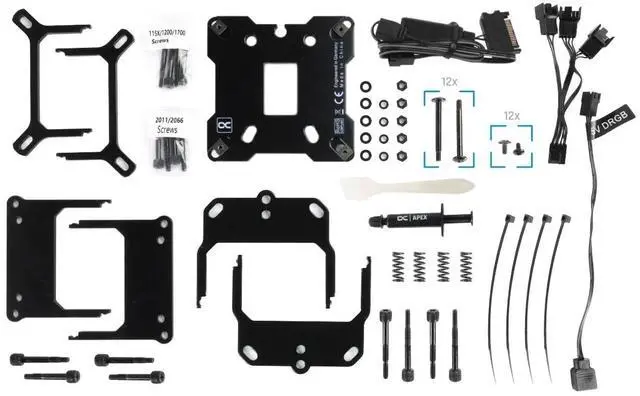

In the box

• 1x Alphacool Eisbaer Aurora 360 CPU cooler (radiator, fan & cooler)
• 12x M3x5 screws
• 12x M3x30 screws
• 1x thermal paste
• 4x springs
• 4x 0.5 mm washers
• 4x 2 mm washers
• 4x nuts
• 1x Y-adapter 4-pin PWM
• 1x digital-RGB controller
• 1x digital-RGB adapter
• 1x set AMD mountings
• 1x set Intel mountings
• 1x backplate
