Alphacool Core Geforce RTX 5080 EPIC-X with Backplate (14740)

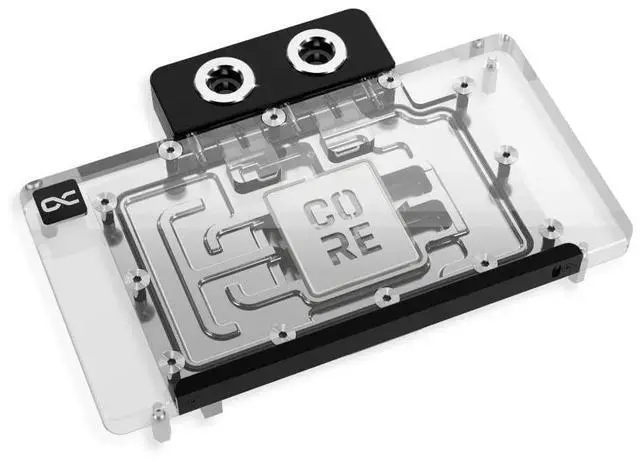

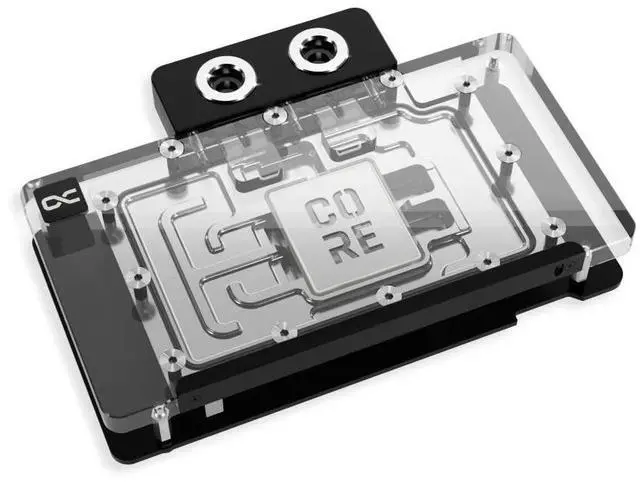

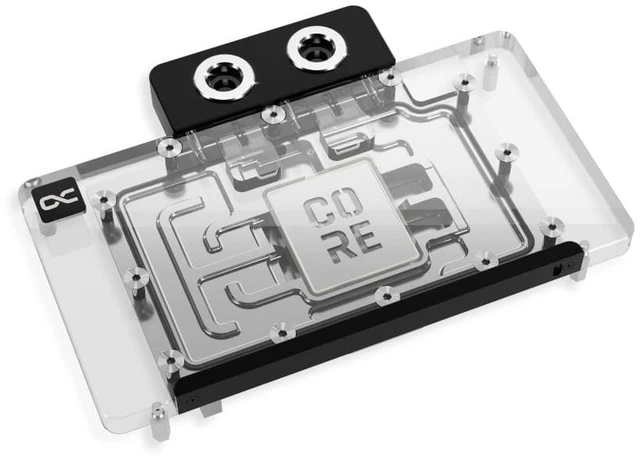

Alphacool presents the new graphics card water coolers for the latest Nvidia Geforce RTX generation. They are part of the Core product series and combine the highest quality with exceptional performance. Thanks to an optimized technical design, these GPU coolers offer outstanding cooling performance.

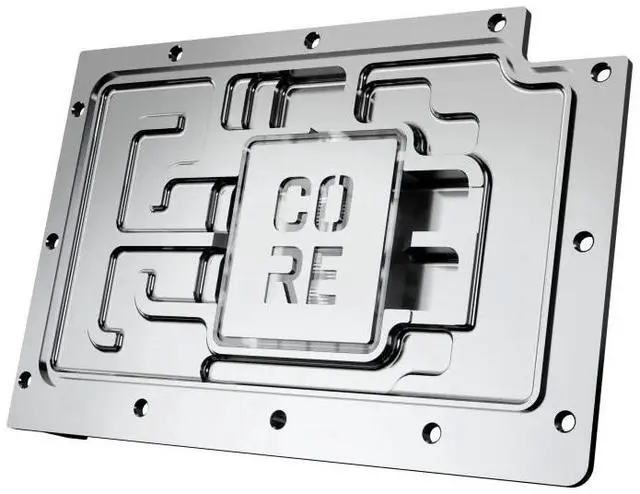

At the center of the cooler is the copper cooler milled from a single piece, complemented by a precisely machined brass connection terminal with a nylon cover. Chrome plating makes the copper cooler more durable and ensures a smoother and brighter surface than conventional nickel plating.

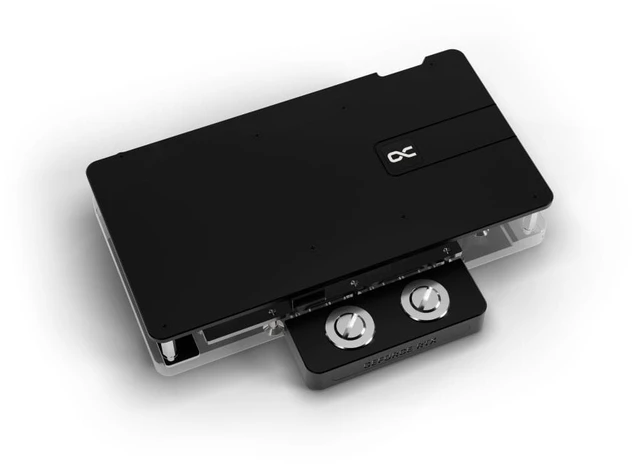

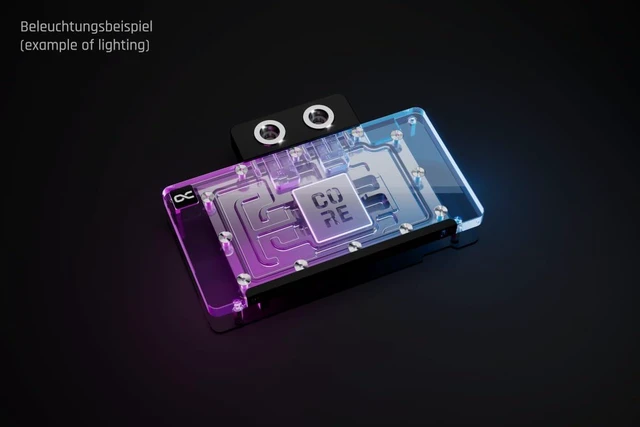

The visual design of the GPU water cooler has been changed only slightly. A special highlight is the newly added Core emblem above the jet plate, which underlines the affiliation with the Core series and visually enhances the design. The series continues to rely on high-quality brass connectors that guarantee optimal quality and safety. The specially adapted aluminum backplate covers the entire back of the copper cooler and ensures a clear and uniform appearance. The acrylic, combined with the aRGB lighting, enables uniform and impressive illumination of the entire cooler.

Technically, the GPU water cooler has been completely redesigned. To optimize cooling performance, the gaps between the cooler and the PCB components were redefined and tested. The water flow was simulated using state-of-the-art software and verified in practical tests. These extensive tests enabled improvements to the cooler base and nozzle to ensure the best possible cooling performance for the new Nvidia GeForce RTX generation.

Compatibility:
- PNY GeForce RTX 5080 ARGB EPIC-X RGB Overclocked Triple Fan GPU
- PNY GeForce RTX 5080 ARGB EPIC-X RGB Triple Fan GPU
- PNY GeForce RTX 5080 Overclocked Triple Fan GPU
- PNY GeForce RTX 5080 Triple Fan GPU

Technical data cooler
Complete dimensions (L x W x H)
180 x 124.10 x 34.07mm
Radiator base material
chrome-plated copper
Material radiator top
Acrylic
Material Terminal
nylon
Material connection thread
Brass
Maximum working temperature
60°C
Pressure tested
0.8 bar
Connections
4 x G1/4"
Thickness of radiator base
3.25mm
Thick cooling fins
0.4mm
Distance between cooling fins
0.4mm
lighting
digital aRGB LEDs
Power connection digital aRGB LEDs
3-pin JST
Voltage digital aRGB LEDs
5V
Number of digital aRGB LEDs
7
Color
transparent

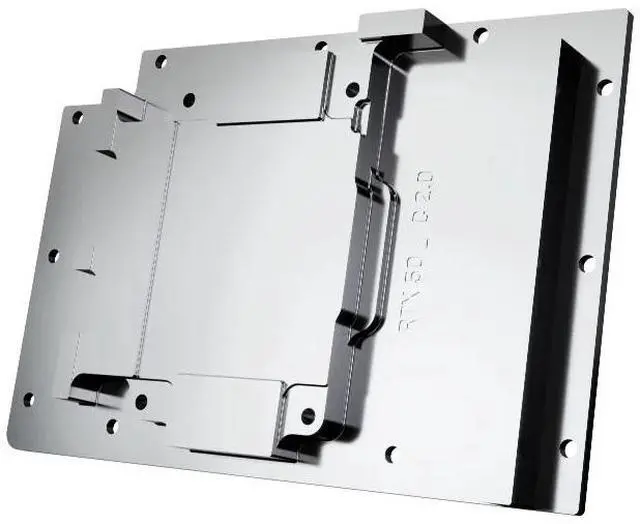

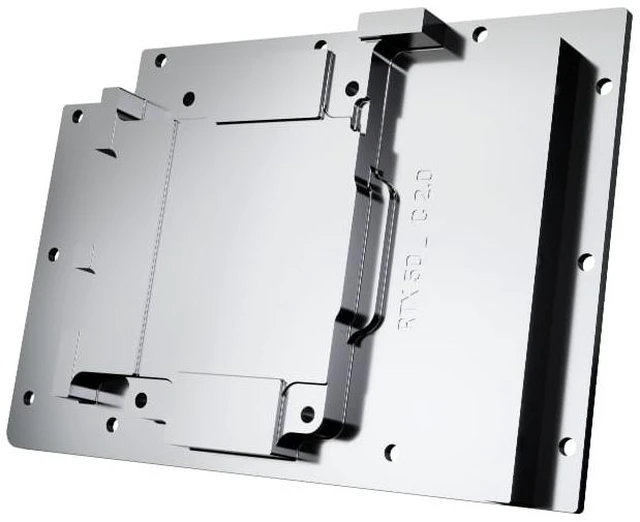

Technical data backplate
Dimensions (L x W x H)
180.00 x 95.57 x 6.00mm
Thick backplate without spacers
3mm
material
aluminum
