Alphacool Core Geforce RTX 5080/5070Ti GamingPro with Backplate GPU Water Block, G1/4, Chrome Plated Copper, ARGB (14741)

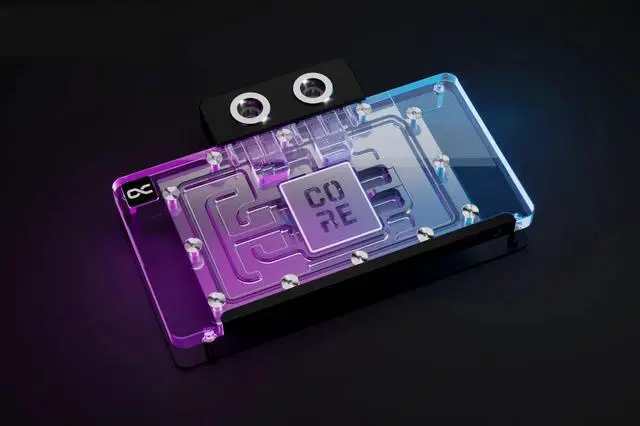

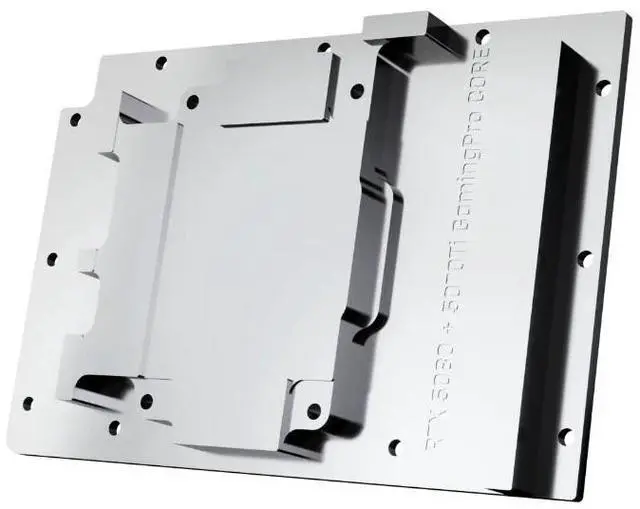

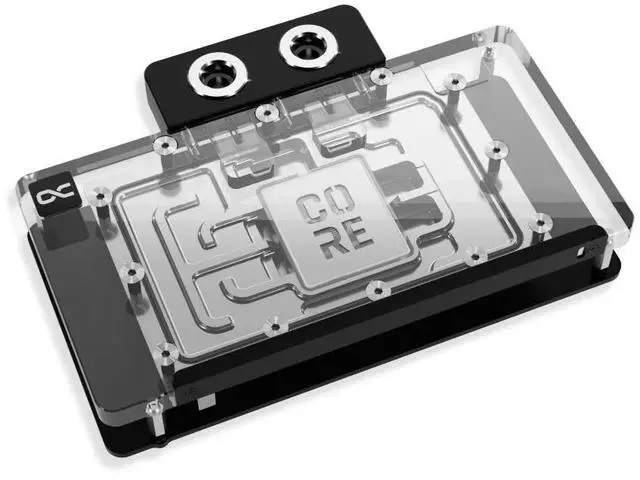

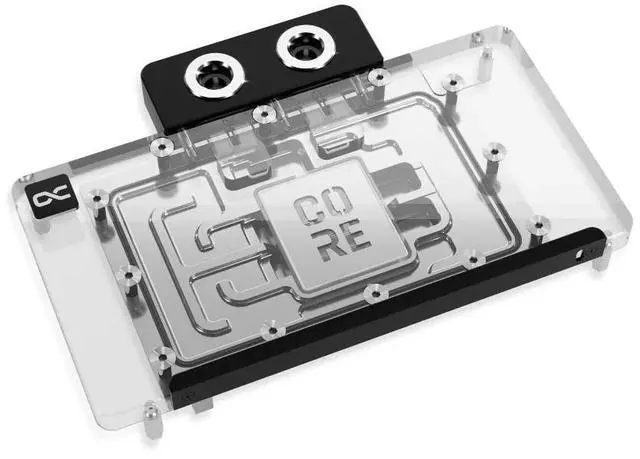

The Alphacool Core Geforce RTX 5080/5070Ti GamingPro with Backplate is a GPU water block for five Palit GamingPro graphics cards with the Nvidia GeForce RTX 5080 or RTX 5070 Ti chip. The Palit GeForce RTX 5080 GamingPro OC and the RTX 5070 Ti GamingPro are two of them. A chrome-plated copper block under an acrylic top cools the card, and the aluminum backplate is in the box.

Properties

• Fits: Palit GamingPro, GeForce RTX 5080 and RTX 5070 Ti

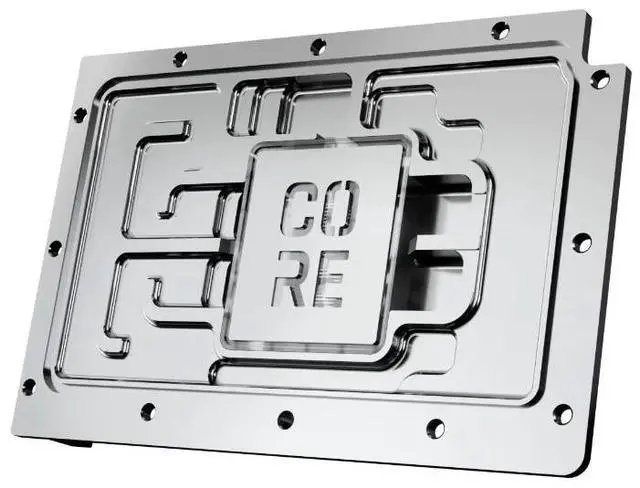

• Cold plate: Chrome-plated copper
• Top: Acrylic, transparent
• Ports: 4 x G1/4
• Backplate: Aluminum, included
• Lighting: 8 digital aRGB LEDs, 5V

Compatibility

Alphacool lists these cards for this block:

• Palit GeForce RTX 5070 Ti GamingPro (NE7507T019T2-GB2031A)
• Palit GeForce RTX 5070 Ti GamingPro OC (NE7507TS19T2-GB2031A)
• Palit GeForce RTX 5070 Ti GamingPro V1 (NE7507T019T2-GB2031Y)
• Palit GeForce RTX 5080 GamingPro (NE75080019T2-GB2031A)
• Palit GeForce RTX 5080 GamingPro OC (NE75080S19T2-GB2031A)

The block was built for one PCB layout, and a card maker may revise its board so that the cooler no longer fits later models. Before ordering, compare your card and its part number with the pictures in Alphacool's GPU configurator, or find it in the Compatibility List for Nvidia cards.

Technical data cooler

• Dimensions total (L x W x H): 184.70 x 125.32 x 34.19 mm
• Material cooler: chrome-plated copper
• Material cooler top: Acrylic
• Material terminal: Nylon
• Material Connection thread: Brass
• Max working temperature: 60 °C
• Pressure tested: 0.8 bar
• Threads: 4 x G1/4
• Thickness cooler bottom: 3.25 mm
• Thickness cooling fins: 0.4 mm
• Distance cooling fins: 0.4 mm
• Illumination: digital aRGB LEDs
• Power connector digital aRGB LEDs: 3-Pin JST
• Power digital aRGB LEDs: 5V
• Number of digital aRGB LEDs: 8
• Color: transparent

Technical data backplate

• Dimensions (L x W x H): 184.70 x 96.75 x 6.00 mm
• Thickness backplate without spacers: 3 mm
• Material: Aluminum

Notes

• Alphacool asks that the block be used only with clear transparent water cooling fluids. It warns that the particles and additives in Pastel liquids can clog and permanently damage water cooling products, from the radiator and pump to coolers and hoses. That can also void the manufacturer's warranty.
• Remove the original cooler on an antistatic mat and clean the card of thermal paste and pad residues before fitting the block.

In the box

• 1x Core Geforce RTX 5080/5070Ti GamingPro cooler
• 1x Backplate
• 1x 55x15x1mm Pad
• 2x 26x15x1mm Pad
• 1x 83x8x1mm Pad
• 3x 15x8x1mm Pad
• 1x 8x8x1mm Pad
• 2x 26x8x3mm Pad
• 1x 55x8x3mm Pad
• 1x 45x45x3mm Pad
• 1x 20x8x3mm Pad
• 1x Thermal Grease
• 1x Putty tool
• 1x ARGB Adapter
• 1x Plug tool
• 1x Screwdriver
• 2x G1/4 Plug
• 8x M2x10mm screws
