Alphacool Core RX 9070 XT Taichi with Backplate GPU Water Block, G1/4, Chrome Plated Copper, ARGB (14752)

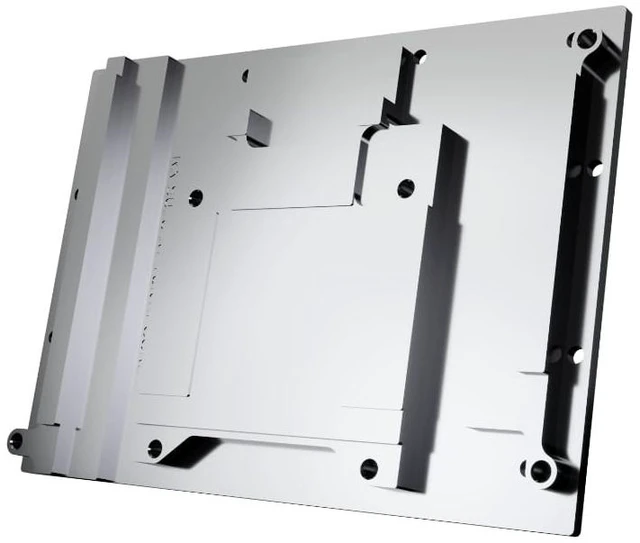

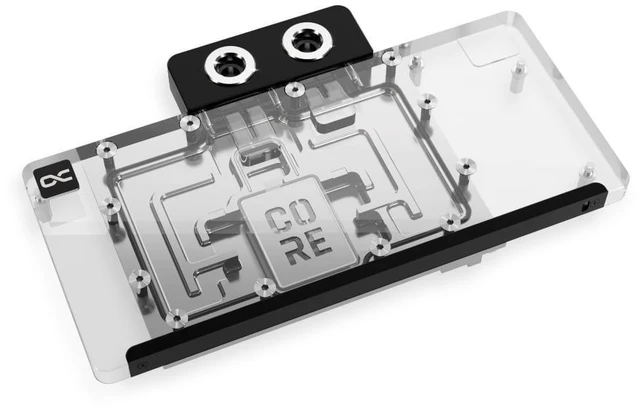

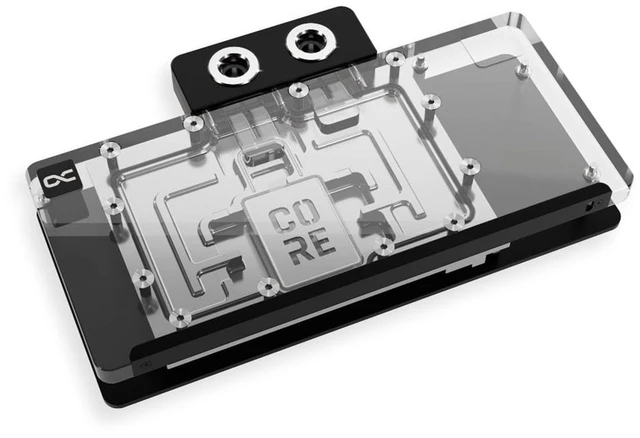

The Alphacool Core RX 9070 XT Taichi with Backplate is a GPU water block for one graphics card with an AMD chip: the ASRock AMD Radeon RX 9070 XT Taichi 16GB OC. It cools the card with a chrome-plated copper block under an acrylic top, and the aluminum backplate is in the box.

Properties

• Fits: ASRock Radeon RX 9070 XT Taichi 16GB OC

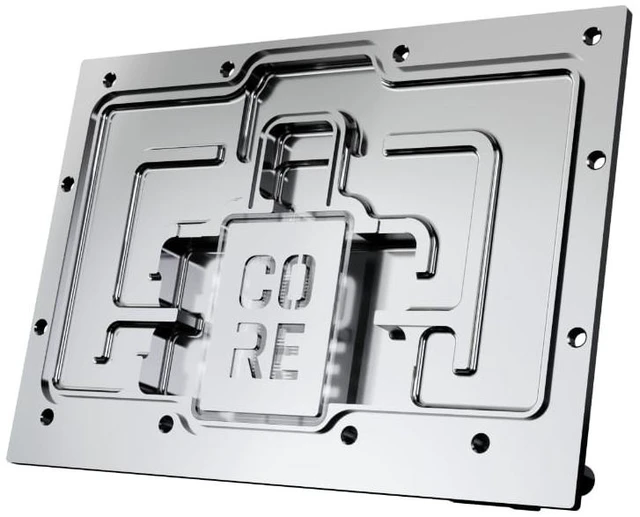

• Cold plate: Chrome-plated copper
• Top: Acrylic, transparent
• Ports: 4 x G1/4
• Backplate: Aluminum, included

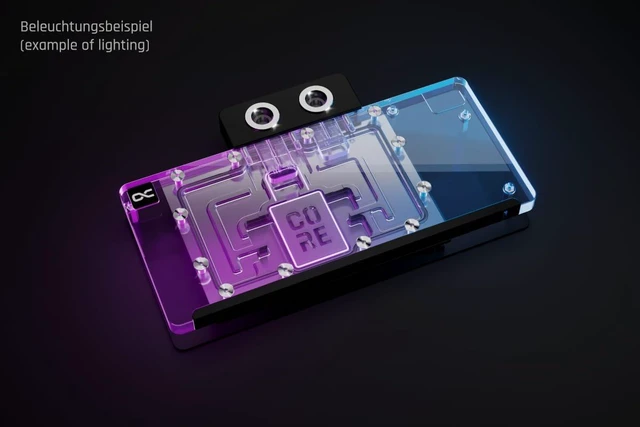

• Lighting: 10 digital aRGB LEDs, 5V

Compatibility

Alphacool lists these cards for this block:

• ASRock AMD Radeon RX 9070 XT Taichi 16GB OC

The block was designed for one PCB layout, and card makers sometimes revise a board so that a cooler no longer fits later models. Before ordering, compare your card and its PCB number with the pictures in Alphacool's GPU configurator, or look it up in its Compatibility List for AMD cards.

What the loop needs

The block has four G1/4 connections with brass threads. Two take the compression fittings for your tube size, which are not in the box, and the other two take the two plugs that are. The lighting has a 3-Pin JST power connection and runs at a voltage of 5V, and an ARGB adapter is included. Thermal pads, thermal grease, a putty tool, a plug tool, a screwdriver and the PCI bracket complete the box. The maximum working temperature is 60 °C.

Technical data cooler

• Dimensions total (L x W x H): 217.10 x 127.37 x 33.05 mm
• Material cooler: chrome-plated copper
• Material cooler top: Acrylic
• Material terminal: Nylon
• Material Connection thread: Brass
• Max working temperature: 60 °C
• Pressure tested: 0.8 bar
• Threads: 4 x G1/4
• Thickness cooler bottom: 3.25 mm
• Thickness cooling fins: 0.4 mm
• Distance cooling fins: 0.4 mm
• Illumination: digital aRGB LEDs
• Power connector digital aRGB LEDs: 3-Pin JST
• Power digital aRGB LEDs: 5V
• Number of digital aRGB LEDs: 10
• Color: transparent

Technical data backplate

• Dimensions (L x W x H): 217.10 x 98.80 x 6.00 mm
• Thickness backplate without spacers: 3 mm
• Material: Aluminum

Notes

• Alphacool asks that the block be used only with clear transparent water cooling fluids. It warns that the particles and additives in Pastel liquids can clog and permanently damage a radiator, a pump, coolers and hoses, and that this can void the manufacturer's warranty.
• Remove the original cooler on an antistatic mat and clean the card of thermal paste and pad residues before fitting the block.
• The manual has the IO shield secured with 3 screws from the graphics card's own scope of delivery.

In the box

• 1x Core RX 9070 XT Taichi cooler
• 1x Backplate
• 2x 40x15x1mm Pad
• 1x 31.5x15x1mm Pad
• 2x 86x8x1mm Pad
• 2x 56x8x1mm Pad
• 2x 8x8x1mm Pad
• 1x 31.5x8x3mm Pad
• 2x 40x8x3mm Pad
• 1x 45x45x3mm Pad
• 1x 20x8x3mm Pad
• 1x Thermal Grease
• 1x Putty tool
• 1x ARGB Adapter
• 1x Plug tool
• 1x Screwdriver
• 2x G1/4 Plug
• 11x M2x10mm screws
• 1x PCI-Bracket
• 1x M3x4mm screw
• 1x Washer
