Alphacool Core RX 9070 XT TUF + Prime with Backplate GPU Water Block, G1/4, Chrome Plated Copper, ARGB (14779)

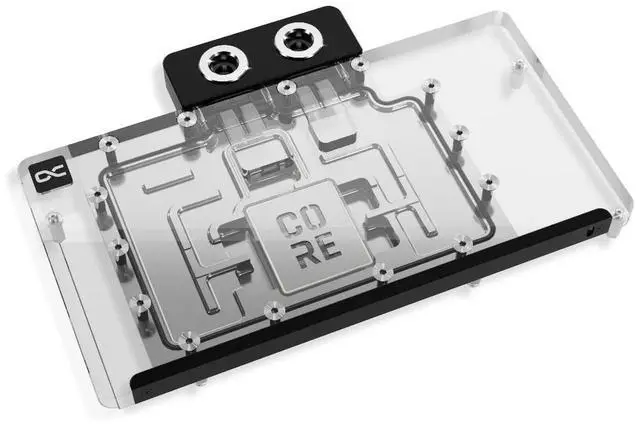

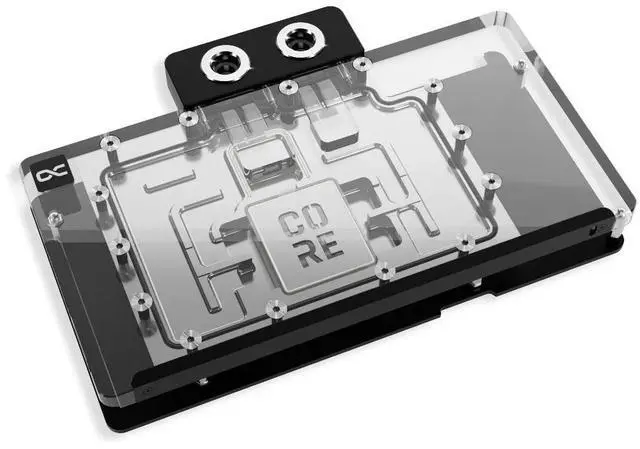

The Alphacool Core RX 9070 XT TUF + Prime with Backplate is a GPU water block for Asus TUF Gaming and Prime graphics cards with an AMD chip. It fits both as Radeon RX 9070 XT and as RX 9070, OC Edition 16GB. It cools the card with a chrome-plated copper block under an acrylic top, and the aluminum backplate is in the box.

Properties

• Fits: Asus TUF Gaming and Prime Radeon RX 9070 XT and RX 9070, OC Edition 16GB
• Cold plate: Chrome-plated copper
• Top: Acrylic, transparent
• Ports: 4 x G1/4
• Backplate: Aluminum, included
• Lighting: 10 digital aRGB LEDs, 5V

Compatibility

Alphacool lists these cards for this block:

• Asus Prime Radeon RX 9070 OC Edition 16GB GDDR6
• Asus TUF Gaming Radeon RX 9070 OC Edition 16GB GDDR6
• Asus Prime Radeon RX 9070 XT OC Edition 16GB GDDR6
• Asus TUF Gaming Radeon RX 9070 XT OC Edition 16GB GDDR6

The block was designed for one PCB layout, and card makers sometimes revise a board so that a cooler no longer fits later models. Before ordering, compare your card and its PCB number with the pictures in Alphacool's GPU configurator, or look it up in its Compatibility List for AMD cards.

Technical data cooler

• Dimensions total (L x W x H): 220.00 x 144.50 x 33.07 mm

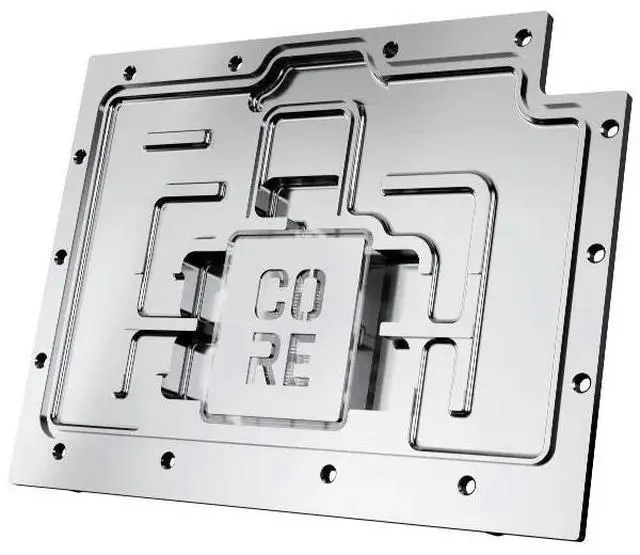

• Material cooler: chrome-plated copper
• Material cooler top: Acrylic
• Material terminal: Nylon
• Material Connection thread: Brass
• Max working temperature: 60 °C
• Pressure tested: 0.8 bar
• Threads: 4 x G1/4

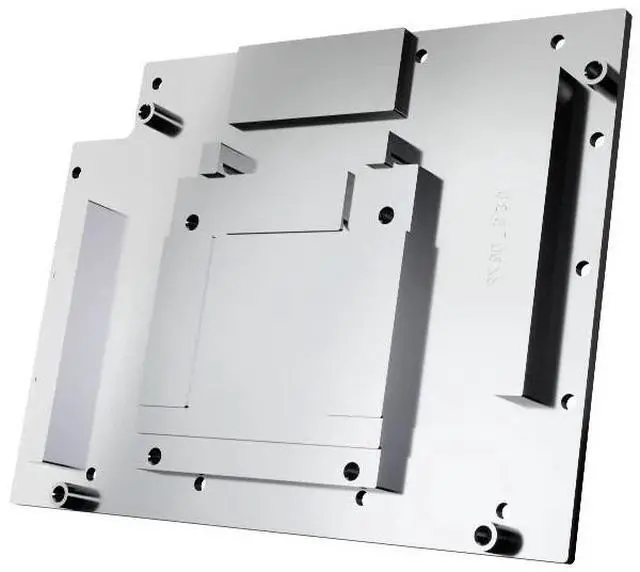

• Thickness cooler bottom: 3.25 mm
• Thickness cooling fins: 0.4 mm
• Distance cooling fins: 0.4 mm
• Illumination: digital aRGB LEDs
• Power connector digital aRGB LEDs: 3-Pin JST
• Power digital aRGB LEDs: 5V
• Number of digital aRGB LEDs: 10
• Color: transparent

Technical data backplate

• Dimensions (L x W x H): 220.00 x 116.00 x 6.00 mm
• Thickness backplate without spacers: 3 mm
• Material: Aluminum

Notes

• Alphacool asks that the block be used only with clear transparent water cooling fluids. It warns that the particles and additives in Pastel liquids can clog and permanently damage a radiator, a pump, coolers and hoses, and that this can void the manufacturer's warranty.
• Remove the original cooler on an antistatic mat and clean the card of thermal paste and pad residues before fitting the block.
• The card's original IO shield stays screwed to the PCB when the block goes on, and the manual has it secured with the original screws.
• The manual gives the hardness of the thermal pads as Shore-00 35.

In the box

• 1x Core RX 9070 XT TUF + Prime cooler
• 1x Backplate
• 3x 40x15x1mm Pad
• 1x 68x8x1mm Pad
• 2x 8x8x1mm Pad
• 1x 66x8x1mm Pad
• 3x 40x8x3mm Pad
• 1x 45x45x3mm Pad
• 1x 68x8x3mm Pad
• 1x Thermal Grease
• 1x Putty tool
• 1x ARGB Adapter
• 1x Plug tool
• 1x Screwdriver
• 2x G1/4 Plug
• 11x M2x10mm screws
• 1x M3x4mm screw
• 1x Washer
• 1x Nut
