Alphacool Eisblock Aurora Arc B580 Steel Legend + Challenger with Backplate GPU Water Block, G1/4, Chrome Plated Copper (10274)

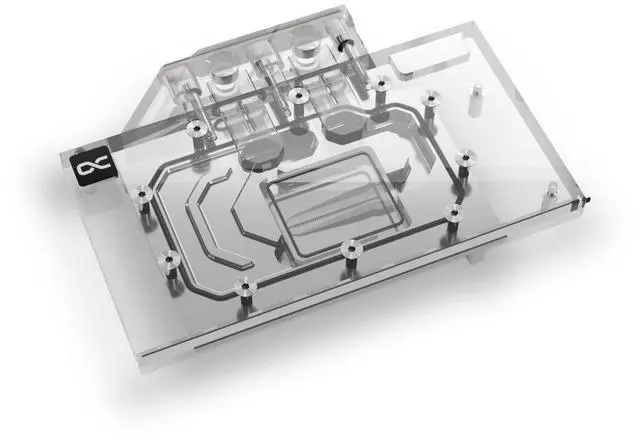

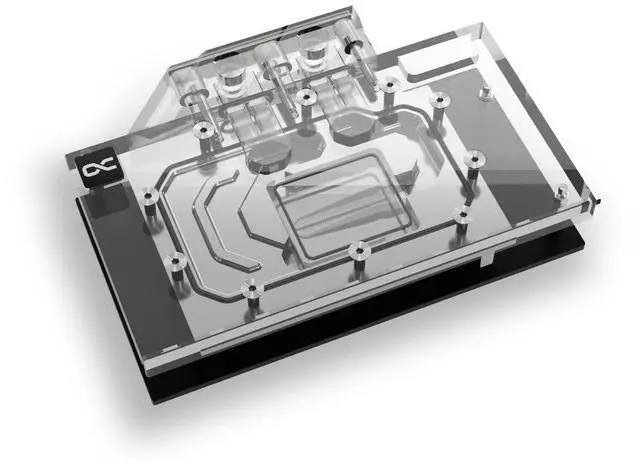

The Alphacool Eisblock Aurora Arc B580 Steel Legend + Challenger with Backplate is a GPU water block for the ASRock Intel Arc B580 Steel Legend 12GB OC and Challenger 12GB OC graphics cards. It cools the card with a chrome-plated copper block under an acrylic top, and the black aluminum backplate is in the box.

Properties

• Fits: ASRock Intel Arc B580 Steel Legend 12GB OC and Challenger 12GB OC
• Cold plate: Chrome-plated copper
• Top: Acrylic
• Ports: 2 x G1/4
• Backplate: Aluminum, black, included

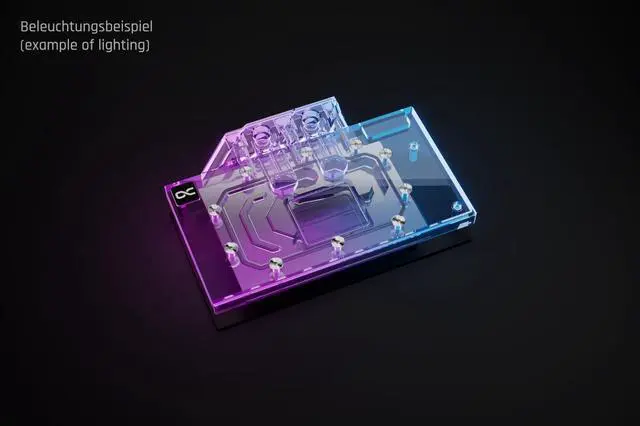

• Lighting: 10 digital RGB LEDs, 5V

Compatibility

Alphacool lists these cards for this block:

• ASRock Intel Arc B580 Challenger 12GB OC
• ASRock Intel Arc B580 Steel Legend 12GB OC

The block was designed for one PCB layout, and card makers sometimes revise a board so that a cooler no longer fits later models. Before ordering, compare your card and its PCB number with the pictures in Alphacool's GPU Configurator.

Technical highlights

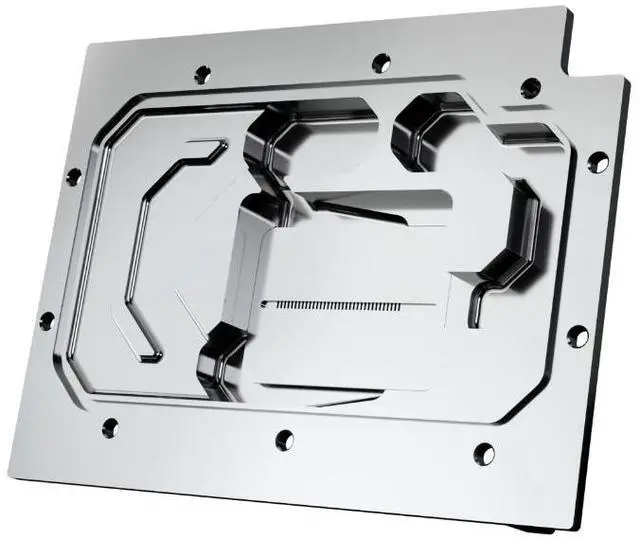

Alphacool says the block balances aesthetics and performance, and that it is precisely matched to the PCB layout of these two cards. The fin structure is based on the proven cooling technology of previous Eisblock coolers and has been specifically adapted to the requirements of the Arc B580 GPU. The fins are 0.4 mm thick. With that thickness and a fin spacing of 0.4 mm, Alphacool says the structure combines excellent water flow with high cooling performance. The jet plate features an inlay that distributes the water pressure better across the fins and optimizes heat absorption. An adjusted water inlet gives the water a better inflow angle.

Technical data cooler

• Dimensions (L x W x H): 170.00 x 117.60 x 35.15 mm
• Material cooler: Chrome-plated copper
• Material cooler top: Acrylic
• Maximum working temperature: 60 °C
• Pressure tested: 0.8 bar
• Threads: 2 x G1/4
• Thickness cooling fins: 0.4 mm
• Illumination: Digital RGB LEDs
• Number of digital aRGB LEDs: 10
• Power connector Digital RGB LEDs: 3-Pin JST
• Power Digital RGB LEDs: 5V

Technical data backplate

• Dimensions (L x W x H): 126 x 260 x 5 mm
• Material: Aluminum
• Color: Black

Notes

• Please note: Alphacool asks you to use the block only in conjunction with clear transparent water cooling fluids. It warns that the particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
• Remove the original cooler on an antistatic mat and clean the card of thermal paste and pad residues before you place the pads and fit the block.

In the box

• 1x Eisblock Aurora Arc B580 Steel Legend Cooler
• 1x Backplate
• 1x 25x15x1mm thermal pad
• 1x 51x15x1mm thermal pad
• 1x 15x8x1mm thermal pad
• 3x 8x8x1mm thermal pad
• 1x 65x8x1mm thermal pad
• 1x 40x15x3mm thermal pad
• 1x 25x15x3mm pad
• 1x 51x15x3mm pad
• 1x 15x15x3mm pad
• 1x 65x8x3mm pad
• 7x M2x11 screws
• 2x Screw plugs
• 1x Plug tool
• 1x Thermal grease
• 1x RGB adaptor
• 1x Putty tool
