Alphacool ES Geforce RTX 5090 Gaming 1-Slot Design (10292)

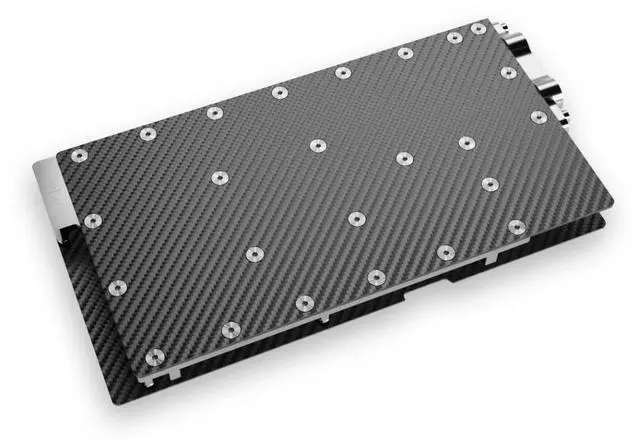

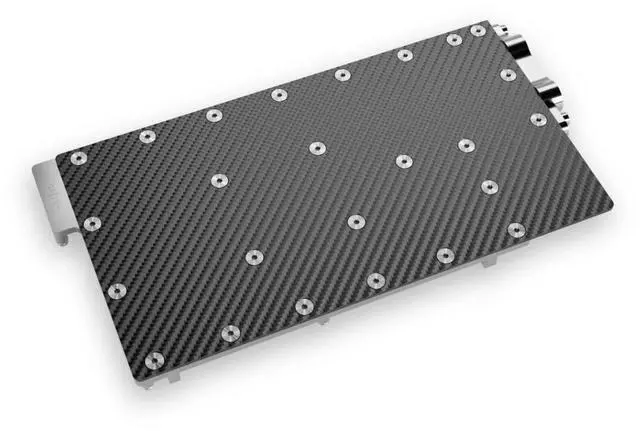

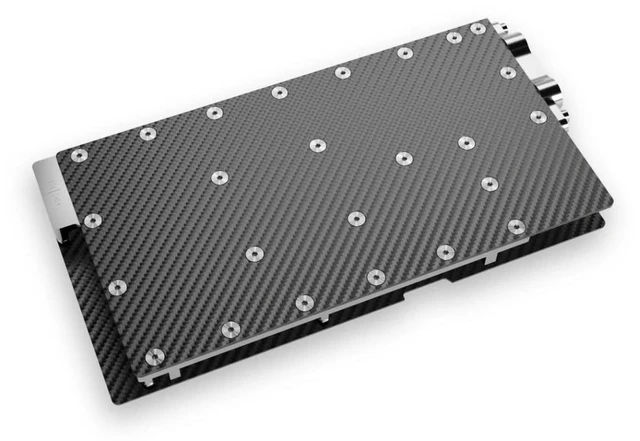

By using a thin and extremely stable carbon plate, this cooler could be designed as a 1-slot cooler without compromising on the copper block. Combined with the brass connectors located at the rear, multiple coolers can be easily stacked on top of each other or side by side in the server case. This sophisticated design saves space, simplifies tubing, and enables seamless integration into the water circuit.

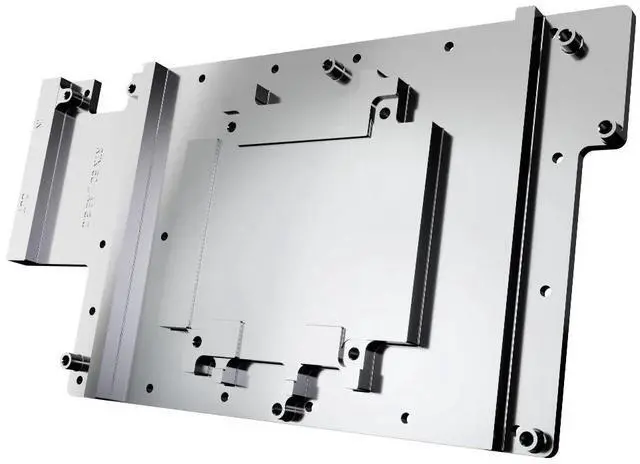

High-quality copper is used for all water-carrying parts, offering almost twice the thermal conductivity of aluminum. Furthermore, the copper is chrome-plated instead of nickel-plated, providing additional protection for the cooler. The chrome plating is more resistant to acids, scratches, and other damage, effectively preventing coating chipping.

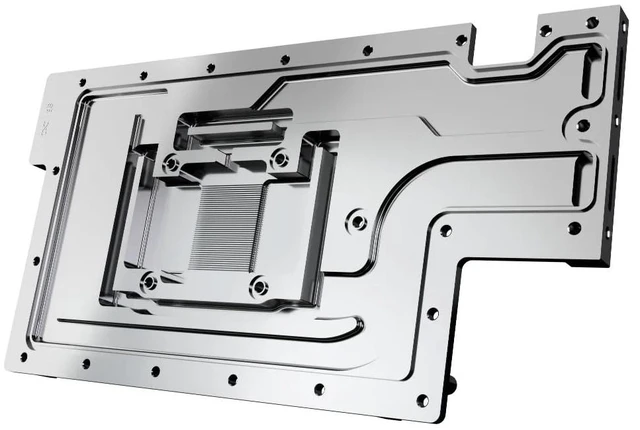

Technically, the GPU water cooler has been completely redesigned. To optimize cooling performance, the gaps between the cooler and the PCB components were redefined and tested. The water flow was simulated using state-of-the-art software and verified in practical tests. These extensive tests enabled improvements to the cooler base and nozzle to ensure the best possible cooling performance for the new Nvidia GeForce RTX generation.

Compatibility:
- Gigabyte AORUS GeForce RTX 5090 MASTER 32G (GV-N5090AORUS M-32GD)
- Gigabyte AORUS GeForce RTX 5090 MASTER ICE 32G (GV-N5090AORUSM ICE-32GD)
- Gigabyte GeForce RTX 5090 GAMING OC 32G (GV-N5090GAMING OC-32GD)
- Gigabyte GeForce RTX 5090 WINDFORCE OC 32G (GV-N5090WF3OC-32GD)

Technical data cooler
Complete dimensions (L x W x H)
255.00 x 128.00 x 19.20mm
Radiator base material
chrome-plated copper
Material radiator top
Carbon
Material Terminal
Brass
Material connection thread
Brass
Maximum working temperature
60°C
Pressure tested
2.0 bar
Connections
2 x G1/4"
Thickness of radiator base
3.25mm
Thick cooling fins
0.4mm
Distance between cooling fins
0.4mm

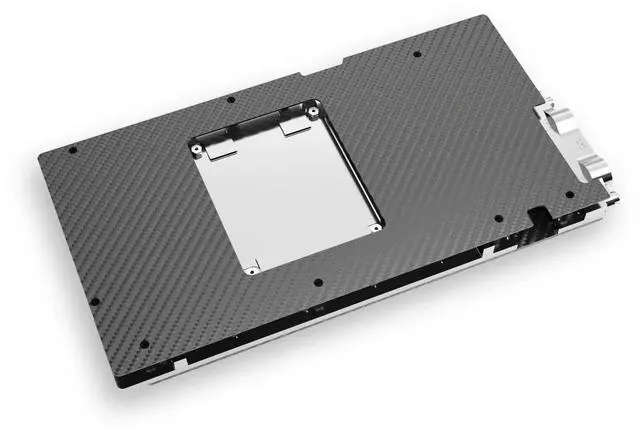

Technical data backplate
Dimensions (L x W x H)
244.50 x 128.00 x 3mm
Thick backplate without spacers
1mm
material
Carbon
