Alphacool MCX 5x divider

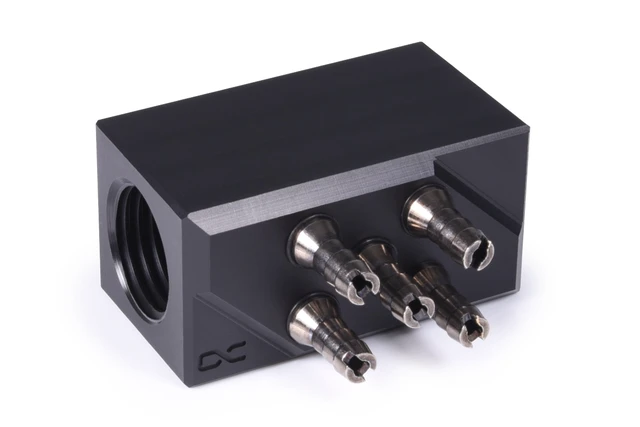

The Alphacool MCX 5-Way Divider is a divider piece for the MCX waterblock with 2 G1/4 threads, 2 M3 threads and 5 barbed fittings for 3 mm tube, one piece per pack. Alphacool lists it as the MCX 5x distributor G1/4, a distributor for its NexXxoS MCX One cooler.

Properties

• Thread: 2x Thread G1/4, 2x Thread M3
• Tube size: 5x Barbed fitting 3 mm, pressed in
• Dimensions: 28 x 20 x 18 mm
• Color: Black
• Pieces in the pack: 1

What the loop needs

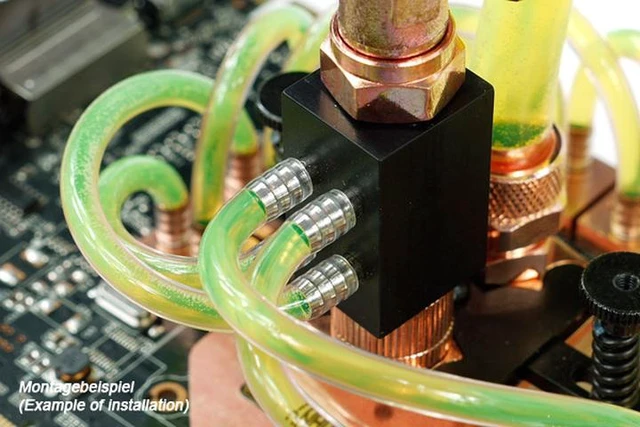

The two G1/4 threads take the fittings that tie the divider into the loop. The block it feeds is the MCX One.

Technical specifications

• Connections: 2x threaded hole G1/4
• Connections: 2x M3 holes
• Connections: 5x hose nozzles 3 mm pressed in
• Pressure tested (without clamps): 3 bar
• Pressure tested (with clamps): 6 bar
• Max working temperature: 60 °C
• Material: Acrylic
• Color: black

Notes

• Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.

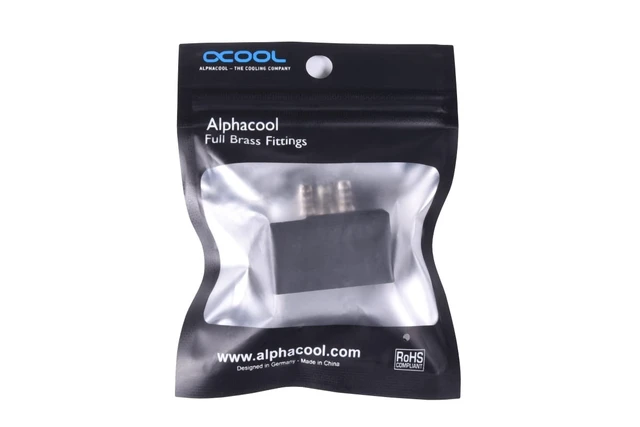

In the box

• 1x Divider piece
