Alphacool Core Distro Plate 360 Left D5/DDC V.2 with D5 Apex Pump (13875)

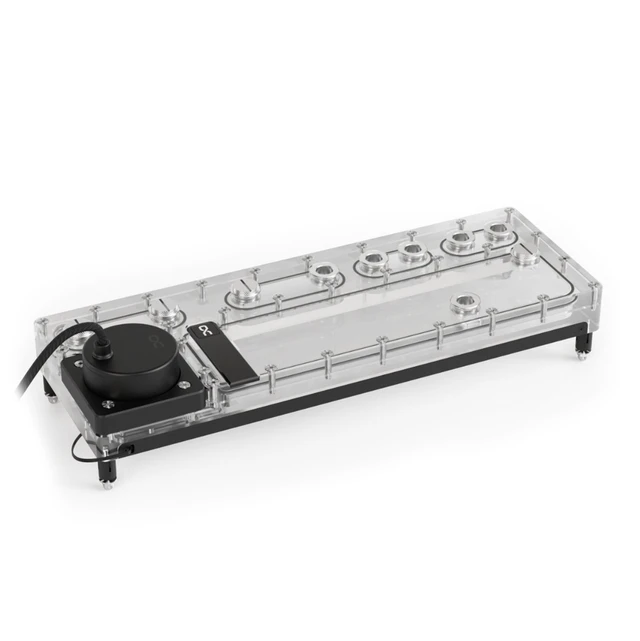

The Alphacool Core Distro Plate V.2 with VPP Apex pump is the ideal solution for custom water cooling systems. The redesigned platform offers significantly greater installation flexibility and simplifies the planning, assembly, and maintenance of even complex water loops.

The core element of the Core Design series is the chrome-plated G1/4" brass fittings. On the Core Distro Plate V.2, these are directly embedded in the acrylic, effectively eliminating the risk of leaks caused by cracking. The two-piece fittings, equipped with O-rings, interlock within the acrylic, ensuring maximum sealing and a clean, high-quality appearance.

Thanks to its reduced depth and optimized G1/4" fitting arrangement, the Distro Plate allows for particularly short and clean tubing runs. A side drain port also enables easy and controlled draining of the loop. This makes the Core Distro Plate V.2 ideal for custom water loops that simultaneously cool the CPU and one or more graphics cards.

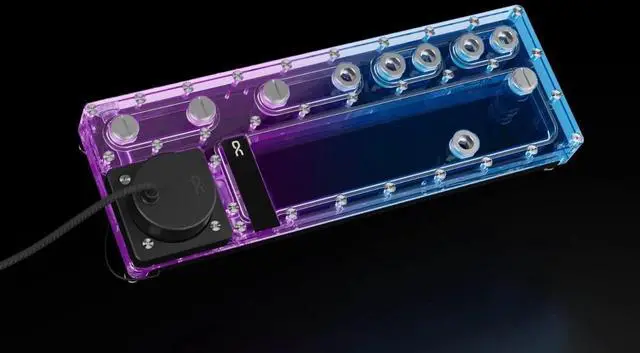

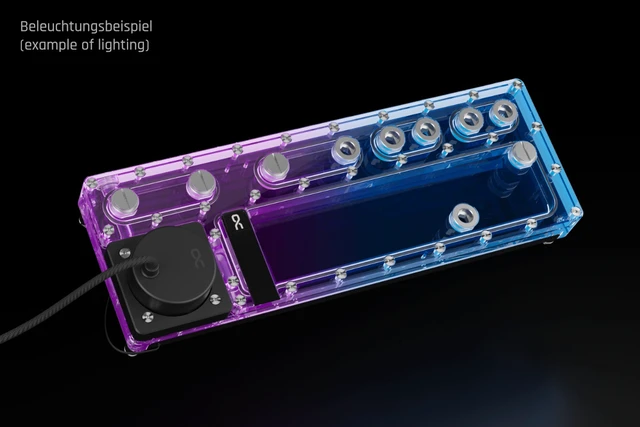

Made of high-quality acrylic glass, the Distro Plate offers a clear view of the coolant. The integrated digital aRGB lighting provides a brilliant display of colors and can be controlled via a digital aRGB header on the motherboard or optionally via the Alphacool Aurora Eiscontrol aRGB controller (part no. 15360).

Thanks to a redesigned pump bracket, either VPP/D5 or DDC pumps can be installed. The included Alphacool VPP Apex features a ceramic shaft and an optimized motor design, resulting in exceptionally quiet, low-vibration, and efficient operation. Speed control is achieved via a 4-pin PWM connector, which connects to the motherboard or an external controller. The pump is powered via a SATA connector on the power supply.

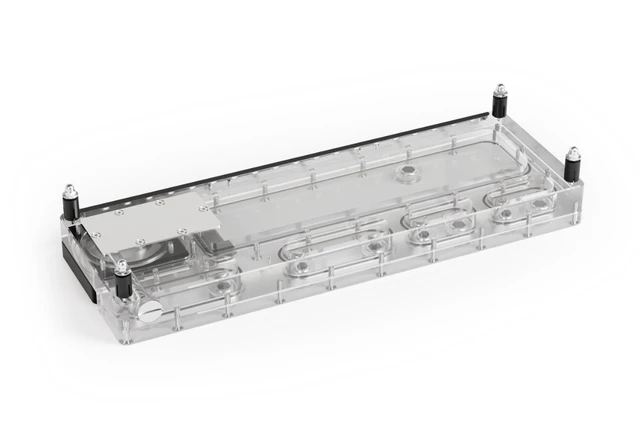

The Alphacool Core Push Mounting Kit is included. This significantly simplifies installation, ensures a secure fit of the distribution plate to the case panel or radiator, and allows for easy removal for maintenance or upgrades.

The Core Distro Plate V.2 is available in 240mm or 360mm versions, each with left or right positioning of the pump top.

Compatibility:
- Can be mounted on the radiator or the panel

Technical Details Distro Plate
Dimensions (L x W x H)
360.00 x 125.00 x 34.50 mm
Dimensions (L x W x H) with pump
360.00 x 125.00 x 62.20 mm
Dimensions (L x W x H) with push mounting
360.00 x 125.00 x 62.30 mm
Dimensions (L x W x H) with pump + push mounting
360.00 x 125.00 x 88.80 mm
Material
Acrylic
Volume
190ml
Pump compatibility
VPP/D5
Connections
10x G1/4" internal thread / 1x drain port
Maximum operating temperature
60 °C
Pressure tested
0.8 bar
Number of digital aRGB LEDs
19
Voltage digital aRGB LEDs
5V
Power connection digital aRGB LEDs
3-Pin JST + 3-Pin 5V
Weight
1840g
Weight with pump
2116g
Color
Transparent
Pump Technical Data
Dimensions (Distro Plate with Pump) (L x W x H)
360.00 x 125.00 x 62.20 mm
Pump material
Plastic
Pump cover material
Aluminum
Axle Material
Ceramic
Connections
4-Pin PWM | SATA
Control range
2500 - 4500 RPM
Cable lengths
4-pin PWM - 48cm | SATA - 48cm
Operating voltage
8-13V DC / 14W IP32
Starting voltage
12V DC
Maximum delivery head
4.25 m
Maximum flow rate
340 L/h
Maximum operating temperature
60°C
Weight
276g
Color
Black
