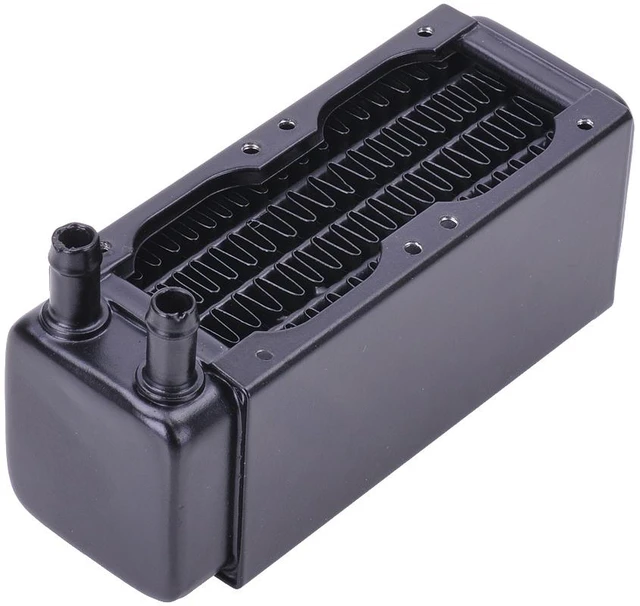

Alphacool NexXxos XT45 Full Copper Radiator 80, 40mm x 2, Dual Fan, Black, 45mm, 80mm (35488)

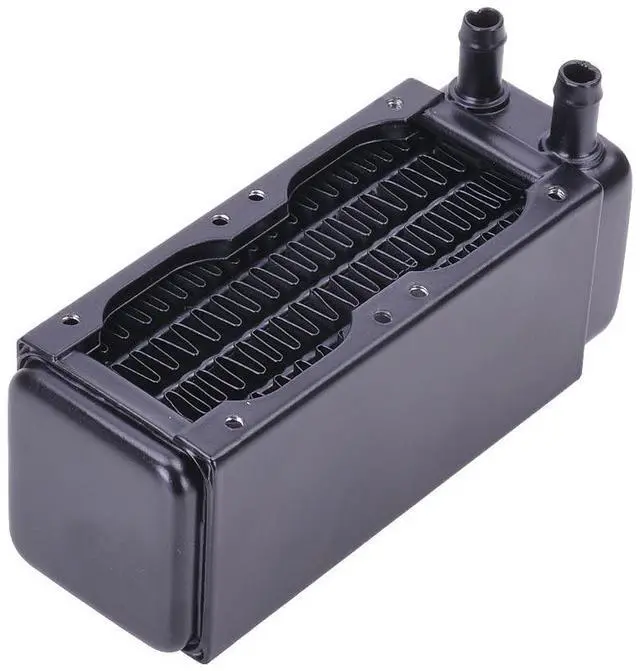

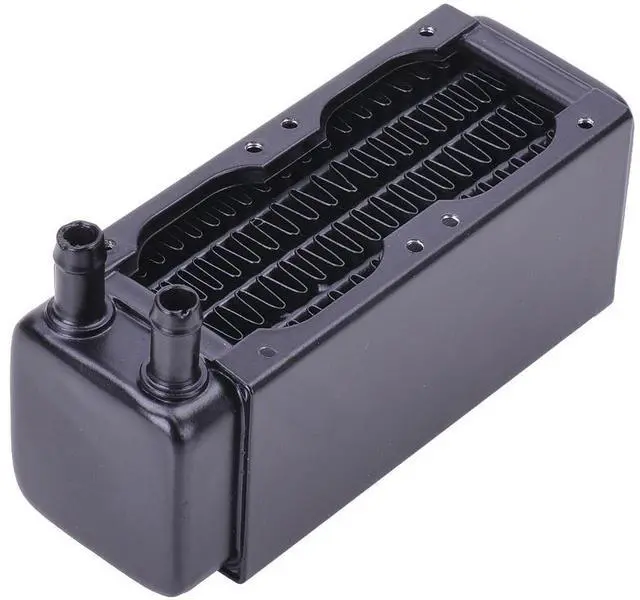

The Alphacool NexXxoS XT45 Full Copper Dual 40mm Radiator is a radiator for two 40 mm fans in the XT45 thickness, 105 x 40 x 41 mm overall, with two 6 mm connections. Alphacool's technical data gives the thickness as 39 - 49 mm.

Properties

• Fans: 2x 40 mm
• Size (L x W x H): 105 x 40 x 41 mm
• Thickness: 39 - 49 mm
• Ports: 2x 6 mm
• Material: copper cooling channels and slats, steel housing
• Fins per inch: 12

What the loop needs

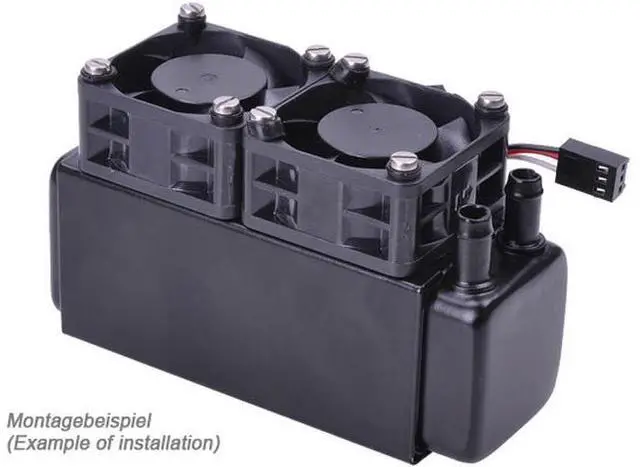

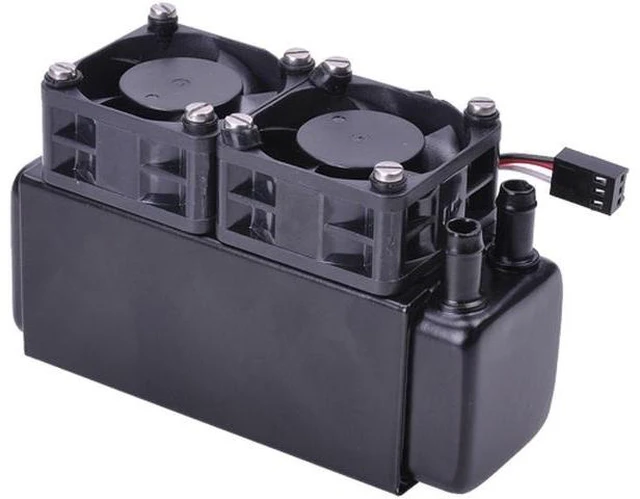

The radiator carries two 40 mm fans on M3 fan threads. The box holds eight M3x30mm and eight M3x35mm hexagon socket screws.

Alphacool calls versatility the essence of the new NexXxos series. The radiators are available in different versions to be used with 120mm, 140mm or 180mm fans and in different thicknesses. Alphacool says the choice of 30mm, 45mm and 60mm offers "the perfect radiator for every purpose". Even mounting and installation of fans and radiator grills is described as easy and versatile with these radiators. The M3 threads are standard in the radiator sector, and Alphacool notes that M3 screws are available in all lengths at an affordable price. Even the dreaded insertion of a screw too far into the radiator does not result in expensive damage, Alphacool says. Unlike other radiators, the NexXxos series is equipped with an internal protective ledge which stops the screw before it damages the fins.

Technical data

• Dimensions (L x W x H): 105 x 40 x 41 mm
• Quantity of cooling channels: 8
• Cooling channels: Copper
• Color: black
• Fan thread: M3
• Slats: Copper
• Number of fans: 2
• Thickness: 39 - 49 mm
• Housing: Steel
• Pressure tested: 0.8 bar
• Manufacturer: Alphacool
• Fins per inch: 12
• Fan size: 40 mm
• Connection: 2x 6 mm

Notes

• Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.

In the box

• 1x Radiator
• 8x M3x30mm Hexagon Socket Screw
• 8x M3x35mm Hexagon Socket Screw
