Alphacool NexXxos XT45 Full Copper Radiator 60, 60mm x 1, Single Fan, Black, G1/4, 45mm (14222)

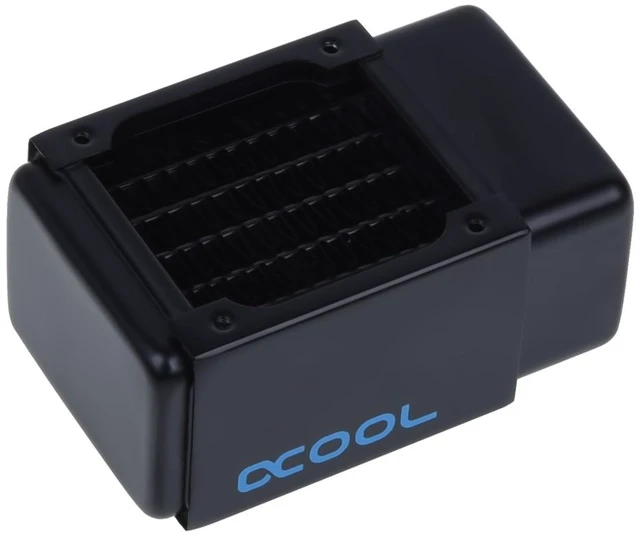

The Alphacool NexXxoS XT45 Full Copper 60mm Single Radiator is a 60 mm radiator for one 60 mm fan, 45 mm thick. It measures 92 x 61.5 x 45 mm and has two G1/4 threads, one IN and one OUT, and M3 fan threads.

Properties

• Fans: 1 x 60 mm on one side, 2 with both sides fitted, M3 thread
• Size (L x W x H): 92 x 61.5 x 45 mm
• Thickness: 45 mm

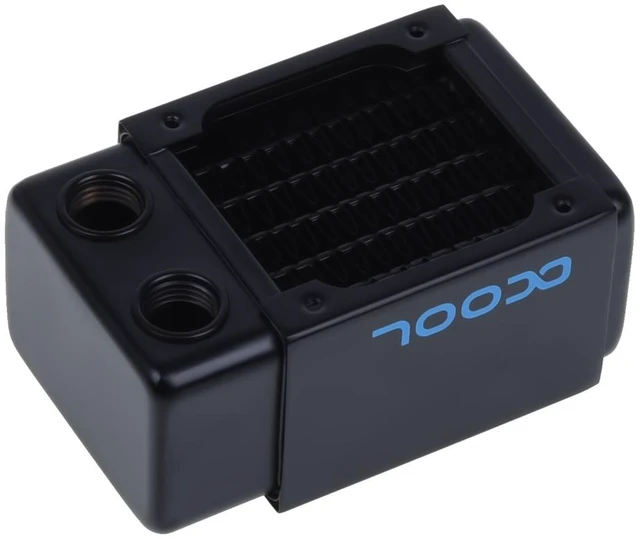

• Ports: 2x G1/4 IN/OUT
• Material: Copper fins, pre-chambers and channels, brass threads, stainless steel housing
• Fin density: 12 FPI

Full copper

Alphacool says the new NexXxoS radiators are the first to truly deserve the "Full copper" attribute. All main parts are made from copper, not only the fins and channels but the chambers also. Alphacool claims this brings an improvement in performance where other radiators are left without a chance. It also says the material already gives an advantage over the competition, and that the inner structure is up to par with the competition. Its data sheet sums the radiator up in three points: high water flow rate and efficient heat transfer, optimal fin structure, and 100% of the internal structure made of copper.

Chambers and flow

Separated chambers give the coolant a clear direction, allowing high flow rates, which Alphacool says improve the performance of the whole cooling loop. The chambers on the heat exchanger are flat, and the reduced overall length that results is there to increase mounting flexibility.

What the loop needs

Both G1/4 threads are used, one as inlet and one as outlet, so the radiator takes two fittings. Alphacool allows a thread length of 5 mm at most on them. The 60 mm fans go on M3 threads, and the fan screws are in the box.

Technical data radiator

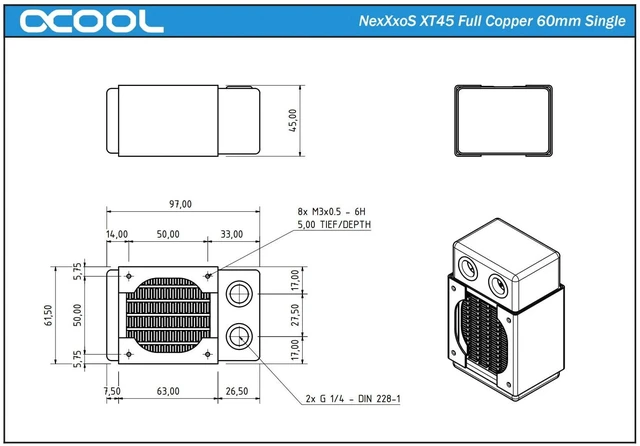

• L x W x H: 92 x 61.5 x 45 mm (+/- 3%)
• Quantity of cooling channels: 12
• Material cooling fins, pre-chambers & channels: copper
• Material threads: brass
• Material outer housing: stainless steel
• Threads: 2x G1/4 IN/OUT (max. 5 mm thread length)
• Possible fan size: 60mm
• Possible fan assembly: 1x one-sided / 2x both-sided
• Thread size fan mounting: M3
• Pressure tested: 0.8 Bar
• Maximum working temperature: 60 °C
• Fin density: 12 FPI
• Weight: 295 g
• Color: black

Notes

• Alphacool asks that the radiator be used only in conjunction with clear, transparent water cooling fluids. It warns that the particles and additives in pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. That can also result in voiding the manufacturer's warranty.

In the box

• 1x Radiator
• 4x M3x30mm hexagon socket screw
• 4x M3x6mm hexagon socket screw
• 4x washer
• Allen key
