Alphacool Apex Grip 27mm 360° G1/4 Male to Female Rotary Offset Fitting - Black, Brass (14814)

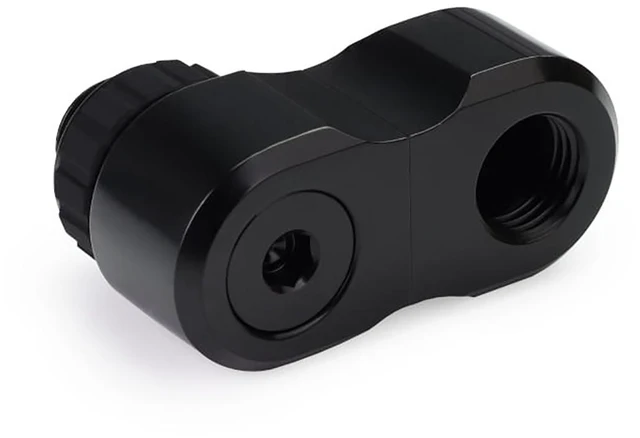

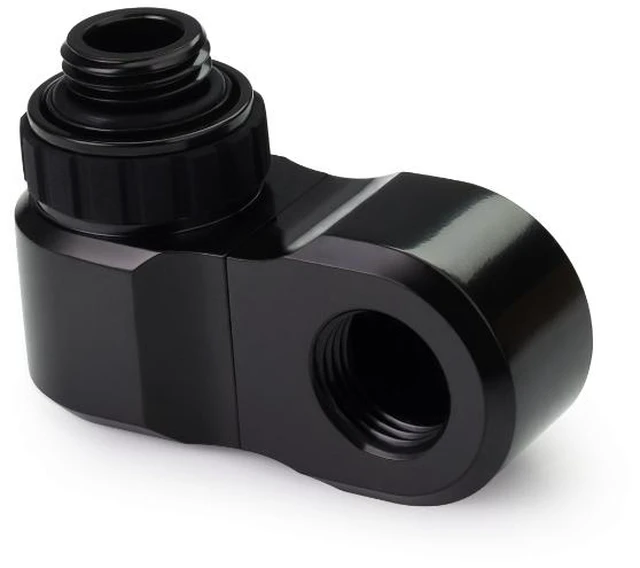

The Alphacool Apex Grip 27mm 360° G1/4 Male to Female Rotary Offset Fitting - Black is an offset fitting with G1/4 male and female threads, one fitting per pack. The offset is 27 mm, and both the offset section and the threaded head can be rotated through 360°.

Properties

• Thread: G1/4 male to female, 5 mm thread length
• Offset: 27 mm
• Rotation: 360° at the offset section and at the threaded head
• Material: Brass, silicone grip surface
• Color: Black
• Pieces in the pack: 1

The offset

With offset fittings, the connection point can be set where the run calls for it, and they allow for precise alignment. Because the two rotary joints turn on their own, it is possible to position the connection exactly where needed for clean and efficient tubing or hard tube routing.

The grip

Alphacool names the integrated silicone surface on the outer grip area of each fitting as a defining feature of the Apex Grip series. The silicone provides an enhanced hold when tightening by hand, which makes installation noticeably easier, especially in confined spaces with limited access. Alphacool says this not only improves installation comfort but also gives the user greater control during assembly.

Brass and coating

The fittings are made from brass, which Alphacool calls high-quality and says will offer excellent stability and long-term durability. What it calls a premium coating further enhances the series by helping to prevent paint chipping, while emphasizing its elegant overall appearance. According to Alphacool, precision manufacturing ensures a reliable seal within the cooling loop while supporting high-flow performance throughout the system.

The modular system

Apex Grip fittings are built around a modular system that allows for flexible and customized connection solutions in modern custom water-cooling setups. At the same time, Alphacool says, the modular design offers a high degree of versatility, making the parts easy to adapt to a wide range of configurations. Combined with the refined and distinctive Apex design, the workmanship and the user-friendly handling, Alphacool calls the series an ideal choice for demanding systems. It also calls these fittings the perfect choice for anyone who values comfortable handling and a refined appearance in their custom loop.

What the loop needs

The male G1/4 thread screws into any G1/4 port, and the female G1/4 thread takes one fitting. Straight parts with the same pair of threads are with the male to female extension fittings.

Technical Data

• Dimensions (LxWxH): 50.50 x 23.50 x 32.25 mm
• Diameter: 19.40 mm
• Material: Brass
• Material Grip Surface: Silicone
• Threads: 2x G1/4
• Thread Length: 5 mm
• Color: Black

In the box

• 1x Apex Grip 27mm 360° G1/4 male to female rotary offset fitting, black
