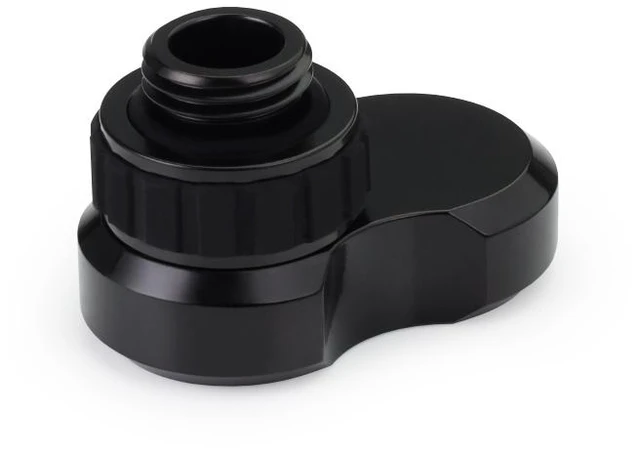

Alphacool Apex Grip 16mm 360° G1/4 Male to Female Rotary Offset Fitting - Black, Brass (14813)

The Alphacool Apex Grip 16mm 360° G1/4 Male to Female Rotary Offset Fitting - Black is an offset adapter fitting with two G1/4 threads, one male and one female. The offset is 16 mm, and there is one fitting per pack. The offset section and the threaded head can both be rotated through 360°.

Properties

• Thread: 2x G1/4, male to female
• Offset: 16 mm
• Rotation: 360° at the offset section and at the threaded head
• Material: Brass with a silicone grip surface
• Color: Black
• Pieces in the pack: 1

What the offset does

Offset fittings allow precise alignment of the connection point. Because both parts rotate, it is possible to position the connection exactly where it is needed, for clean and efficient tubing or hard tube routing.

Grip and build

Apex Grip fittings are built around a modular system, which allows for flexible and customized connection solutions in modern custom water-cooling setups. The defining feature of the series is the silicone surface integrated on the outer grip area of each fitting. It provides enhanced grip when tightening by hand, which makes installation noticeably easier, especially in confined spaces with limited access. Alphacool says this not only improves installation comfort but also gives the user greater control during assembly.

The fittings are made from brass, which Alphacool calls high-quality, and it says they offer excellent stability and long-term durability. A coating that Alphacool calls premium further enhances the series by helping to prevent paint chipping while emphasizing its elegant overall appearance. According to Alphacool, precision manufacturing ensures a reliable seal within the cooling loop while supporting high-flow performance throughout the system. At the same time, it says, the modular design offers a high degree of versatility, making the fittings easy to adapt to a wide range of configurations.

Alphacool names the series an ideal choice for demanding systems, combined with what it calls the refined and distinctive Apex design, high-quality workmanship and user-friendly handling. It also calls the fittings the perfect choice for anyone who values comfortable handling and a refined appearance in their system.

What the loop needs

The fitting carries no tube itself: one G1/4 thread screws into a G1/4 port and the other takes the next fitting.

Technical Data

• Dimensions (LxWxH): 39.50 x 23.50 x 24.10 mm
• Diameter: 19.40 mm
• Material: Brass
• Material Grip Surface: Silicone
• Threads: 2x G1/4
• Thread Length: 5 mm
• Color: black
