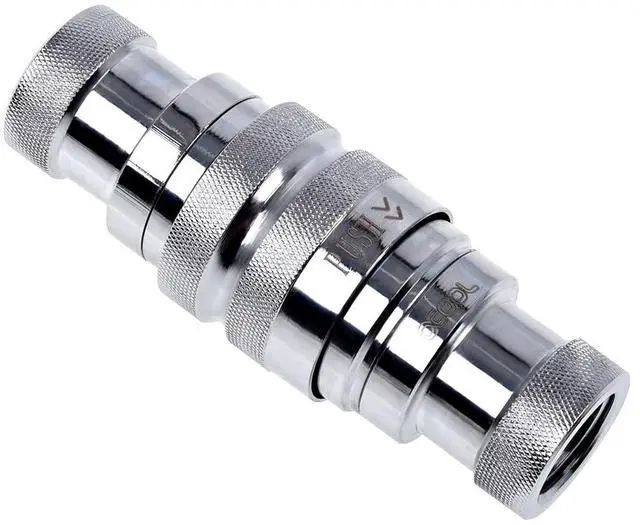

Alphacool G1/4" Eiszapfen HF Quick Release Connector Kit, Chrome

A quick coupling is used everywhere where expandability, flexibility and cleanness play an important role. These compact couplings have a 1/4 "thread on both sides with which they are compatible with all standard connections.

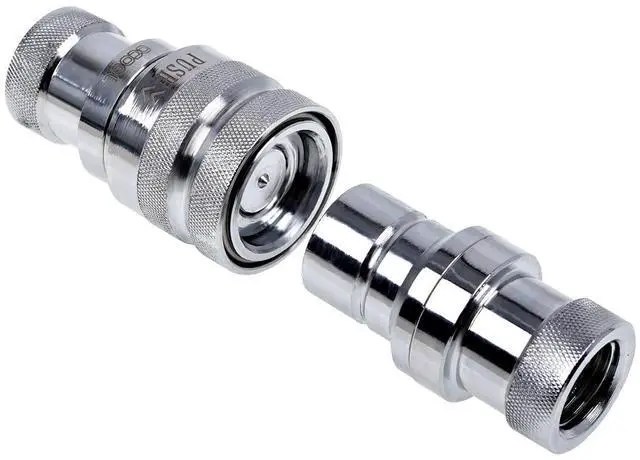

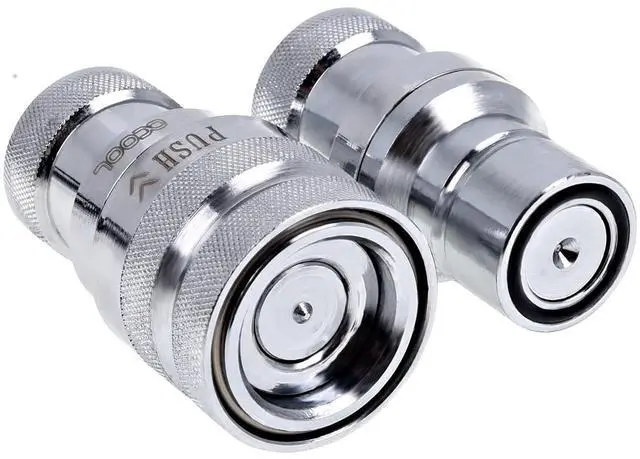

By pulling down the outer ring these couplings can be disconnected. Both sides close immediately completely tight so that no water can escape. Thanks to the special N.D.S.L. Technology (no drip, no splash, no leak) a leak, drip or splash out of the water on opening the lock is excluded. By assembling again, both sides must click into each other audibly and shut themselves tightly by a double O-ring, which is simply compressed when plugged together.
Likewise, the mechanism was designed for durability to ensure a secure connection even years.

Many quick couplings usually also affect the flow rate. But Alphacool has found a way to resolve this issue. A high flow rate is maintained at these quick couplings!

Alphacools quick couplers are available in two finishes. In deep black and fully chromed these add seamlessly on every system.

Technical Details:

• Dimensions (L x D): 64,6 x 23,9mm


• Material: Brass


• Colour: Chrome


• Thread: 2x 1/4" internal thread

Scope of Delivery:

• 1x Alphacool Eiszapfen quick release connector kit G1/4 inner thread - Chrome

The quick couplings should not be used permanently in dry condition, since the O-rings may be too much strain and tightness is no longer guaranteed.
