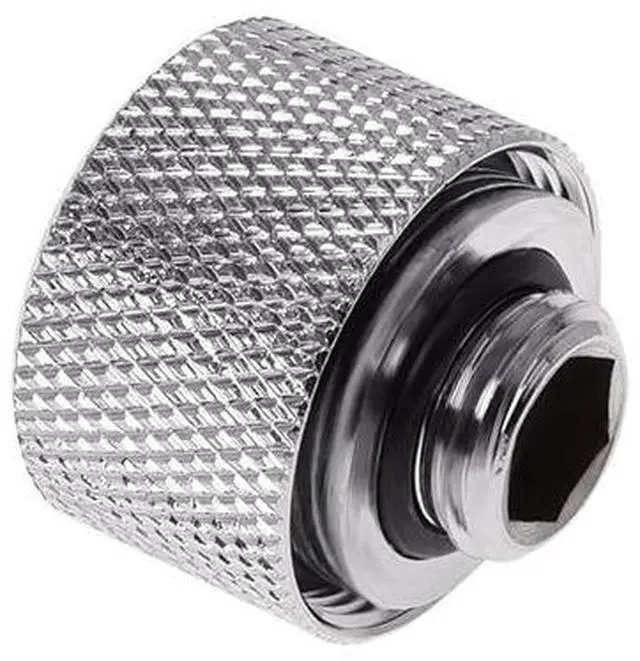

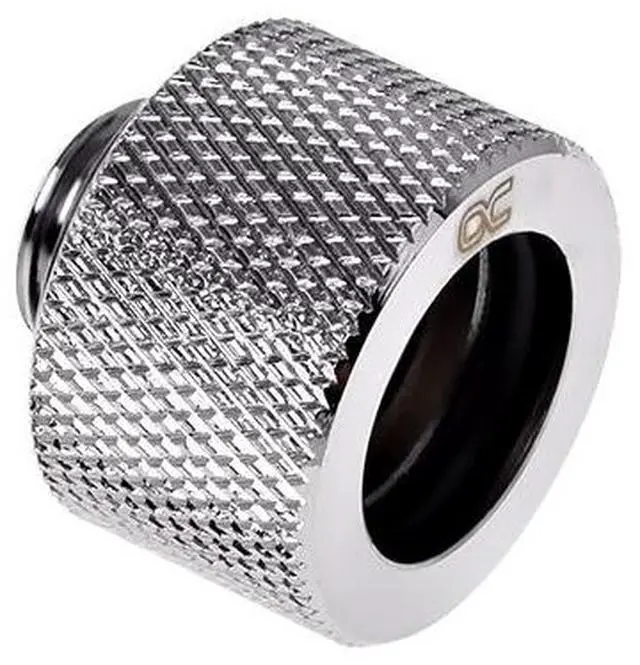

Alphacool HT G1/4" Compression Fitting for Plexi (Acrylic) / Brass Hard Tubes, 16mm OD, Chrome, 6-pack (17384)

This is a six-pack of knurled Chrome HT compression fittings (17384), each with a G1/4 thread for a hard tube with an outer diameter of 16 mm. Alphacool names acrylic, brass and carbon tubes.

Properties

• Thread: G1/4
• Tube size: 16 mm outer diameter hard tube
• Material: Brass, chromated
• Color: Chrome, knurled
• Pieces in the pack: Six

The HT compression fitting

Alphacool calls the HT Compression fitting a true masterpiece and says these connectors promise absolute tightness and high quality. The fitting is suitable for all hard metal tubes with an outer diameter of 16 mm. On the other side of the connector it is, as usual, the G1/4 thread. It is available in Deep Black and Chrome.

How it seals

First, we put the union nut onto the tube. This is followed by a plastic disc which protects the O-ring, and then by the thick O-ring itself. Now the tube is easily inserted into the connector, in which the second O-ring is already seated and rests very close to the tube. As a final step, the union nut is pushed onto the connection and screwed on. The bottom of the compression fitting can be easily tightened by using an 8 mm Allen key.

Finish and range

Alphacool says these fittings take another step towards quality. Chrome and Deep Black are the first two colors, and Alphacool says its coordinated product series lets each system shine in its own way, with no limits to individuality alongside its acrylic brass tubes.

A new chromating process bonds the coloring firmly to the brass base. Alphacool says this ensures the longevity of the intense color and prevents the chrome layer from chipping. Alphacool lettering on the connections highlights these items.

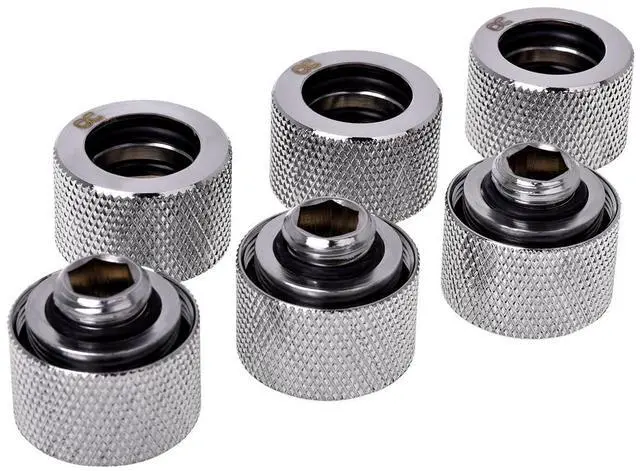

Six pack

Since six connections of one type are often required, Alphacool offers this six-pack.

What a run needs

A tube run takes two fittings, one at each end, and each screws into a G1/4 port.

Notes

• Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.

In the box

• 1x Alphacool HT 16mm HardTube Compression Fitting G1/4 for Plexi or Brass Tubes - Knurled - Chrome - Six Pack
