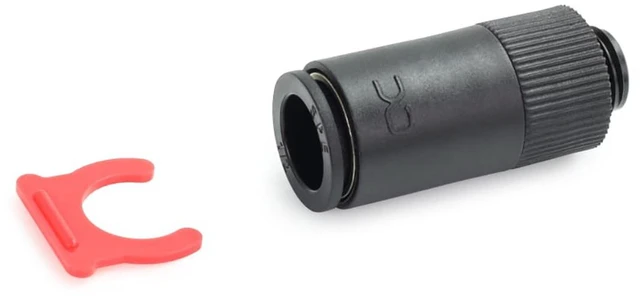

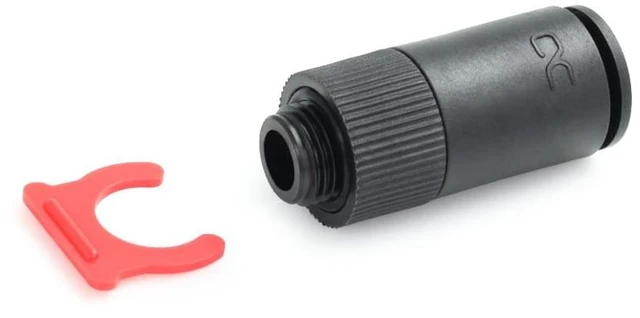

Alphacool ES Quick Release Coupling G1/4 AG Female - PushIn Industry Version Fitting, Nylon, Black (17654)

The Alphacool ES Quick Release Coupling G1/4 AG Female - PushIn Industry Version is a nylon quick disconnect half that features a G1/4 male thread combined with a female push-in connection, one coupling per pack. A male and female coupling are required for a complete connection, so this one needs the matching male counterpart, such as the G1/4 AG Male coupling.

Properties

• Thread: G1/4 male (external thread)
• Quick release side: Female, Push In
• Size (L x D): 47 x 20 mm
• Material: Nylon
• Color: Black
• Pieces in the pack: 1

Push-in system

The thread allows the coupling to be screwed directly into components, and the push-in side allows for a quick connection. Thanks to their robust construction and push-in system, Alphacool says, installations can be easily expanded or maintained. The couplings in this series are all compatible with each other, and they also fit into the existing sets.

Nylon

Alphacool names low weight as a key advantage of the Industry version. The couplings are made from what it calls high-quality nylon, so they are non-conductive and prevent short circuits. Alphacool calls that a particularly important factor in modern server environments with high packing density. Being ultra-lightweight, the material also facilitates handling and installation.

Flow and sealing

Conventional quick-release couplings often create high flow resistance due to narrow water lines. Unlike those, this series was developed for optimized flow, which according to Alphacool keeps resistance to a minimum while maximizing cooling performance. As always with Alphacool, a double seal is there, and the maker says it ensures absolute tightness for maximum safety. Additionally, a locking clip ensures that it cannot be opened accidentally.

Technical data

• Dimensions (L x D): 47 x 20 mm
• Net weight: 13 g
• Pressure tested: 8 bar
• Maximum working temperature: 60 °C
• Flow opening: 6 mm
• Material: nylon
• Thread: external thread G1/4
• Type of quick release: Push In
• Color: black

Notes

• Note from Alphacool: drops may escape when disconnecting the coupling.
