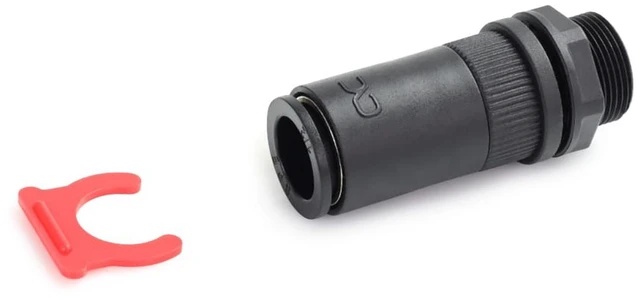

Alphacool ES Quick Release Coupling G1/4 IG Female - Bulkhead Fitting PushIn Industry (17658)

Thanks to their robust construction and push-in system, installations can be easily expanded or maintained. All couplings in this series are compatible with each other and also fit into the existing sets. A male and female coupling are required for a complete connection.

A key advantage of the Industry version is their low weight. Made from high-quality nylon, the couplings are non-conductive and prevent short circuits a particularly important factor in modern server environments with high packing density. The ultra-lightweight material also facilitates handling and installation.

Unlike conventional quick-release couplings, which often create high flow resistance due to narrow water lines, this series was developed for optimized flow. This keeps resistance to a minimum while maximizing cooling performance.

As always, a double seal ensures absolute tightness for maximum safety. Additionally, a locking clip ensures that the coupling cannot be opened accidentally.

The bulkhead fitting with a G1/4 internal thread and female push-in connection is designed for installation through housing or panel walls. This allows for clean and stable hose routing.

Note:
Drops may escape when disconnecting the coupling.

Technical data
Dimensions (L x D)
55 x 20 mm
Net weight
16 g
Pressure tested
8 bar
Maximum working temperature
60°C
Flow opening
6 mm
material
nylon
thread
internal thread G1/4"
Housing feedthrough
Bulkhead fitting
Type of quick release
Push In
Color
black
