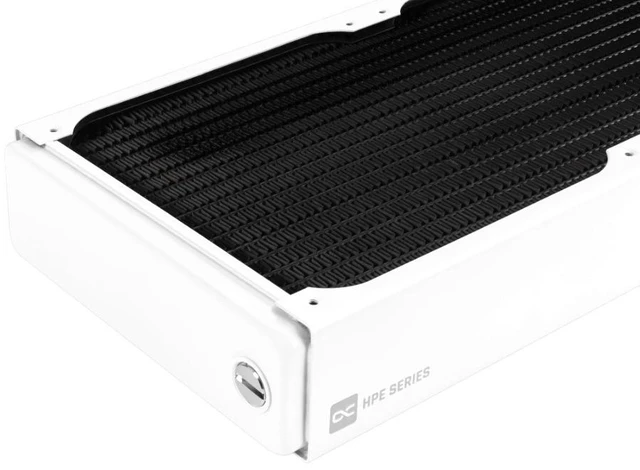

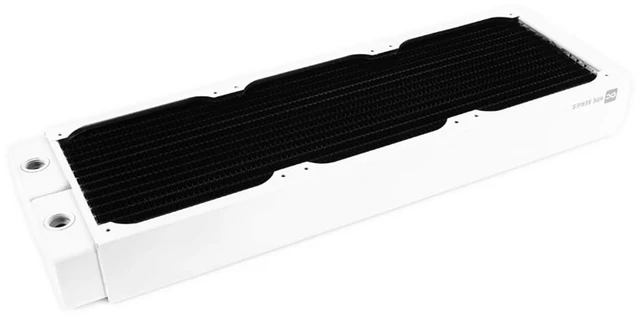

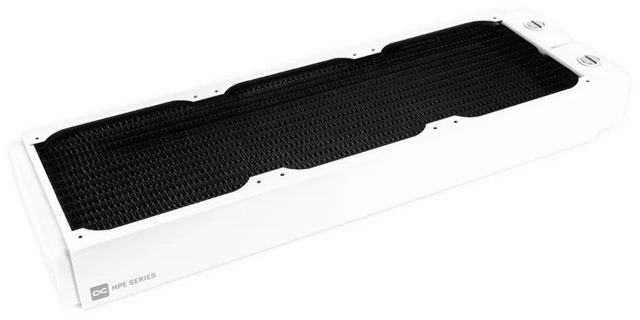

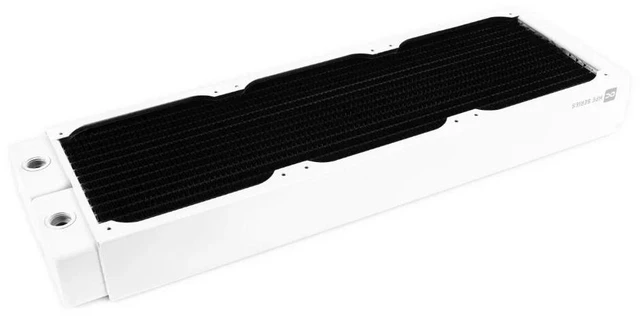

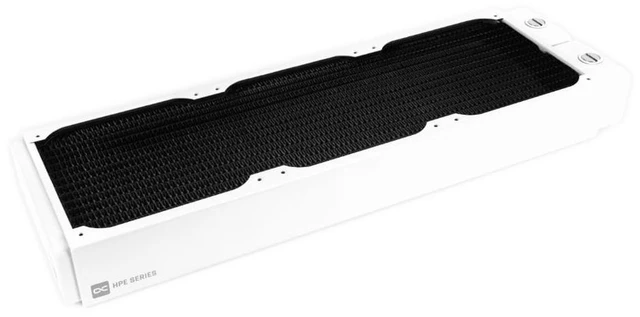

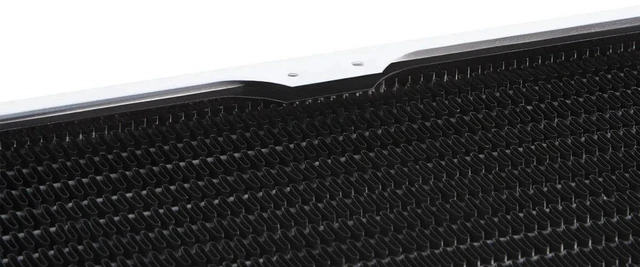

Alphacool HPE-45 Full Copper 360mm Radiator - White (10227)

The Alphacool HPE-45 Full Copper 360mm Radiator - White is a 360 mm radiator for three 120 mm fans, 45 mm thick, with a white housing. All water-bearing parts and the cooling fins are copper, and the ports are G1/4.

Properties

• Fans: 3x 120 mm one-sided / 6x both-sided
• Size (L x W x H): 391.5 x 124 x 45 mm (+/- 3%)
• Thickness: 45 mm

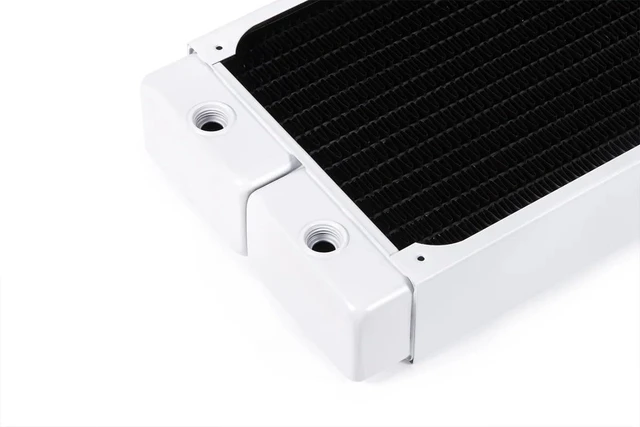

• Ports: 4x G1/4 IN/OUT, 1x G1/4 fill/drain port
• Material: Copper fins, pre-chambers and channels, brass threads, stainless steel housing
• Color: White

Full Copper

Alphacool says it has dominated the market with its Full Copper radiator series for more than a decade. It describes "our extensive portfolio of radiator variants" as unique worldwide, just like the manufacturing process that, in its words, "enables us" to craft all water-bearing parts and cooling fins from pure copper. Thanks to what Alphacool calls exceptional performance, these radiators can effortlessly dissipate even extremely high waste heat, making them indispensable in many sectors of the cooling industry.

What the loop needs

A loop uses two of the ports, one in and one out, so the radiator takes two G1/4 fittings with a thread no longer than 5 mm. It mounts three 120 mm fans on one side or six on both sides, on M3 threads. The radiator comes with all necessary screws for case and fan installation: twelve M3x5 case mounting screws and twelve M3x30 fan screws. Additional screws are typically not required.

Technical data

• L x W x H: 391.5 x 124 x 45 mm (+/- 3%)
• Quantity of cooling channels: 24
• Material cooling fins, pre-chambers & channels: copper
• Material threads: brass
• Material outer housing: stainless steel
• Threads: 4x G1/4 IN/OUT & 1x Fill-/Drainport G1/4 (max. 5 mm thread length)
• Possible fan size: 120 mm
• Possible fan assembly: 3x one-sided / 6x both-sided
• Thread size fan mounting: M3
• Pressure tested: 0.8 Bar
• Maximum working temperature: 60 °C

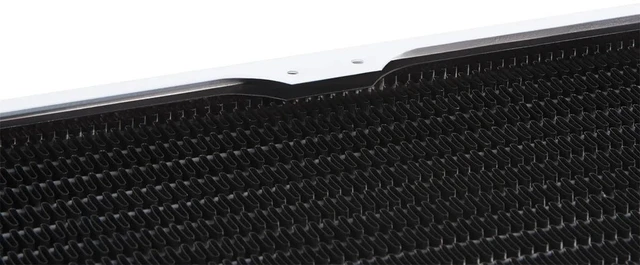

• Fin density: 16 FPI
• Weight: 1240 g
• Color: white

Notes

• Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses, which can also void the manufacturer's warranty.

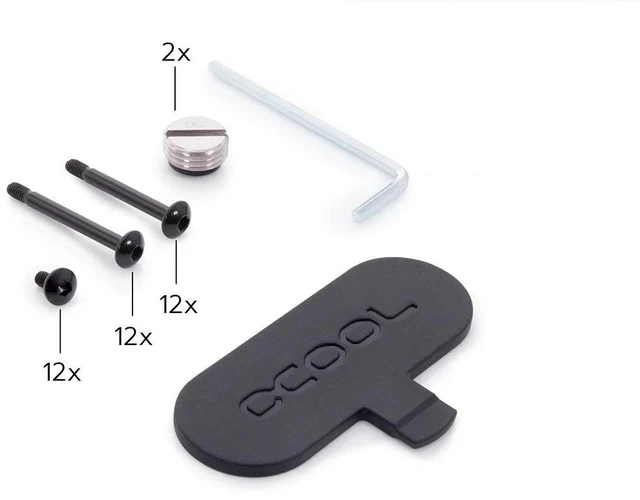

In the box

• 1x Alphacool NexXxoS HPE-45 Full Copper 360mm Radiator, white
• 12x M3x5 case mounting screws
• 12x M3x30 fan screws
• 1x Allen key
• 1x plug tool
