Alphacool Core Geforce RTX 5080 Suprim + Vanguard Waterblock with Backplate, G1/4, Chrome Plated Copper, ARGB (10265)

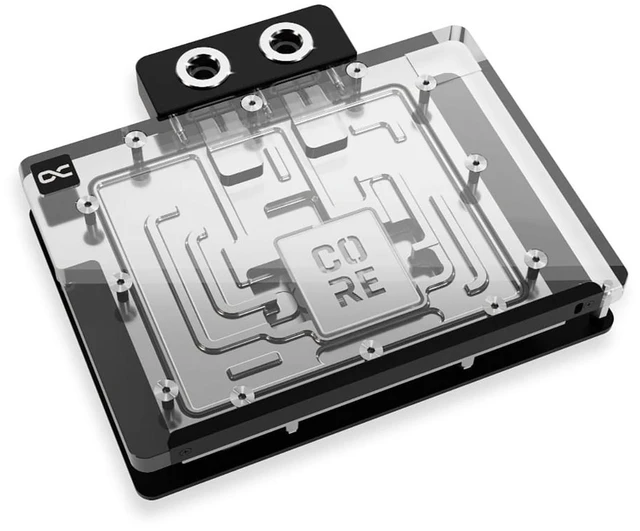

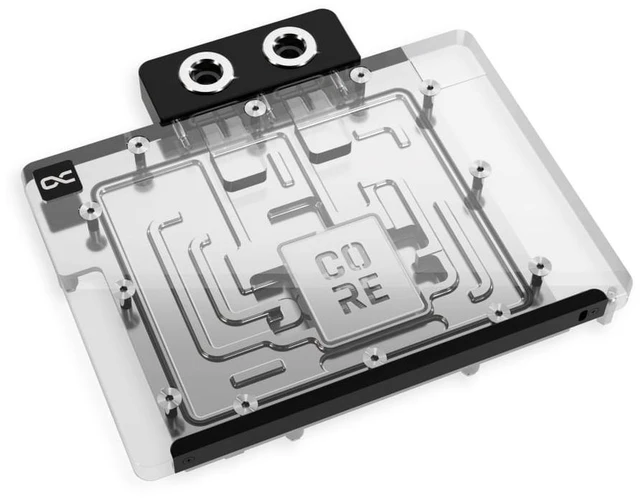

The Alphacool Core Geforce RTX 5080 Suprim + Vanguard Waterblock with Backplate is a GPU water block for MSI's Nvidia GeForce RTX 5080 Suprim and Vanguard graphics cards. The 16G SUPRIM SOC and the 16G Vanguard SOC are two of them, and Alphacool also lists the MSI GeForce RTX 5080 16G EXPERT OC and the RTX 5070 Ti 16G Vanguard SOC. It cools the card with a chrome-plated copper block under an acrylic top, and the aluminum backplate is in the box.

Properties

• Fits: MSI GeForce RTX 5080 Suprim, Vanguard and EXPERT OC, RTX 5070 Ti Vanguard
• Cold plate: Chrome-plated copper
• Top: Acrylic, transparent
• Ports: 4 x G1/4
• Backplate: Aluminum, included

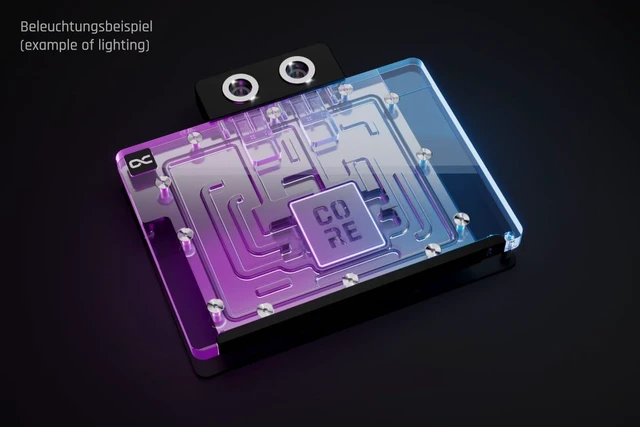

• Lighting: 8 digital aRGB LEDs, 5V

Compatibility

Alphacool lists these cards for this block:

• MSI GeForce RTX 5070 Ti 16G Vanguard SOC
• MSI GeForce RTX 5080 16G SUPRIM LIQUID SOC
• MSI GeForce RTX 5080 16G SUPRIM SOC (MS-V531 VER:2.0)
• MSI GeForce RTX 5080 16G Vanguard SOC (MS-V531 VER:2.0)
• MSI MSI GeForce RTX 5080 16G EXPERT OC (G5080-16EC)

The block was designed for one PCB layout, and card makers sometimes revise a board so that a cooler no longer fits later models. Before ordering, compare your card and its PCB number with the pictures in Alphacool's GPU configurator, or look it up in its Compatibility List for Nvidia cards.

Technical data cooler

• Dimensions total (L x W x H): 181.50 x 161.03 x 34.19 mm

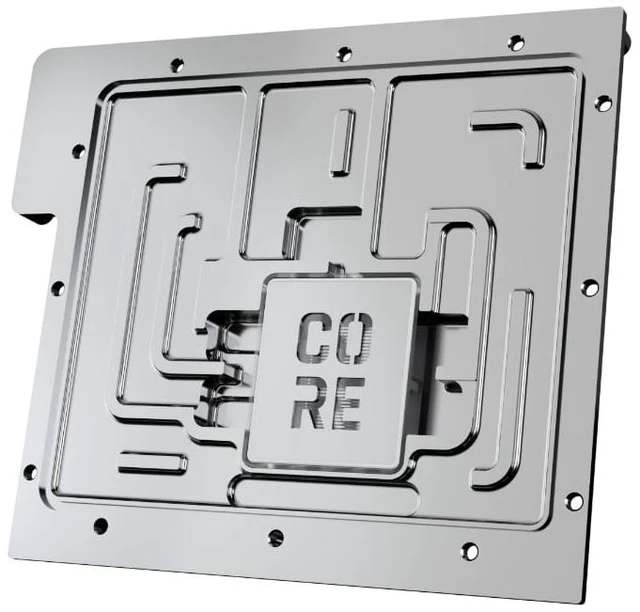

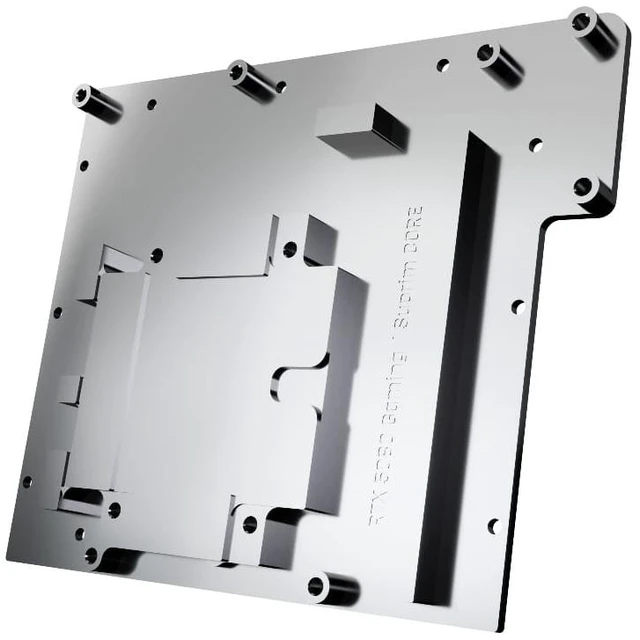

• Material cooler: chrome-plated copper
• Material cooler top: Acrylic
• Material terminal: Nylon
• Material Connection thread: Brass
• Max working temperature: 60 °C
• Pressure tested: 0.8 bar
• Threads: 4 x G1/4
• Thickness cooler bottom: 3.25 mm
• Thickness cooling fins: 0.4 mm
• Distance cooling fins: 0.4 mm
• Illumination: digital aRGB LEDs
• Power connector digital aRGB LEDs: 3-Pin JST
• Power digital aRGB LEDs: 5V
• Number of digital aRGB LEDs: 8
• Color: transparent

Technical data backplate

• Dimensions (L x W x H): 181.50 x 132.50 x 6 mm
• Thickness backplate without spacers: 3 mm
• Material: Aluminum

Notes

• Alphacool asks that the block be used only with clear transparent water cooling fluids. It warns that the particles and additives in Pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, and that this can void the manufacturer's warranty.
• Remove the original cooler on an antistatic mat and clean the card of thermal paste and pad residues before fitting the block.

In the box

• 1x Core Geforce RTX 5080 Suprim + Vanguard cooler
• 1x Backplate
• 1x 55x15x1mm Pad
• 2x 26x15x1mm Pad
• 1x 83x8x1mm Pad
• 3x 15x8x1mm Pad
• 1x 8x8x1mm Pad
• 2x 26x8x3mm Pad
• 1x 55x8x3mm Pad
• 1x 45x45x3mm Pad
• 1x 20x8x3mm Pad
• 1x Thermal Grease
• 1x Putty tool
• 1x ARGB Adapter
• 1x PCIe Bracket
• 1x Plug tool
• 1x Screwdriver
• 2x G1/4 Plug
• 12x M2x10mm screws
• 1x M3x4mm screw
• 1x Washer
