Alphacool Eisbaer LT92 AIO CPU Cooler - Black Without Fan, 92mm, 11/8mm (11761)

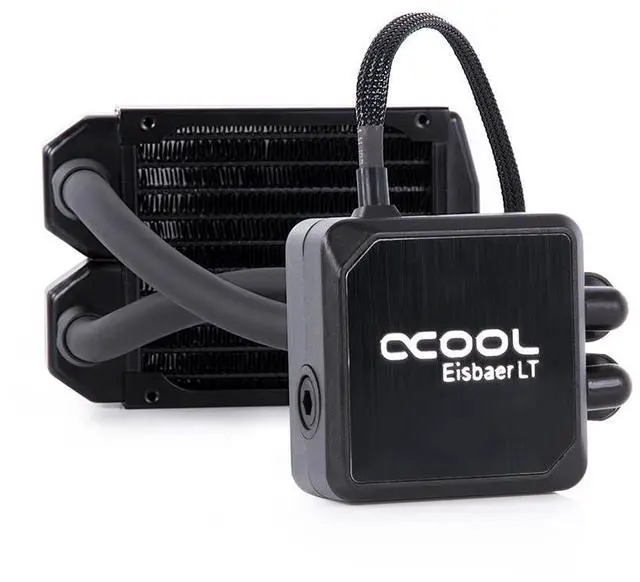

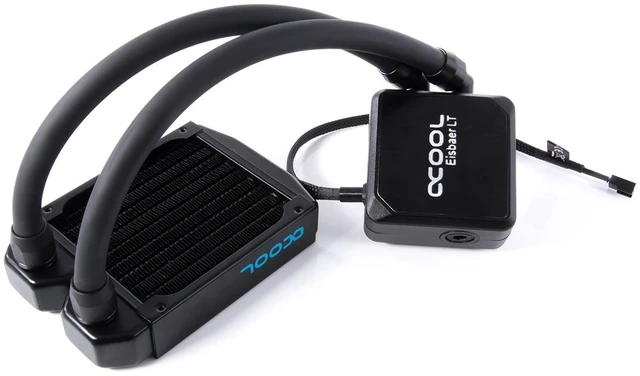

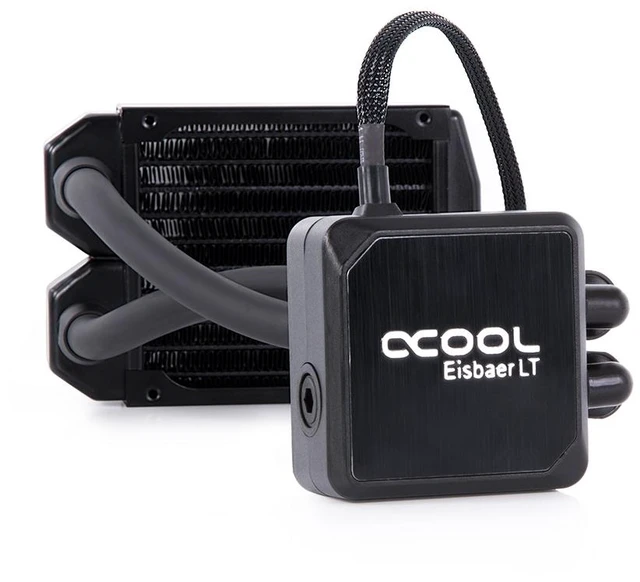

The Alphacool Eisbaer LT92 CPU - black (without Fan) is an AIO liquid cooler with a 92 mm radiator for AMD AM4 and AM5 and Intel LGA 1700 and 1851, among the sockets listed below. It has been launched especially for small form factor cases: the pump unit is 40 mm high and the hoses are 25 cm long. Note: this AIO unit does not include a fan, so add one from our 92mm fans.

Properties

• Intel sockets: LGA 775, 1150, 1151, 1156, 1200, 1366, 1700, 1851, 2011, 2011-3, 2066
• AMD sockets: 754, 939, 940, AM2, AM2+, AM3, AM3+, AM4, AM5, C32, FM1, FM2, FM2+, G34
• Radiator: 92 mm, 134 x 92 x 30 mm
• Fans in the box: None
• Pump: DC-LT 2, 2600 rpm
• Tubes: 25 cm, no quick release

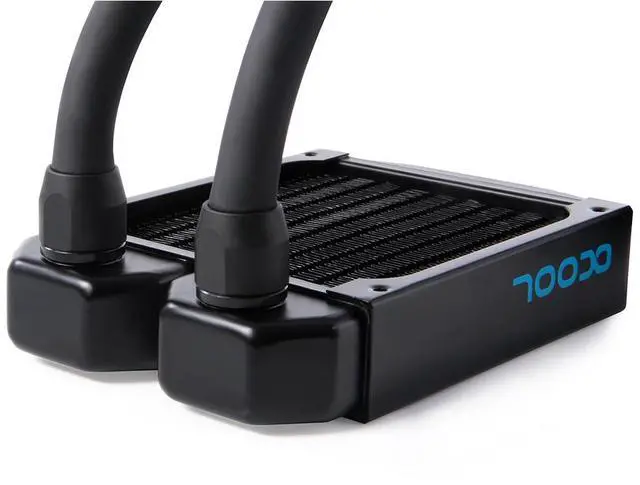

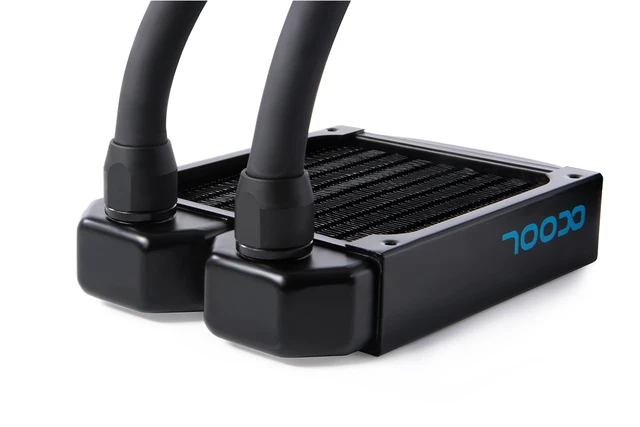

Technical data radiator

• L x W x H: 134 x 92 x 30 mm (+/- 3%)
• Material cooling fins: Copper
• Material chambers: Copper
• Material cooling channels: Copper
• Material threads: Brass
• Material outer housing: Stainless steel
• G1/4 threads: 2 x for tubes
• For fan size: 92 mm
• Possible fan assembly: 1 x one-sided / 2 x both-sided

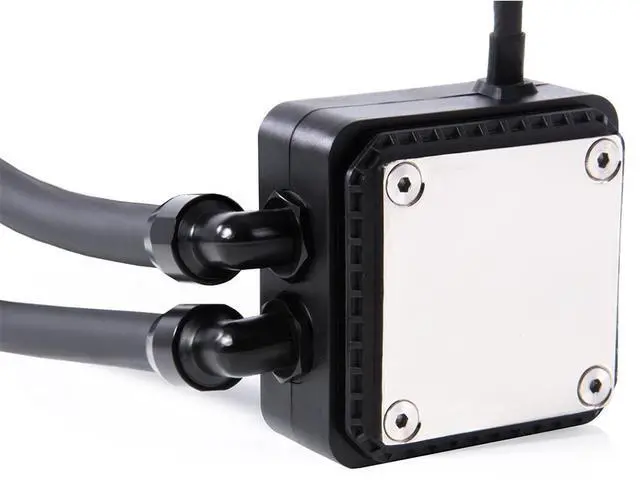

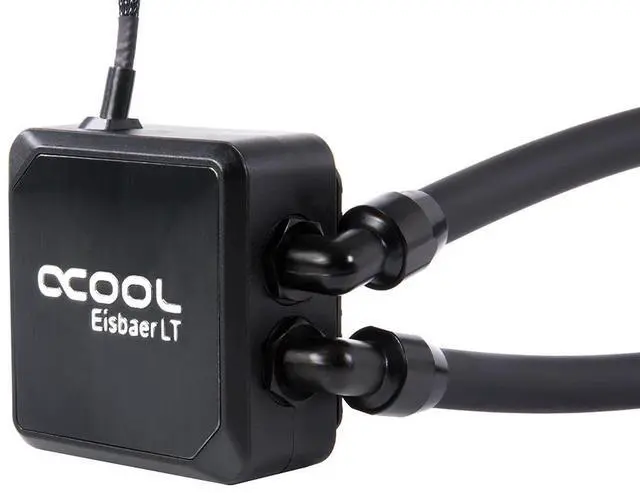

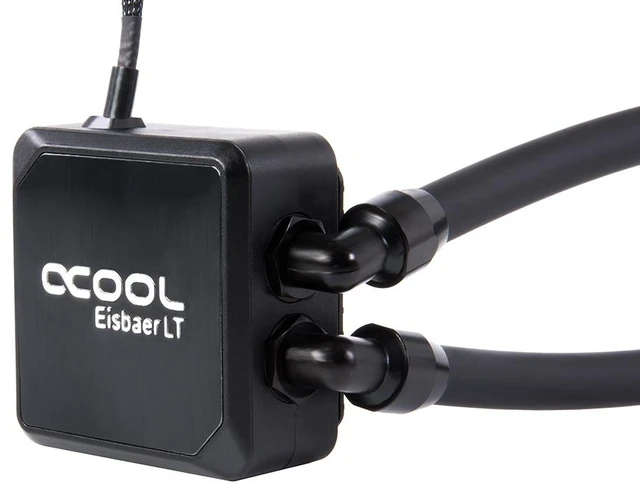

Technical data cooler with pump

• L x W x H: 69 x 69 x 39 mm

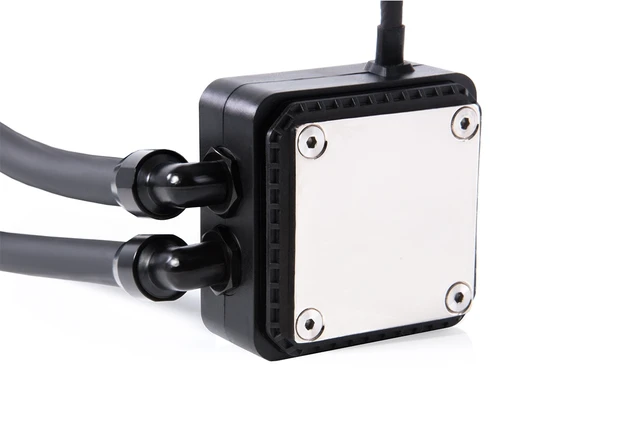

• Material cooler bottom (radiator bottom): Nickel-plated copper
• Material cooler top: PMMA
• Threads (connections): 2 x G1/4 (+ 1x Fillport G1/4)
• Pump type: DC-LT 2
• Pump speed: 2600 rpm (+/- 10%)
• Head of delivery (delivery height): 1 m
• Maximum flow rate: 72 L/h
• Voltage: 6-13.5V DC
• Power consumption: 3.2 W
• MTBF: 50.000 h (fifty thousand hours)

Technical data liquid

• Color: Clear
• Ingredient 1: Distilled water (CAS number 7732-18-5)
• Ingredient 2: Glysantin (ethylene glycol, CAS number 107-21-1)
• Working temperatures: -15 °C / +90 °C

Technical data fittings

• L x D straight fitting: 24 x 18 mm
• Quantity straight fittings: 2x
• L x B x H 90° fitting: 35 x 27 x 17 mm
• Quantity 90° fittings: 2x
• For tube size: 12.7 / 7.6 mm
• Material fittings: Brass

Technical data tube

• Length: 25 cm
• Material tube: TPV (EPDM/PP)
• Color: Matte black
• Tube Size: 12.7 / 7.6 mm
• Hardness grade: 35 Shore-A to 50 Shore-D
• Working temperature: -50 to +155 °C

Notes

• Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.
• If the pump is unusually loud at first, the manual blames air bubbles from transport and suggests tipping the case back and forth a little. Mount the radiator above the water block; after around 12 hours of operation the air should be gone.

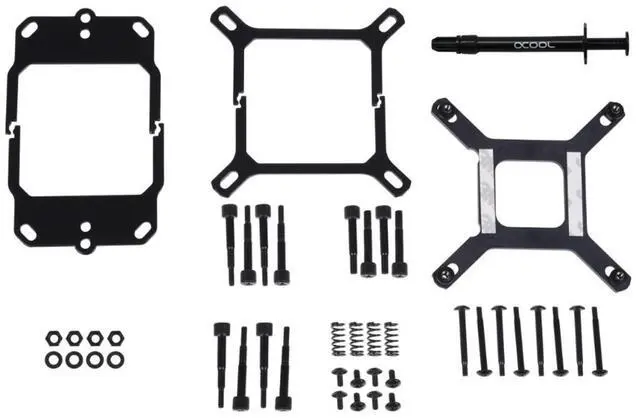

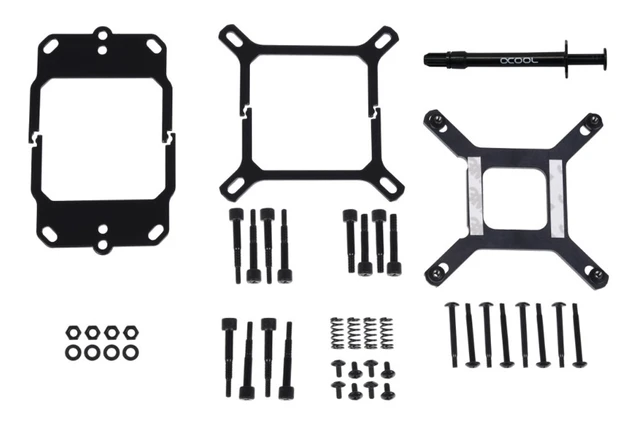

In the box

• 1x Alphacool Eisbaer LT92 CPU - black (without Fan)
• 1x Mounting set AMD
• 1x Mounting set Intel
• 1x Thermal compound
• 4x M3x5 case mounting screws
• 4x M3x30 fan screws
