Alphacool ES Orbiter 360 TS, 360mm (11932)

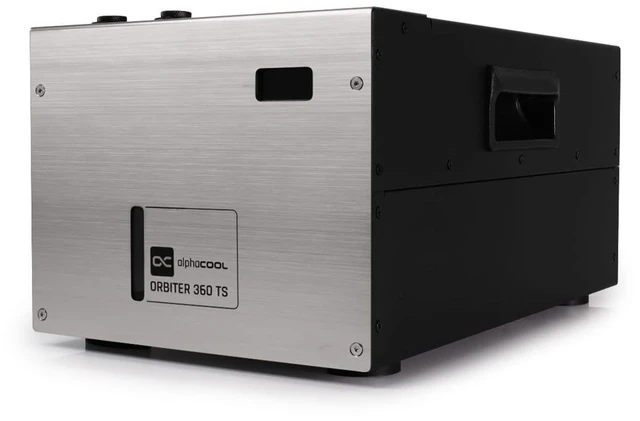

The Alphacool ES Orbiter 360 TS is an external cooling system designed for industrial use. It holds a third-generation VPP755 pump, a 445 ml expansion tank and a total of 360mm of radiator with three 120mm fans. Alphacool says it can dissipate waste heat of up to 1300 watts at an ambient temperature of 23 °C.

Properties

• Pump: VPP755, third generation, 340 l/h
• Capacity: 445 ml expansion tank
• Radiators: 120mm and 240mm HPE-30 NexXxoS Full Copper, 30mm thick

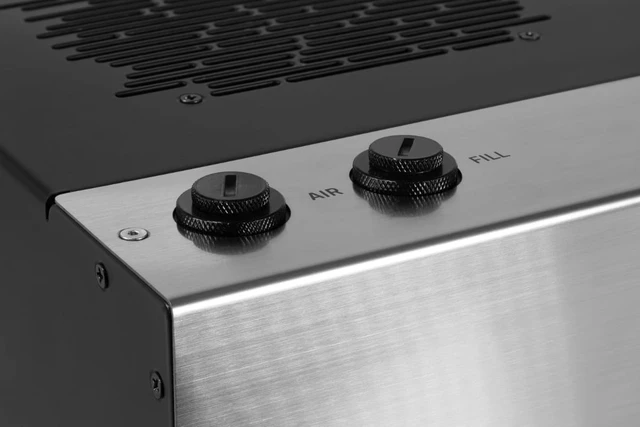

• Ports: 2x G1/4 water connections, 1x G1/4 fill port, 1x G1/4 air equalization
• Size (L x W x H): 378.80 x 224.46 x 185.30 mm
• Max. cooling capacity: up to 1300 W at 23 °C ambient

What the loop needs

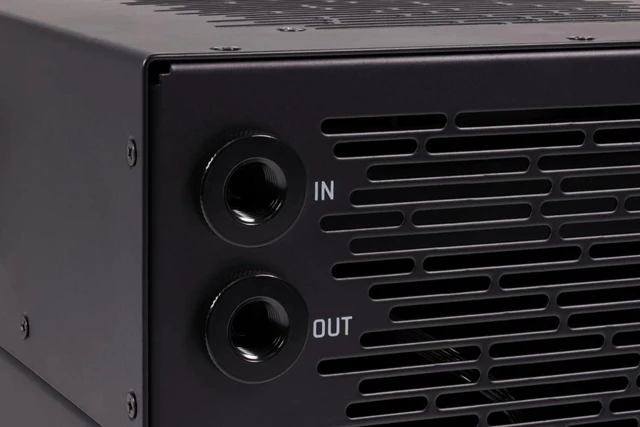

The inlet and outlet are two G1/4 threads, and installing the water connections there is the manual's first step. Fittings are not on the box list: pick them to match your tube. Fill coolant through the fill port with the funnel in the box, because the manual says not to operate the Orbiter without coolant. It starts as soon as it is connected to the power supply. During first commissioning the filling level may drop as air escapes from the individual components, so watch it and refill if necessary. The TPV (EPDM) hose has a service temperature of -50 °C to 155 °C.

Technical data ES Orbiter

• Dimensions (L x W x H): 378.80 x 224.46 x 185.30 mm
• Housing: Material: Metal
• Radiator: Material: Copper
• Tube: Material: TPV (EPDM)
• Radiator: Fins Per Inch: 18
• Approved liquids: water, water/glycol mixture
• Max. Cooling capacity: up to 1300 W at an ambient temperature of 23 °C

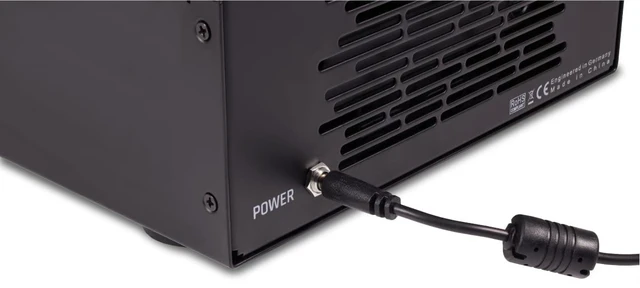

• Voltage: 12V DC
• Total power consumption: 17.7 W
• Approved water pressure: 0.8 bar
• Fillport: 1x G1/4

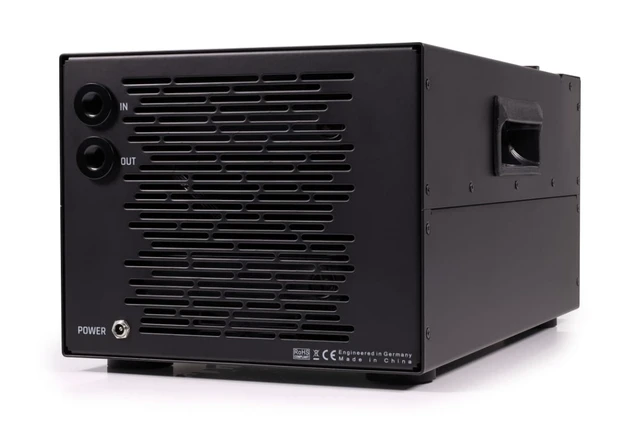

• Water connections: 2x G1/4
• Air balance connection: 1x G1/4
• Permitted operating temperature (PC water cooling): 60 °C
• Permitted operating temperature (industrial applications): 75 °C
• Reservoir: Volume: 445 ml
• Pump: Flow rate: 340 l/h
• Pump: max. pumping head: 3.125 m
• Fan: max. speed: 2500 rpm
• Fan: max. air flow rate: 83.3 m³/h

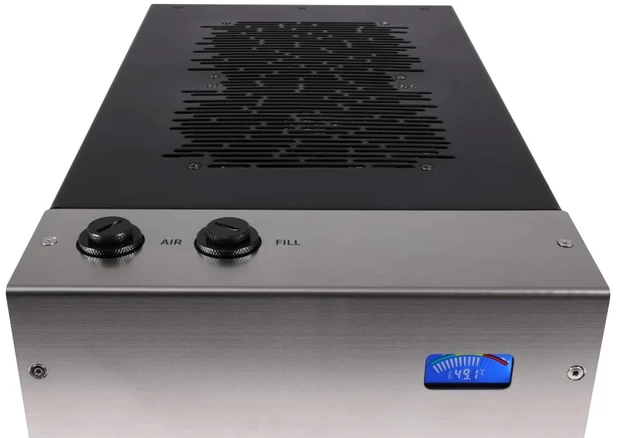

• Display: Multicolored, indication optionally in °C or Fahrenheit
• Sensor type: NTC 10k ohm thermistor
• Color: black, silver

Notes

• Please note: only use the Orbiter in conjunction with clear, transparent water cooling liquids. Alphacool warns that the particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in the manufacturer's warranty also becoming void.

In the box

• 1x ES Orbiter 360 TS
• 1x Filling funnel G1/4
• 1x Power Supply 120cm
• 1x Power Plug 50cm
