Alphacool Eisblock Aurora Acryl GPX-N RTX 3070 Gaming Twin Edge with Backplate GPU Water Block, G1/4, Nickel Plated Copper (11954)

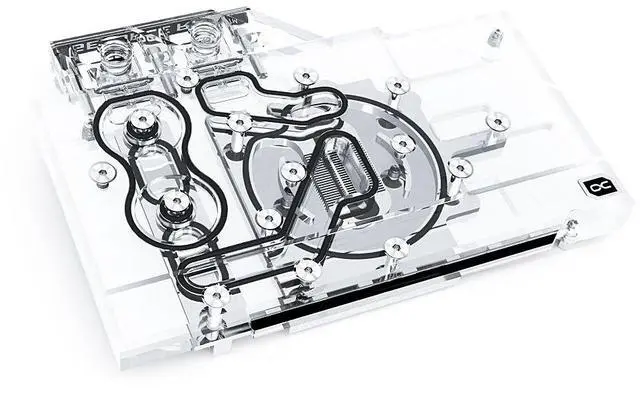

The Alphacool Eisblock Aurora Acryl GPX-N RTX 3070 Gaming Twin Edge with Backplate is a GPU water block for the Zotac Gaming GeForce RTX 3070 Twin Edge and Twin Edge OC, two Nvidia graphics cards. Alphacool's compatibility list also names the Zotac GeForce RTX 3060 AMP White Edition for it. It cools the card with a nickel-plated copper block under an acrylic top lit by digital RGB LEDs, and the backplate is in the box.

Properties

• Fits: Zotac Gaming GeForce RTX 3070 Twin Edge and Twin Edge OC, Zotac GeForce RTX 3060 AMP White Edition
• Cold plate: Nickel-plated copper, 5.5 mm
• Top: Acrylic
• Ports: 4 x G1/4

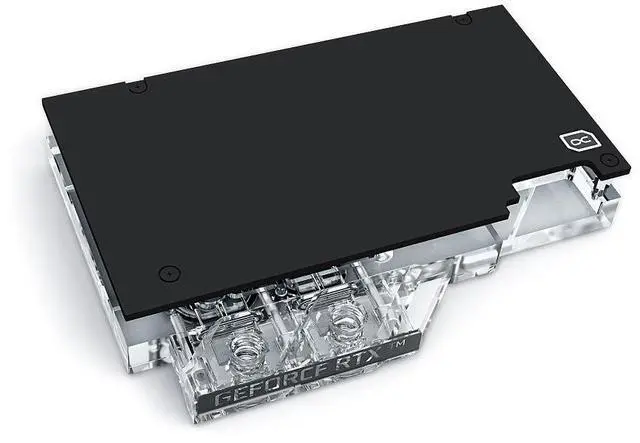

• Backplate: Included

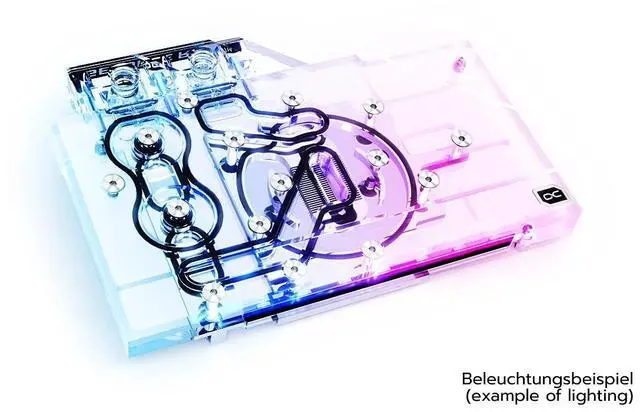

• Lighting: Digital RGB LEDs, 5V, 3-Pin JST

Compatibility

Alphacool's compatibility list for Nvidia cards names these cards for this block:

• Zotac Gaming GeForce RTX 3070 Twin Edge OC, 8GB GDDR6, HDMI, 3x DP (ZT-A30700H-10P)
• Zotac Gaming GeForce RTX 3070 Twin Edge, 8GB GDDR6, HDMI, 3x DP (ZT-A30700E-10P)
• Zotac GeForce RTX 3060 AMP White Edition, 12GB GDDR6 (ZT-A30600F-10P)

The block was built for one PCB layout, that of the cards listed here. Before ordering, check the details of your card and its part number in Alphacool's Graphics Card Configurator, or look it up in its List of Compatibility for Nvidia graphic cards.

More performance

During the development of this graphic card GPU block, Alphacool's line was "we wanted to further increase the performance". The first step was to move the cooler closer to the individual components, done by reducing the thermal pads to a thickness of 1 mm. Next, Alphacool reduced the nickel-plated copper block: instead of 7 mm, it is now only 5.5 mm thick. The water flow inside the cooler has also been optimized. According to Alphacool, all important components, such as the voltage transformers and the memory, are now significantly better and more effectively cooled by the water. It says all this ensures a significant increase in cooling performance. With experience of over 16 years, it says, it has the ability to create GPU blocks that represent high quality and fantastic performance, and that this perfectly describes the Aurora Acryl GPX Eisblock.

What the loop needs

The block has four G1/4 threads, and two of them take the compression fittings for your tube size, which are not in the box. The lighting runs on 5V and connects through a 3-Pin JST plug. The backplate comes with the block.

Technical data

• L x W x H: 128 x 185 x 24.5 mm
• Material cooler: Nickel-plated copper
• Material cooler top: Acrylic
• Threads: 4 x G1/4
• Thickness cooling fins: 0.6 mm
• Illumination: Digital RGB LEDs
• Power connector Digital RGB LEDs: 3-Pin JST
• Power Digital RGB LEDs: 5V

In the box

• 1x Alphacool Eisblock Aurora Acryl GPX-N RTX 3070 Gaming Twin Edge with Backplate
