Alphacool Eisbaer Aurora HPE Edition 360 CPU AIO, 360mm, Copper (11999)

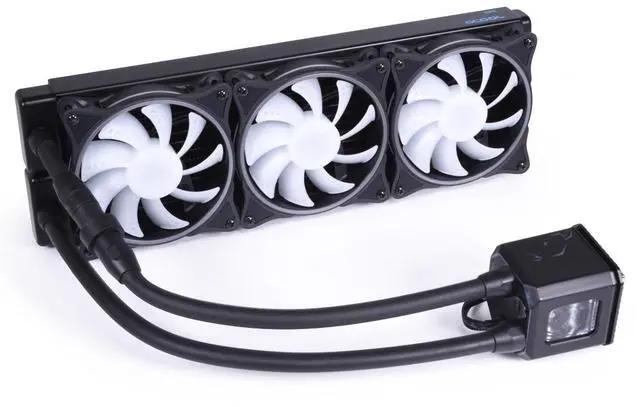

The Alphacool Eisbaer Aurora HPE Edition 360 CPU AIO is an AIO liquid cooler with a 360 mm full copper HPE radiator and three 120mm fans. It fits AMD AM4, AM5, TR4, sTRX4, sWRX8 and SP6 and Intel LGA 1200, 1700, 1851, 2011, 2011-3 and 2066, plus the older Intel sockets listed under Properties. It arrives pre-assembled and pre-filled, and its quick-release fastener lets you expand the loop with additional components.

Properties

• Intel sockets: LGA 1150, 1151, 1155, 1156, 1200, 1700, 1851, 2011, 2011-3, 2066
• AMD sockets: AM4, AM5, SP6, sTRX4, sWRX8, TR4
• Radiator: 360 mm NexXxos ST30 HPE, 391.5 x 124 x 30 mm (+/- 3%)
• Fans in the box: 3 x 120mm Rise Aurora, 0-2500 rpm
• Pump: DC-LT 2, 2600 rpm (+/- 10%)
• Tubes: 40 cm, 12.7/7.6 mm TPV, expandable by quick release

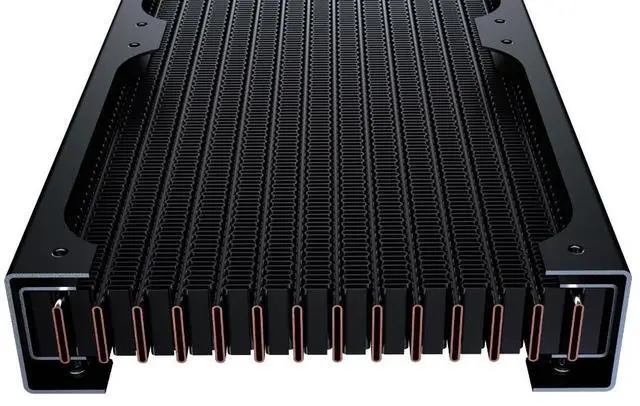

Technical data radiator

• L x W x H: 391.5 x 124 x 30 mm (+/- 3%)
• Material cooling fins, pre-chambers (antechambers) & cooling channels: copper
• Material threads: brass
• Material outer housing (outer case): stainless steel
• Threads (connections): 2x G1/4
• Possible fan size: 120 mm
• Possible fan assembly (assignment): 3x one-sided / 6x both-sided
• Pressure tested: 0.8 bar
• Maximum working temperature: 60 °C
• Fin density (fin spacing): 18 FPI

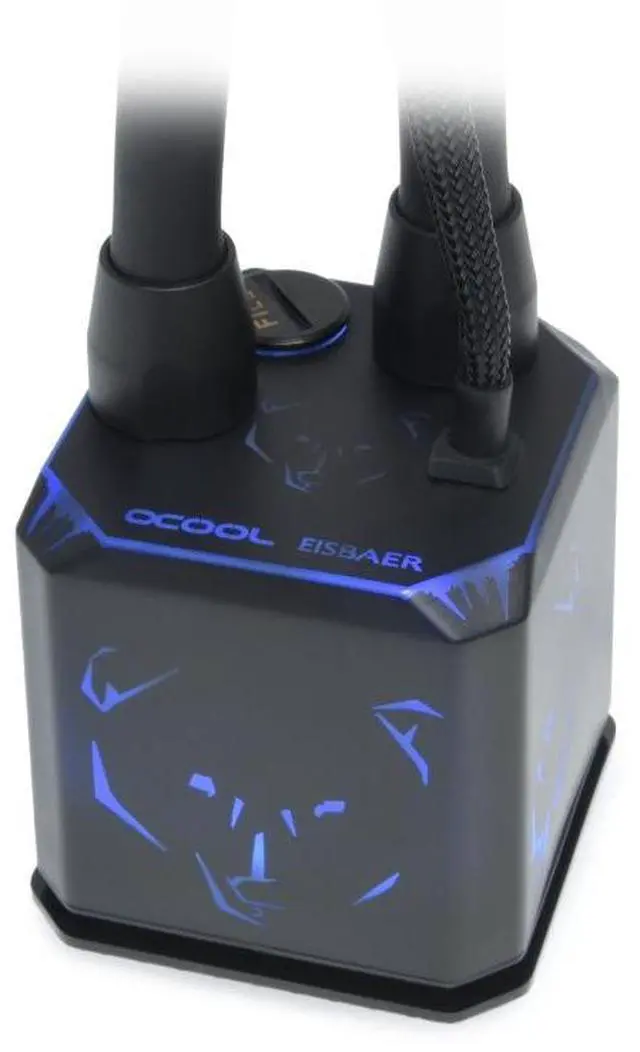

Technical data cooler with pump

• L x W x H: 66 x 66 x 69 mm
• Material cooler bottom: nickel plated copper
• Material cooler top (housing) & reservoir: nylon, acrylic
• Threads: 2x G1/4 (+ 1x Fillport G1/4)
• Pump type: DC-LT2
• Pump speed: 2600 rpm (+/- 10%)
• Head of delivery: 1 m
• Maximum flow rate: 72 L/h
• Voltage: 6-13.5V DC
• Power consumption: 3.2 W
• Pressure tested: 0.8 bar
• Maximum working temperature: 60 °C

These are the values of Alphacool's current page and data sheet. Earlier Alphacool specifications for this pump gave a head of 0.95m, a maximum flow of 75L/hr, 12Vdc and a power consumption of 4W.

Technical data fans

• L x W x H: 120 x 120 x 25 mm
• Speed (rotation speed): 0-2500 rpm (+/- 10%)
• Bearing (fan bearings): Sleeve Bearing
• Connection: 4-Pin PWM
• Cable length: 40 cm
• Voltage: 12V DC
• Current consumption: 0.65A (0.72 max)
• Static pressure: 3.17 mm/HO
• Max. air flow: 118.9 m³/h
• Noise (volume): max. 31.5 dB(A)
• Number of digital aRGB LEDs: 20

Technical data liquid

• Color: clear
• Ingredient 1: distilled water (CAS number 7732-18-5)
• Ingredient 2: Glysantin (CAS number 1017-21-1)
• Working temperatures: 15 °C / +90 °C

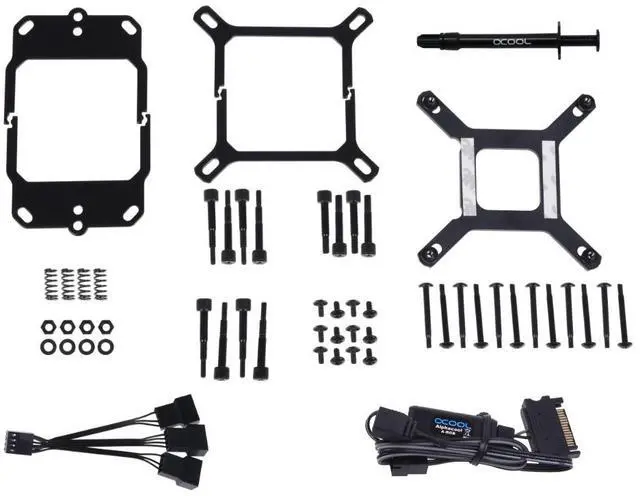

In the box

• 1x Eisbaer Aurora HPE Edition 360 CPU AIO (radiator, fan & cooler)
• 1x Mounting set AMD
• 1x Mounting set Intel
• 1x Thermal compound
• 12x M3x5 case mounting screws
• 12x M3x30 fan screws
• 1x Y-adapter 4-Pin PWM
• 1x Digital RGB controller
• 1x 3-Pin JST to 3-Pin 5V adapter
