Alphacool Eisblock Aurora Acryl GPX-N RTX 3090TI Founders Edition with Backplate (13056)

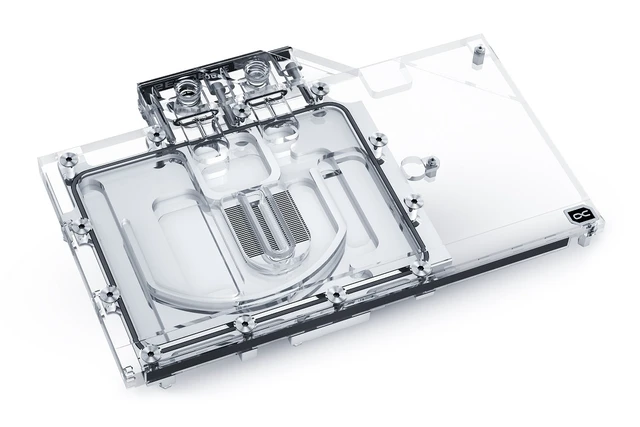

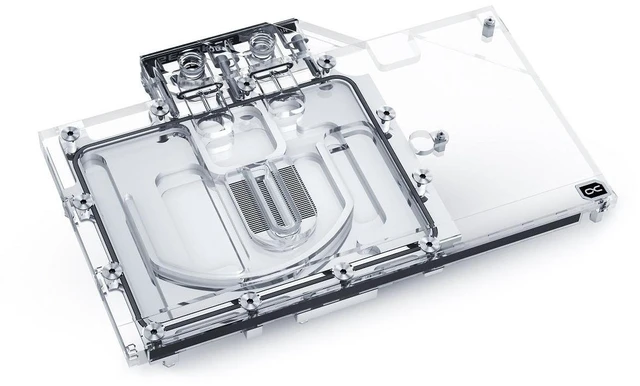

The Alphacool Eisblock Aurora Acryl GPX-N RTX 3090TI Founders Edition with Backplate is a GPU water block for the NVIDIA GeForce RTX 3090 Ti Founders Edition graphics card. Alphacool also lists two Inno3D RTX 3090 Ti cards for it, the ICHILL FROSTBITE and the X3 OC. It cools the card with a nickel-plated copper block under an acrylic top, and the black aluminum backplate is in the box.

Properties

• Fits: GeForce RTX 3090 Ti Founders Edition, Inno3D ICHILL FROSTBITE and X3 OC
• Cold plate: Nickel-plated copper
• Top: Acrylic
• Ports: 4 x G1/4
• Backplate: Aluminum, black, included

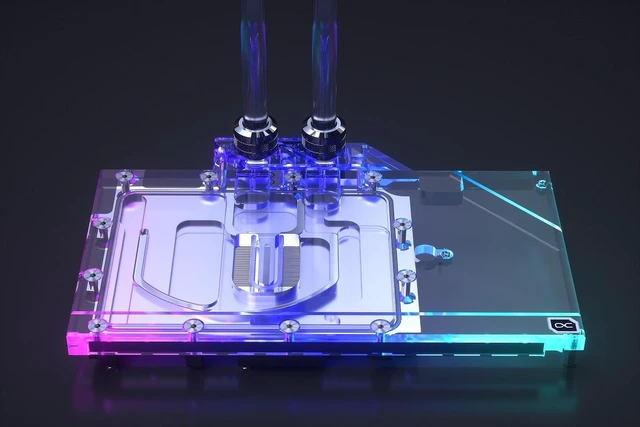

• Lighting: 11 digital aRGB LEDs, 5V

Compatibility

Alphacool lists these cards for this block:

• Inno3D GEFORCE RTX 3090 TI ICHILL FROSTBITE
• Inno3D GEFORCE RTX 3090 TI X3 OC
• Nvidia 3090 Ti Founders Edition

The block was designed for one PCB layout, and graphics card manufacturers occasionally revise a card so that a cooler no longer fits later models. Before ordering, compare your card and its PCB number with the pictures in Alphacool's GPU configurator, or look it up in its compatibility list for Nvidia cards. Alphacool's active backplate for this block, which water-cools the back of the card, is the Eisblock Aurora GPX-N Acryl Active Backplate 3090 TI Founders Edition.

Technical data cooler

• L x W x H: 220.5 x 146.40 x 23.35 mm
• Material cooler: Nickel-plated copper
• Material cooler top: acrylic
• Threads: 4 x G1/4
• Thickness cooling fins: 0.6 mm
• Illumination: digital aRGB LEDs
• Power connector digital aRGB LEDs: 3-Pin JST
• Power digital aRGB LEDs: 5V
• Number of digital aRGB LEDs: 11
• Maximum working temperature: 60 °C
• Pressure tested: 0.8 bar

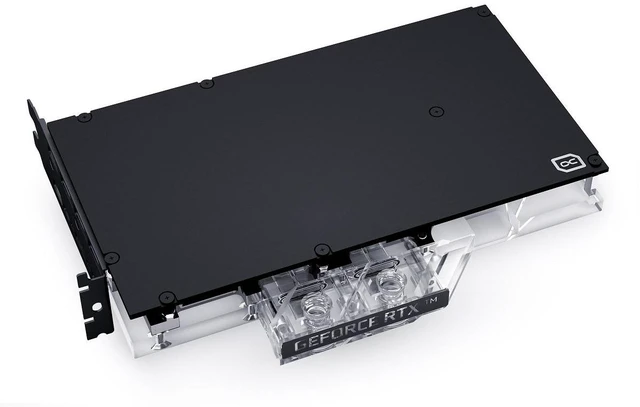

Technical data backplate

• L x W x H: 220 x 121.4 x 6 mm
• Material: aluminum
• Color: black

Notes

• Alphacool asks that the block be used only with clear transparent water cooling fluids. It warns that the particles and additives in Pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, and that this can void the manufacturer's warranty.
• Remove the original cooler on an antistatic mat, taking extreme care if it is held with thermal glue. Clean the card of thermal paste and pad residues with a solvent such as isopropanol alcohol before fitting the block.
• Spread the thermal grease on the GPU in a layer less than a millimeter thick, so that it does not contaminate the surrounding components. The manual shows the pad positions for the short and the long PCB version.

In the box

• 1x Eisblock Aurora Acryl GPX-N RTX 3090TI Founders Edition cooler
• 2x 8x100x1mm thermal pad
• 2x 15x51x1mm thermal pad
• 1x 15x40x1mm thermal pad
• 1x 15x15x1mm thermal pad
• 2x 15x51x3mm thermal pad
• 1x 15x40x3mm thermal pad
• 1x 15x15x3mm thermal pad
• 1x 30x30x3mm thermal pad
• 2x 8x100x3mm thermal pad
• 1x IO Shield
• 3x M3x5 screws
• 4x M2x5 screws
• 4x M2 washers
• 8x M2x11 screws
• 2x Screw plugs
• 1x plug tool
• 1x Thermal grease
• 1x digital-RGB adapter
• 3x M2x1.6 washers
• 1x backplate
