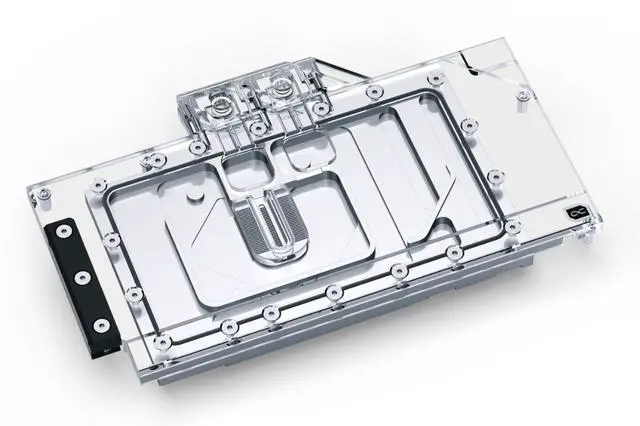

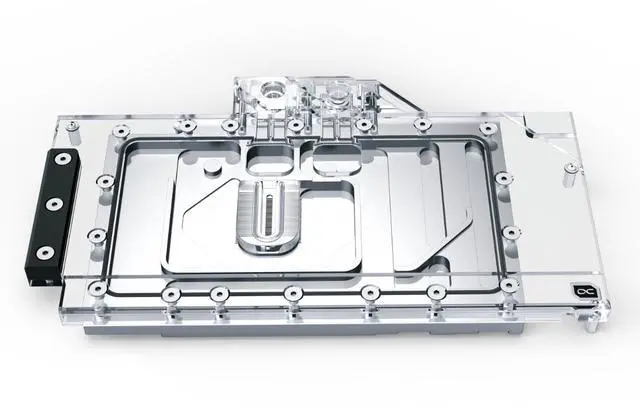

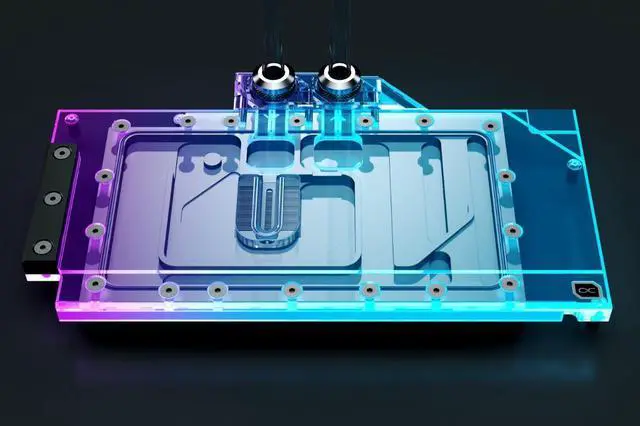

Alphacool Eisblock Aurora Acryl GPX-N Geforce RTX 3090 TI Strix/TUF with Backplate GPU Water Block, G1/4, Nickel Plated Copper (13088)

The Alphacool Eisblock Aurora Acryl GPX-N Geforce RTX 3090 TI Strix/TUF with Backplate is a GPU water block for two Asus GeForce RTX 3090 Ti graphics cards. They are the ROG Strix LC and the TUF Gaming, both 24GB, including their OC versions. It cools the card with a nickel-plated copper block under an acrylic top, and the black aluminum backplate is in the box.

Properties

• Fits: Asus ROG Strix LC and TUF Gaming GeForce RTX 3090 Ti
• Cold plate: Nickel-plated copper
• Top: Acrylic
• Ports: 4 x G1/4
• Backplate: Aluminum, black, included
• Lighting: 13 digital aRGB LEDs, 5V

Compatibility

Alphacool lists these cards for this block:

• Asus ROG Strix LC GeForce RTX 3090 Ti OC, ROG-STRIX-LC-RTX3090TI-O24G-GAMING, 24GB GDDR6X (90YV0HC0-M0NA00)
• Asus ROG Strix LC GeForce RTX 3090 Ti, ROG-STRIX-LC-RTX3090TI-24G-GAMING, 24GB GDDR6X (90YV0HC2-M0NA00)
• Asus TUF Gaming GeForce RTX 3090 Ti OC, TUF-RTX3090TI-O24G-GAMING, 24GB GDDR6X (90YV0HC1-M0NA00)
• Asus TUF Gaming GeForce RTX 3090 Ti, TUF-RTX3090TI-24G-GAMING, 24GB GDDR6X (90YV0HC3-M0NA00)

The block was designed for one PCB layout, and graphics card manufacturers occasionally revise a card so that a cooler no longer fits later models. Before ordering, compare your card and its PCB number with the pictures in Alphacool's GPU configurator, or look it up in its Compatibility List for Nvidia cards.

Technical data cooler

• L x W x H: 267 x 127.74 x 23 mm
• Material cooler: Nickel-plated copper
• Material cooler top: acrylic
• Threads: 4 x G1/4
• Thickness cooling fins: 0.6 mm
• Illumination: digital aRGB LEDs
• Power connector digital aRGB LEDs: 3-Pin JST
• Power digital aRGB LEDs: 5V
• Number of digital aRGB LEDs: 13

Technical data backplate

• L x W x H: 267 x 127.74 x 6 mm
• Material: aluminum
• Color: black

Notes

• Alphacool asks that the block be used only with clear transparent water cooling fluids. It warns that the particles and additives in Pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, and that this can void the manufacturer's warranty.
• Remove the original cooler on an antistatic mat, taking extreme care if it is held with thermal glue. Clean the card of thermal paste and pad residues with a solvent such as isopropanol alcohol before fitting the block.

In the box

• 2x 8x74x1mm Thermal Pad (7 W/mk)
• 3x 8x105x1mm Thermal Pad (7 W/mk)
• 2x 15x51x1mm Thermal Pad (7 W/mk)
• 1x 15x40x1mm Thermal Pad (7 W/mk)
• 1x 15x15x1mm Thermal Pad (7 W/mk)
• 1x 30x30x2mm Thermal Pad (7 W/mk)
• 2x 15x51x3mm Thermal Pad (3 W/mk)
• 1x 8x40x3mm Thermal Pad (3 W/mk)
• 1x 15x15x3mm Thermal Pad (3 W/mk)
• 1x 8x100x3mm Thermal Pad (3 W/mk)
• 2x 8x74x3mm Thermal Pad (3 W/mk)
• 4x M2x5 Screws
• 4x M2 Washers
• 1x Thermal Grease (Alphacool Subzero 16 W/mk)
• 8x M2x11 Screws
• 1x Digital-RGB Adapter
• 1x Plug Tool
• 2x Screw Plugs
• 1x Backplate
• 1x Eisblock Aurora Acryl GPX-N Geforce RTX 3090 TI Strix/TUF cooler
