Alphacool Core 1 - White (13445)

With the Core 1, Alphacool presents a new generation of CPU water cooling. The latest desktop processors are constantly becoming more powerful, but they also produce more and more waste heat. The Core 1 reliably solves this problem with the help of its completely newly developed 3D jet plate, which is also used in industry. The CPU water cooler, made entirely of metal, not only impresses with its elegant appearance, but also has a new mounting system that simplifies installation.

The best of old and new

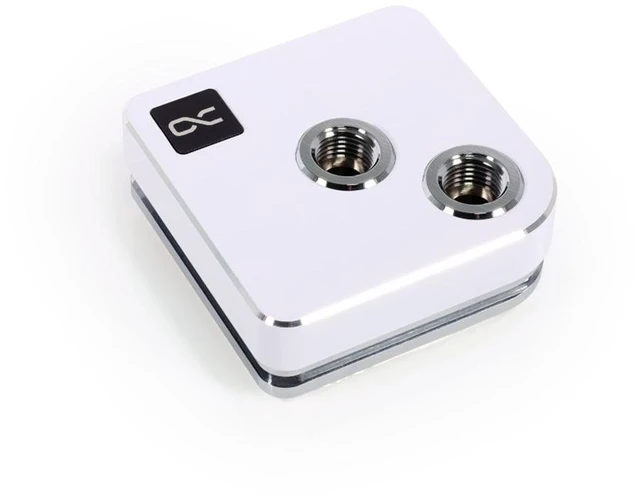

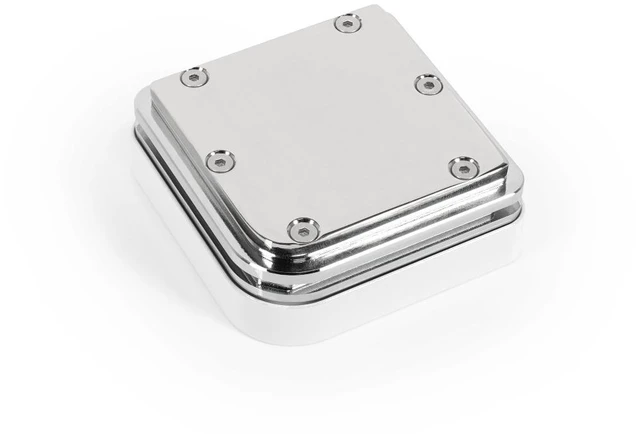

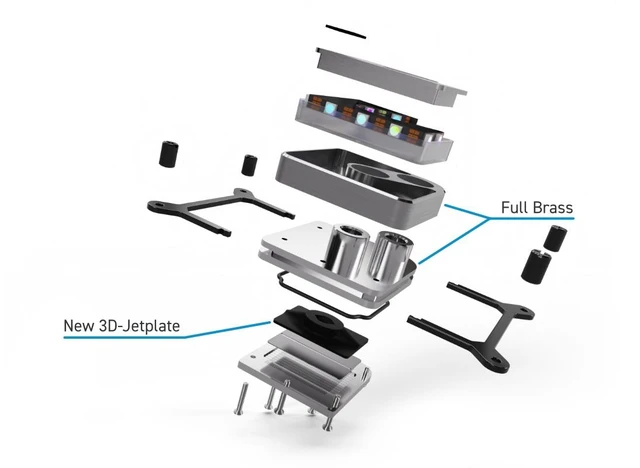

Alphacool brings the best of both worlds together with the Core 1. In addition to the new 3D jetplate, Alphacool returns to its roots by evenly distributing the coolant on the revised radiator base using a proven cross slot technique. Inside the cooler, O-rings ensure precise water flow and thus ensure effective cooling. The Core 1 housing is milled from a high-quality block of brass and has nickel-plated connections. The copper base of the cooler, also nickel-plated, has been enlarged to ensure full coverage of large CPUs.

New mounting system

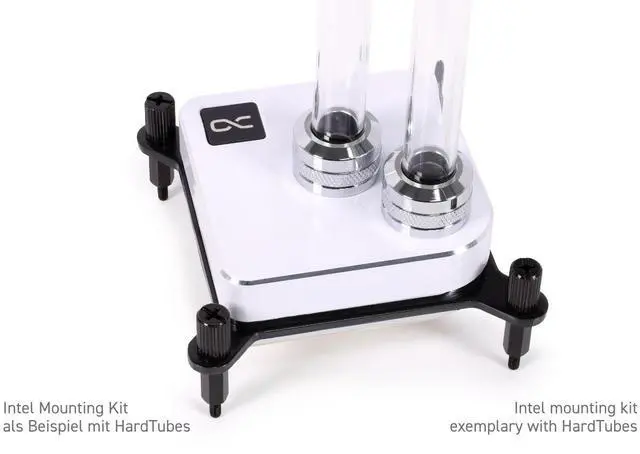

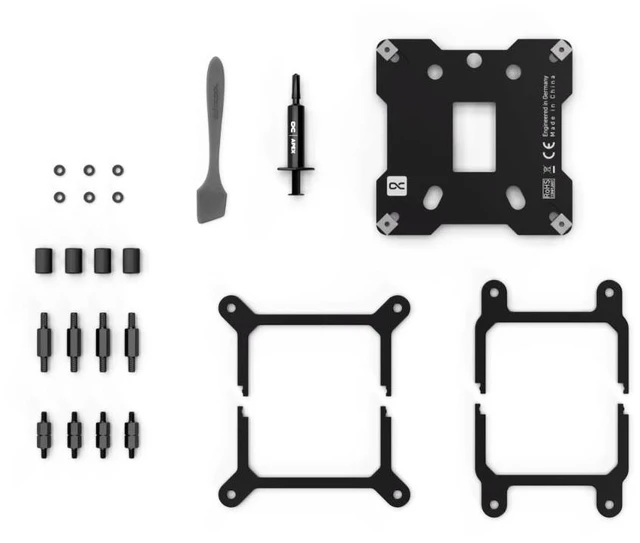

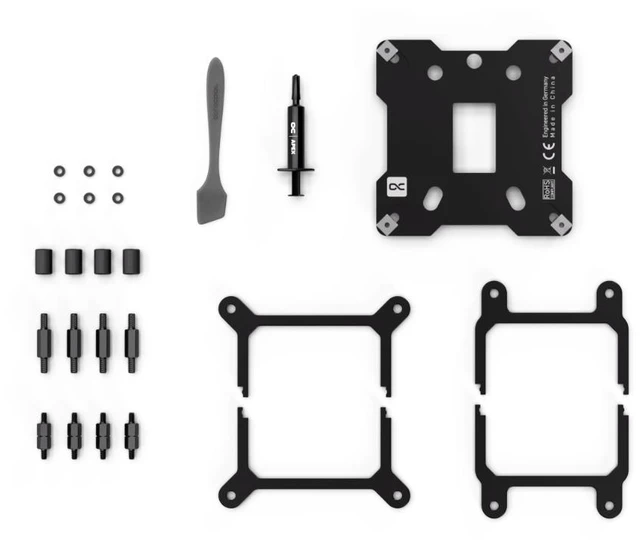

The mounting system has also been revised. Compared to the previous Alphacool models, it requires fewer screws. First, the backplate (Intel) is pre-assembled with four spacers. Then the thermal paste is applied to the CPU. The appropriate mounting frame is then placed on the CPU cooler and fastened to the spacers with four nuts.

Core Design

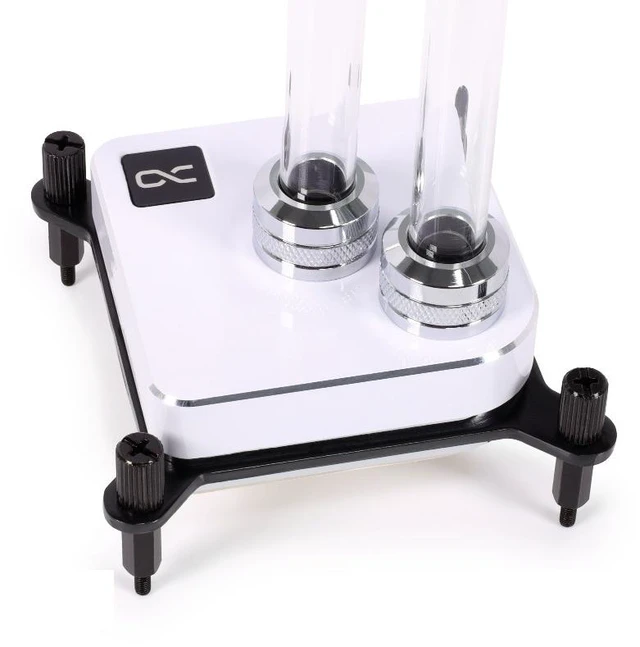

The functional and elegant design is a central element of Alphacool's Core series. The nickel-plated connections and the subtle contour line stand out from the high-quality brass housing. The rounded corners give the overall picture the perfect touch. The Core 1 is available in different color designs, as well as in subtly illuminated aRGB Aurora models.

Compatibility:
Intel: LGA 1700

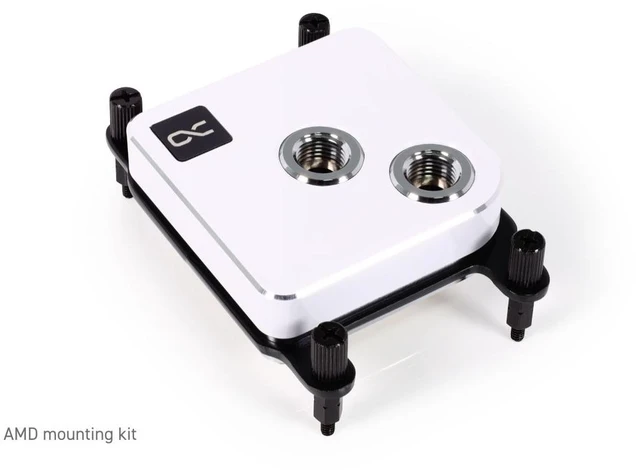

AMD: AM4 / AM5

Technical specifications
Dimensions (L x W x H)
72 x 72 x 26.50mm
Material cooler
nickel-plated copper
material housing
Brass
material connections
nickel plated brass
connections
2 x G1/4"
Finn thickness
0.4mm
Finn distance
0.4mm
Pressure tested
0.8 bars
Maximum working temperature
60°C
Weight
540g
Color
White
