Alphacool Core Geforce RTX 4090 AMP with Backplate (13481)
- Alphacool's Core product series is characterized by high quality, outstanding performance and a consistent, functional design language.
- The core of this cooler is the copper cooler, which is milled from a piece of copper together with the end terminal. The fine workmanship in combination with the hard and durable chrome plating of the entire copper cooler meets the highest quality
- The aluminum backplate, which is adapted to the design, forms a unit together with the terminal and convinces with a clear and homogeneous look on the back of the cooler. The lighting consists of digitally addressable RGB LEDs that illuminate the
- The technical development is reflected in the water supply to the jet plate and in the optimization of the jet plate itself. This was completely redesigned on the basis of many simulations and practical tests in cooperation with board partners. The
- Ports: 4x G1/4
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

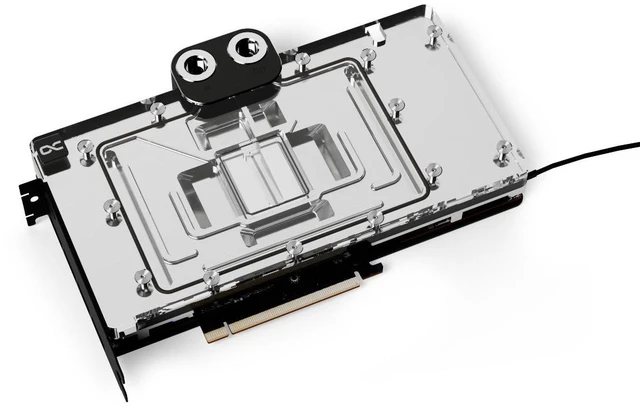

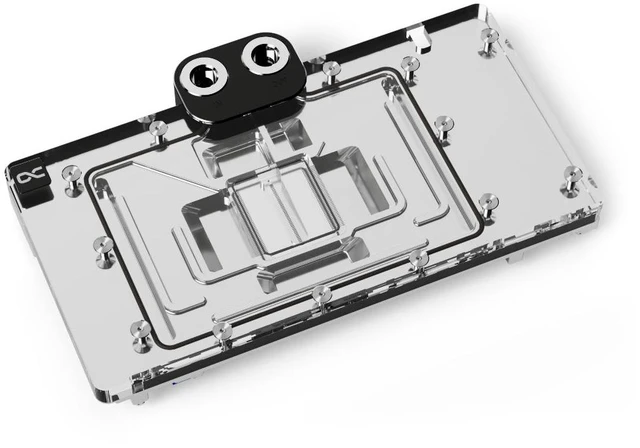

The Alphacool Core Geforce RTX 4090 AMP with Backplate is a GPU water block for the Zotac Gaming GeForce RTX 4090 AMP Extreme AIRO, an Nvidia graphics card. Alphacool also lists the Zotac Gaming RTX 4090 Trinity and Trinity OC and the Manli RTX 4090 Gallardo for it. It cools the card with a chrome-plated copper block under an acrylic top, and the black aluminum backplate is in the box.
Properties
- Fits: Zotac Gaming GeForce RTX 4090 AMP Extreme AIRO, Trinity, Trinity OC, Manli RTX 4090 Gallardo

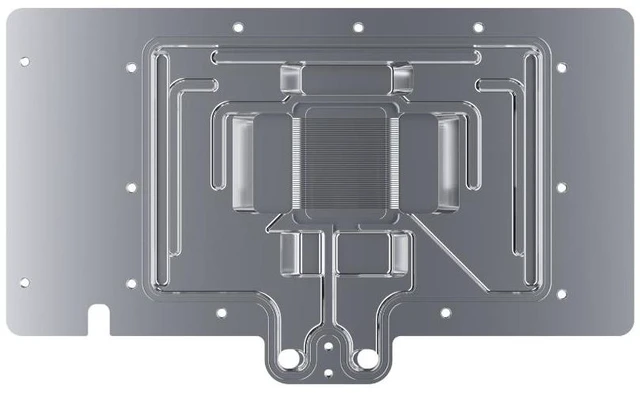

- Cold plate: Chrome-plated copper
- Top: Acrylic, transparent
- Ports: 4 x G1/4

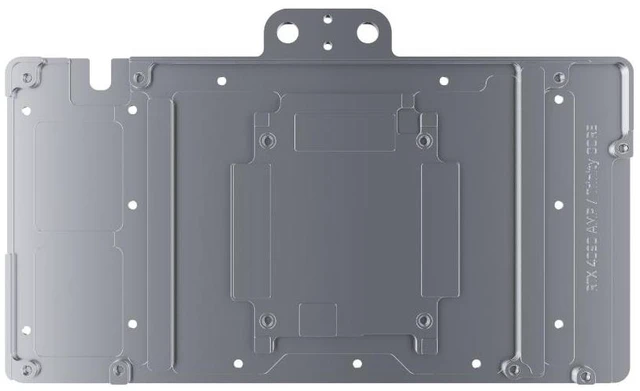

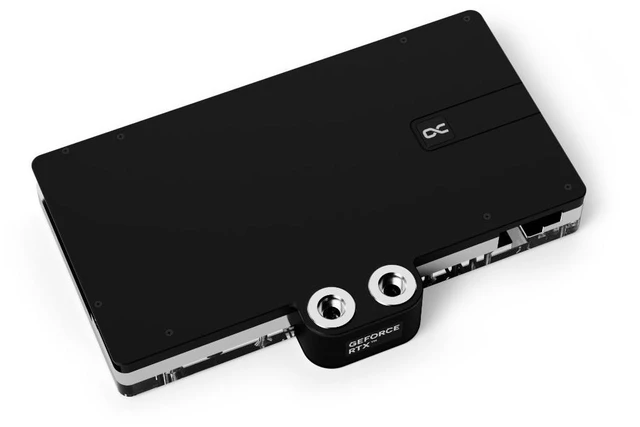

- Backplate: Aluminum, black, included

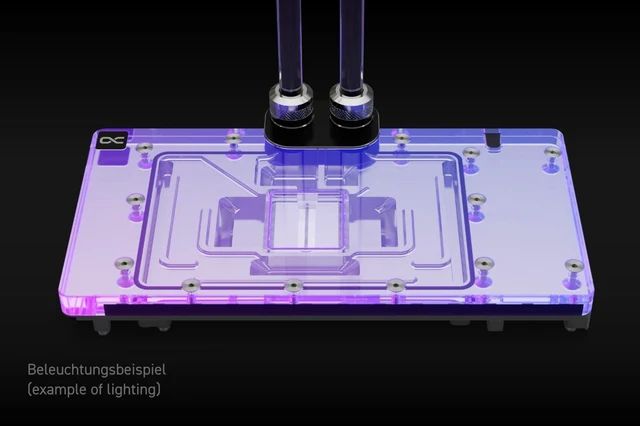

- Lighting: 13 digital aRGB LEDs, 5V
Compatibility
Alphacool lists these cards for this block:
- Manli GeForce RTX 4090 Gallardo, 24GB GDDR6X (N67540900M35300)
- Zotac Gaming GeForce RTX 4090 AMP Extreme AIRO, 24GB GDDR6X (ZT-D40900B-10P)
- Zotac Gaming GeForce RTX 4090 Trinity OC, 24GB GDDR6X (ZT-D40900J-10P)
- Zotac Gaming GeForce RTX 4090 Trinity, 24GB GDDR6X (ZT-D40900D-10P)
The block was designed for one PCB layout, and card makers sometimes revise a board so that a cooler no longer fits later models. Before ordering, compare your card and its PCB number with the pictures in Alphacool's GPU Configurator, or look it up in its Compatibility List for Nvidia cards. Alphacool's Eisblock Aurora block for the same board is the Eisblock Aurora Geforce RTX 4090 AMP.
Technical data cooler
- Dimensions (L x W x H): 235.40 x 145.90 x 32.10 mm
- Material cooler: chrome-plated copper
- Material cooler top: acrylic
- Max working temperature: 60 °C
- Pressure tested: 0.8 bar
- Threads: 4 x G1/4
- Thickness cooler bottom: 11.3 mm
- Thickness cooling fins: 0.4 mm
- Distance cooling fins: 0.4 mm
- Illumination: digital aRGB LEDs
- Power connector digital aRGB LEDs: 3-Pin JST
- Power digital aRGB LEDs: 5V
- Number of digital aRGB LEDs: 13
- Color: transparent
Technical data backplate
- Dimensions (L x W x H): 235.40 x 122.90 x 5 mm
- Material: aluminum
- Color: black
Notes
- Please note: Alphacool asks you to use the block only in conjunction with clear transparent water cooling fluids. It warns that the particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
- Remove the original cooler on an antistatic mat and clean the card of thermal paste and pad residues before you place the pads and fit the block.
In the box
- 1x Core Geforce RTX 4090 AMP Cooler
- 1x Backplate
- 2x 51x15x1mm Pad
- 1x 40x15x1mm Pad
- 5x 8x8x1mm Pad
- 1x 15x15x1mm Pad
- 1x 105x8x1mm Pad
- 1x 115x8x1mm Pad
- 1x Thermal Grease
- 1x Putty tool
- 1x Screwdriver
- 4x EVA Washer
- 4x M2x5mm Screw
- 1x 45x45x3mm GPU-Pad
- 2x 51x15x3mm Pad
- 1x 40x15x3mm Pad
- 1x 15x15x3mm Pad
- 1x 115x8x3mm Pad
- 1x 100x8x3mm Pad
- 8x M2x10mm Screw
- 1x PCI Bracket
- 1x ARGB Adapter
- 1x Plug tool
- 2x G1/4 Plug
